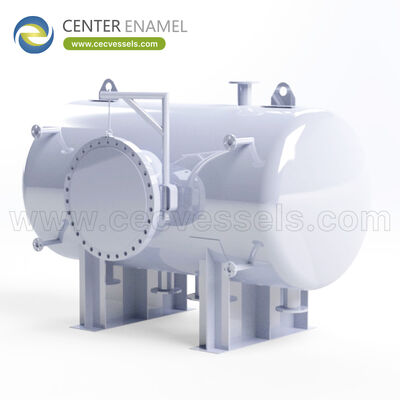

China Well Testing Separator Manufacturer Delivering Advanced Flow Evaluation And Phase Separation Solutions For Global Oilfield Operations

China Well Testing Separator Manufacturer Delivering Advanced Flow Evaluation And Phase Separation Solutions For Global Oilfield Operations

Flow Evaluation Depends On Separation Quality

Well-test conclusions (deliverability, reserve, completion quality) rest on measured oil, gas, and water rates. The well testing separator must deliver clean, stable phase streams to the meters; poor separation biases every calculation.

Operators treat separation and metering as one measurement system - improving one without the other does not improve the test.

Managing Transient Test Conditions

Tests are rarely steady: rates swing, water cut shifts, and slugs arrive. Reliable flow evaluation needs retention and level/interface control that buffer transients so meters see steady phases during the measurement window.

Where transients dominate, the specification should include expected swing so retention and control absorb it; ignoring it produces noisy, disputed data.

Data Quality And Stable Levels

Accurate evaluation needs steady liquid levels and a clean oil-water interface during metering. Short retention or poor control undermines the reading. Operators hold setpoints and verify levels before trusting the rate.

Trending measured rates against expected behavior catches separation-induced error early in the test, not after the rig leaves.

Troubleshooting Test Data Errors

When rates look wrong, check in order: separation (entrainment, level/interface), metering calibration, transient buffering, and test procedure. Most errors trace to separation or transient control, not to 'bad meter' alone.

A manufacturer should provide nozzle and access layout that lets the crew verify each stage quickly during a tight test window.

Design Features That Protect Data Quality

Features such as adequate demisting, retention for transients, controlled interface draw-off, and metering-matched nozzles are what make valid flow evaluation achievable. They are specified at design, not added after a disputed test.

Buyers who ask only for 'a test separator' and ignore data-quality features inherit questionable well conclusions.

Data Quality Factor Vs Practice

Well Test Separator Operations Parameters

Procurement, Acceptance, And Lifecycle

For a separator order, procurement starts with a complete specification: duty, stream composition, pressure and temperature, material, design code, and required inspection. A supplier who returns a written thermal or mechanical design basis - not just a price - lets the buyer compare bids on equal ground and avoids costly rework after fabrication begins.

Order quantities are flexible, with a minimum order quantity of one unit, which supports both pilot and full-scale projects. Typical fabrication and inspection lead time is approximately two months from confirmed design and material release, so the purchaser should align the milestone with the overall project schedule and freeze the specification early.

Payment is commonly handled through L/C or T/T terms, and acceptance should be defined up front: material certificates, dimensional check, hydrostatic or pneumatic test, and any market-specific documentation. Confirming the exact scope of supply and spare parts avoids ambiguity at the factory acceptance stage.

After delivery, lifecycle value depends on accessible design and clear operating limits. Request cleaning and inspection guidance, defined nozzle and access points, and the material basis so the unit can be maintained through its service life rather than replaced prematurely.

• Specification freeze: confirm duty, code, and material before fabrication to protect lead time.
• Acceptance scope: material certs, dimensional check, pressure test, and export docs.
• Commercial terms: flexible MOQ (minimum 1), L/C or T/T, ~2-month typical lead.
• Lifecycle: request inspection access and maintenance guidance at order.

Standards, Codes, And Quality Assurance

Qualified Separator supply is built on recognized pressure-equipment codes. Fabrication is routinely performed to ASME VIII Div.1 and GB/T 150, with CE / PED marking available for the European market. For hydrogen or sour service, material selection follows NACE MR0175 / ISO 15156 so the wetted path resists the specific environmental mechanism rather than relying on generic corrosion allowances.

Quality management runs to ISO 9001, and the manufacturing workflow includes material traceability from mill certificate to finished vessel, followed by hydrostatic or pneumatic testing and dimensional verification. Welding procedures and inspector qualifications are documented so the delivered unit can be audited against the stated code and project specification.

Buyers should name the exact codes and any additional standards at request-for-quotation stage. Doing so keeps marking, documentation, and acceptance aligned with the destination market and removes the most common cause of late-stage rework.

• Codes: ASME VIII Div.1 and GB/T 150; CE/PED on request.
• Material integrity: NACE MR0175 / ISO 15156 for H2 or sour service.
• Quality: ISO 9001, full material traceability, pressure testing.
• Documentation: mill certs, WPS/PQR, test and inspection records.

Conclusion

Reliable well testing separator operation delivers accurate flow evaluation through clean phase separation, steady levels, and transient buffering so meters read trustworthy rates. Troubleshoot data errors by checking separation, calibration, and transient control in order. A manufacturer should deliver inspectable, retention-sized vessels with metering-matched nozzles and the access crews need to validate well data during a tight test window.

About The Manufacturer

The manufacturer builds well testing separators to ASME VIII Div.1 and GB/T 150, with demisters, interface control, and metering-matched nozzles, plus material traceability and pressure testing. Skid and mobility options are quoted on request.

Confirm test envelope, metering concept, order quantity, lead time, and inspection scope before ordering.

Frequently Asked Questions (FAQ)

Why does separation affect flow evaluation?

Meters read each phase after separation; poor separation biases every rate calculation.

What is a well test measuring?

Oil, gas, and water rates to judge deliverability, reserves, and completion quality.

How are transients managed?

Retention and level/interface control buffer rate swings during the test window.

Why steady levels matter?

Stable liquid levels give the meters steady phases and trustworthy readings.

What is interface control for?

Keeping oil-water boundary stable so measured water cut is correct.

How do I troubleshoot bad data?

Check separation, metering calibration, transient buffering, then procedure - in order.

What causes noisy test data?

Unstable levels or poor separation during a swinging test.

What demisting does?

Catches fine mist to prevent liquid-in-gas measurement error.

What design code applies?

ASME VIII Div.1 or GB/T 150, named in the RFQ.

Why meter-matched nozzles?

So the separator delivers clean phase to the chosen meter without install gaps.

What mobility options exist?

Skid packages for moving between wells; state needs up front.

Can a bad meter be blamed alone?

Often not; separation/transient control is checked first.

What retention is needed?

Enough to buffer expected swing so metering stays steady.

How is data validated?

Trend measured rates vs expected behavior during the test.

How do I compare offers on data quality?

On retention, internals, nozzle match, and access - not size alone.
