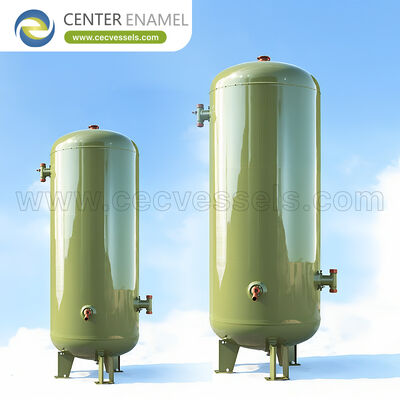

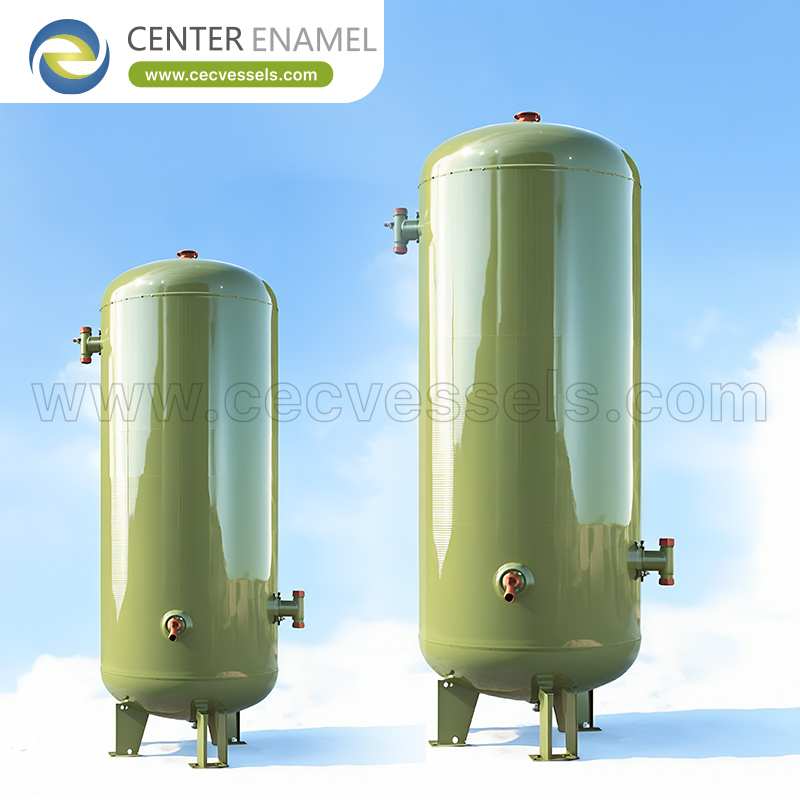

Answering the core question: What is a manufacturing plant reactor, and how does it serve plant-level production? A manufacturing plant reactor is the production vessel embedded in a plant's operations system—governed not only by chemistry but by scheduling, cleaning, and quality records. In batch manufacturing it runs campaigns of 5-200 m3 with a batch production record (BPR) per charge, CIP/SIP between products (60-90 min), and cycle times of 8-48 h; in continuous manufacturing it runs 24/7 at steady state with PAT-controlled critical quality attributes and OEE of 88-92%. The reactor is qualified, maintained, and documented so that every batch or continuous stream is reproducible, traceable, and within the master formula—the reactor is the asset the plant's entire output and quality system revolve around.

1. Core Operating Principles of a Manufacturing Plant Reactor

At plant scale, the reactor must serve operations and quality, not just reaction. Three operating principles apply:

• **Batch Records and Reproducibility:** Each batch is executed against a master formula and logged in a BPR: actual T, P, pH, charge weights, and in-process controls, with deviations investigated (target < 1% batches). The reactor's DCS enforces setpoints (±0.2°C, ±0.05 pH) and alarms; PAT (NIR, Raman) confirms endpoint. This makes the 5-200 m3 vessel behave identically charge-to-charge, the foundation of plant quality and regulatory batch release.
• **Changeover and Campaign Efficiency (SMED):** Multiproduct plants minimize non-productive time via single-minute-exchange-of-die (SMED) practices: overlapping CIP/SIP with discharge, pre-staged gaskets/charges, and standardized clean protocols (60-90 min). Longer campaigns (matched to demand) cut changeover share; a 50% SMED reduction can lift OEE from 75% to 85%. The reactor is designed for quick, validated drainability (3D rule) to enable fast turns.
• **Continuous Manufacturing and PAT:** In continuous manufacturing the reactor (PFR or CSTR-in-series) runs uninterrupted with feed-forward/feedback PAT maintaining critical quality attributes within a ± 2% window. Real-time release replaces end-of-batch testing, cutting inventory 50-70% and labor 30-50%. The reactor needs robust online analytics, long catalyst/clean life, and SIL-rated safeguards to sustain 24/7 without drift.

2. Major Manufacturing Reactor Models

Plants choose a reactor model by product portfolio and volume. Three models dominate:

• **Multi-Product Batch Reactor:** A 5-200 m3 jacketed STR in a shared plant making many products in campaigns. Most flexible (clean between in 4-8 h), it suits low-volume high-margin portfolios. Conversion 85-99%, OEE 75-85%, with BPR and CIP/SIP per product. Shared feed and utility skids keep CAPEX moderate.
• **Dedicated Continuous Reactor:** A PFR or loop reactor dedicated to one high-volume product running 24/7. Residence 0.5-24 h, OEE 88-92%, throughput 10-200 t/day. Minimal changeover, lowest unit cost, but no product flexibility; depends on long catalyst life and PAT for steady quality.
• **Modular Manufacturing Reactor:** Skid-mounted 5-50 m3 reactors reconfigurable per recipe for contract or agile manufacturing. Quick product switch (2-6 h) and built-in HAZOP/LOPA raise asset use. Modular delivery (6-9 months) also lets capacity be added in step with demand rather than in one large bet.

Manufacturing Reactor Model Comparison Matrix

Frequently Asked Questions (FAQ)

Q: When should a manufacturing plant choose batch over continuous?

A: Choose batch when the portfolio is diverse and volumes per product are modest (multiproduct fine/specialty chemicals), when frequent product switches are needed, or when campaign-based toll manufacturing is the model. Batch gives maximum flexibility at the cost of changeover time. Continuous wins only for single high-volume, stable products where 24/7 running beats flexibility.

Q: How does CIP/SIP between products affect plant output?

A: CIP/SIP (60-90 min per vessel) is non-productive time that lowers OEE. Overlapping it with discharge, pre-staging parts (SMED), and running longer campaigns shrink its share. Poorly designed drainability (dead legs) extends cleaning and risks cross-contamination; a 50% faster validated changeover can lift OEE ~10 points.

Q: What is real-time release in continuous manufacturing?

A: Real-time release uses PAT (in-line NIR/Raman, mass spec) to confirm critical quality attributes during the run, so product is released without end-of-batch lab testing. It requires a validated multivariate model, 21 CFR Part 11 data integrity, and SIL-rated controls. Benefit: 50-70% less inventory and faster customer delivery, with equal or better quality assurance.

Q: How is a manufacturing reactor qualified and maintained?

A: It is installed/operated/performance qualified (IQ/OQ/PQ) against URS, then maintained on a predictive plan: vibration monitoring on the agitator, barrier-fluid checks on double seals (API Plan 53), and periodic integrity/CIP validation. ASME code, material traceability, and fatigue assessment support a 20-30 year life; spare critical parts (seal, gearbox) are staged to protect availability.
