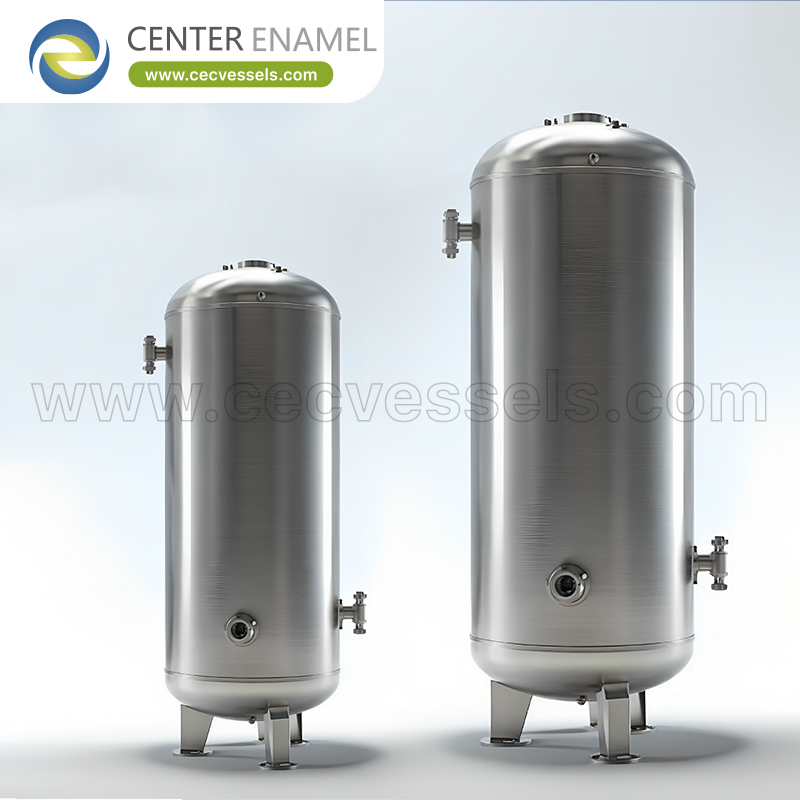

Answering the core question: What is a process reactor, and what makes it the heart of a chemical process? A process reactor is the vessel where feed streams are transformed into products by chemical reaction, characterized not by its shell but by its residence time distribution (RTD) and conversion-selectivity behavior. Engineers model it as an ideal continuous stirred-tank reactor (CSTR, perfectly backmixed, RTD exponential) or a plug-flow reactor (PFR, no backmixing, RTD a delta function), or a hybrid tanks-in-series model (N = 1-10). For a first-order reaction, the space time tau = -ln(1-X)/k (PFR) versus tau = X/((1-X)·k) (CSTR); the Damkohler number Da = k·tau links kinetics to residence. Selecting CSTR vs PFR sets conversion (80-99% vs 95-99.9%) and byproduct selectivity across residence times of 1 s to 24 h.

1. Core Principles of Process Reactor Behavior

Reactor performance is predicted from RTD and the coupling of kinetics to flow pattern. Three principles define the process reactor:

• **Residence Time Distribution (RTD):** RTD quantifies how long fluid elements spend in the vessel, measured by a pulse tracer test giving the E-curve. A CSTR has an exponential E(t) = (1/tau)·exp(-t/tau) (wide spread, short-circuiting risk); a PFR has E(t) = delta(t-tau) (uniform age). Real vessels are modeled by the tanks-in-series model with N = tau^2/sigma^2 stages (N=1 is CSTR, N->inf is PFR). Narrow RTD (high N) improves selectivity for series reactions by 20-50%.
• **Conversion and Selectivity Trade-off:** Conversion X and selectivity S are set by residence time and mixing. For a desired X, PFR volume is smallest; CSTR needs 2-10x more volume but tolerates feed swings. For consecutive A->B->C reactions, PFR gives S_B up to 30% higher than CSTR at equal X. The Damkohler number Da = k·tau flags whether the vessel is kinetically limited (Da>>1, enlarge) or mixing-limited (Da<<1, improve agitation/heat transfer).
• **Space Velocity and Intensity:** Process reactors are rated by space velocity SV = volumetric feed / reactor volume (0.5-10 h-1) or space-time tau = V/F. Higher SV (smaller vessel, more throughput) is pursued via catalysts, higher T, or intensified contact (static mixers, structured packing). Heat removal intensity (kW/m2) and kLa (for gas-liquid) are the usual ceilings on SV; exceeding them causes hot spots or mass-transfer-limited yield loss.

2. Major Process Reactor Configurations

Process reactors take forms matched to phase and duty. Three baseline configurations appear in nearly every process plant:

• **Continuous Stirred-Tank Reactor (CSTR):** An agitated vessel with exponential RTD, used for liquid-phase and slurry reactions needing backmixed thermal buffering. Single CSTR conversion 80-99% (with recycle), residence 0.5-24 h. CSTR-in-series (N=2-5) narrows RTD toward PFR, capturing most of the selectivity gain at a fraction of PFR cost. Workhorse of petrochemical and polymer processes.
• **Plug-Flow Reactor (PFR):** A tube or packed column with near-uniform residence, giving 95-99.9% single-pass conversion and the highest selectivity. Residence 1 s-2 h, SV up to 10 h-1. Fixed-bed catalytic PFRs (tube ID 20-50 mm) use boiling coolant for ±5°C isothermal operation. Preferred for gas-phase catalytic and selectivity-sensitive steps.
• **Packed-Bed / Trickle-Bed Reactor:** A vertical fixed-bed where gas and liquid cocurrent (trickle) or countercurrent flow over catalyst (1-5 mm pellets). Used in hydrotreating, hydrogenation, and biochemical fixed-bed (immobilized enzyme) processes. Liquid hourly space velocity (LHSV) 0.5-5 h-1, with catalyst life 1-5 years. Uniform wetting (≥ 95%) prevents hotspots and channeling that drop selectivity 10-20%.

Process Reactor Model Comparison Matrix

Frequently Asked Questions (FAQ)

Q: What is the practical difference between a CSTR and a PFR?

A: A CSTR is perfectly backmixed so outlet composition equals the entire vessel; a PFR has no backmixing so composition varies along its length from feed to outlet. For the same conversion, a PFR needs far less volume, and for consecutive reactions it gives higher intermediate selectivity. A CSTR is favored when feed fluctuates or the step is highly exothermic and needs thermal buffering.

Q: How is residence time distribution measured on a real reactor?

A: By a pulse or step tracer test: inject a non-reactive tracer (salt, dye, or radioactive) at the inlet and record the outlet concentration vs time. The resulting E-curve reveals mean residence time tau and variance sigma^2; tanks-in-series N = tau^2/sigma^2 approximates the real vessel. This diagnoses short-circuiting and dead zones that hurt conversion and selectivity.

Q: What does the Damkohler number tell a process engineer?

A: Da = k·tau compares reaction rate to residence time. Da << 1 means the vessel is too small / residence too short (reaction-limited, enlarge or raise T); Da >> 1 means mixing or heat/mass transfer now limits performance (improve agitation, kLa, or cooling). It is the quick test of whether a bigger reactor or better internals is the fix.

Q: When is a packed-bed trickle reactor used instead of a stirred tank?
