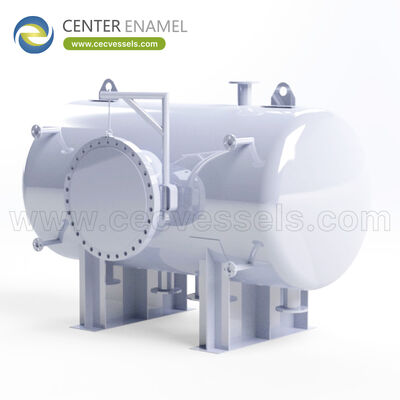

China Methanol Heat Exchanger Manufacturer Providing High-Efficiency Thermal Transfer Solutions For Chemical Processing Applications

China Methanol Heat Exchanger Manufacturer Providing High-Efficiency Thermal Transfer Solutions For Chemical Processing Applications

A methanol heat exchanger serves chemical-processing duties from distillation condensers and reboilers to reactor temperature control and product cooling. High efficiency here means transferring the required heat in the smallest reliable area without sacrificing material compatibility or cleanability.

This guide helps buyers select a methanol-duty exchanger on duty type, material, and efficiency levers, with a checklist that turns 'high-efficiency' from a slogan into a specified design.

Methanol Duty Map In Chemical Processing

Methanol plants and users run distillation columns (condensers, reboilers), reactor intercoolers/precursors, and product coolers. Methanol is a polar solvent: moderately corrosive, flammable, and sensitive to trace contamination, so material and seal choices matter as much as thermal rating.

Selection begins by naming the exact duty, because a distillation condenser and a reactor cooler have different phase, temperature, and fouling profiles.

Material Compatibility With Methanol

304 or 316L stainless steel is standard for clean methanol. Carbon steel can be acceptable for dry, non-aqueous methanol in some services but is risky where traces of water and acid form corrosive mixtures. Copper and its alloys are generally avoided.

Buyers should state methanol purity, presence of water/acids, and temperature so the manufacturer selects the alloy and confirms it resists the specific stream chemistry.

Efficiency Levers That Actually Work

Efficiency comes from the right exchanger type, adequate area, controlled velocity (too low fouls, too high erodes), and a realistic fouling allowance. High efficiency is not 'maximum area at any cost' but the right area for the duty and lifecycle.

Asking a supplier to 'maximize efficiency' without bounds produces an oversized, expensive unit. Specifying duty, fouling, and acceptable pressure drop yields the efficient design you can defend.

Reactor Vs Distillation Duty Selection

Reactor duties need tight temperature control and often see larger transients; distillation duties need stable condensing/reboiling area. The internal and control approach differs, and the specification should reflect which one you have.

Mixing the two in a single vague 'methanol exchanger' request leads to a unit tuned for the wrong transient behavior.

Specification Checklist Before RFQ

Provide stream composition and purity, duty (kW), inlet/outlet temperatures, pressure, fouling, material, code, and desired pressure drop. Request a thermal design basis and material justification.

A qualified manufacturer returns a design sized for your methanol stream, not a generic alcohol-rated unit.

Methanol Duty And Selection Focus

Methanol Exchanger Selection Parameters

Procurement, Acceptance, And Lifecycle

For a heat exchanger order, procurement starts with a complete specification: duty, stream composition, pressure and temperature, material, design code, and required inspection. A supplier who returns a written thermal or mechanical design basis - not just a price - lets the buyer compare bids on equal ground and avoids costly rework after fabrication begins.

Order quantities are flexible, with a minimum order quantity of one unit, which supports both pilot and full-scale projects. Typical fabrication and inspection lead time is approximately two months from confirmed design and material release, so the purchaser should align the milestone with the overall project schedule and freeze the specification early.

Payment is commonly handled through L/C or T/T terms, and acceptance should be defined up front: material certificates, dimensional check, hydrostatic or pneumatic test, and any market-specific documentation. Confirming the exact scope of supply and spare parts avoids ambiguity at the factory acceptance stage.

After delivery, lifecycle value depends on accessible design and clear operating limits. Request cleaning and inspection guidance, defined nozzle and access points, and the material basis so the unit can be maintained through its service life rather than replaced prematurely.

• Specification freeze: confirm duty, code, and material before fabrication to protect lead time.
• Acceptance scope: material certs, dimensional check, pressure test, and export docs.
• Commercial terms: flexible MOQ (minimum 1), L/C or T/T, ~2-month typical lead.
• Lifecycle: request inspection access and maintenance guidance at order.

Standards, Codes, And Quality Assurance

Qualified Heat Exchanger supply is built on recognized pressure-equipment codes. Fabrication is routinely performed to ASME VIII Div.1 and GB/T 150, with CE / PED marking available for the European market. For hydrogen or sour service, material selection follows NACE MR0175 / ISO 15156 so the wetted path resists the specific environmental mechanism rather than relying on generic corrosion allowances.

Quality management runs to ISO 9001, and the manufacturing workflow includes material traceability from mill certificate to finished vessel, followed by hydrostatic or pneumatic testing and dimensional verification. Welding procedures and inspector qualifications are documented so the delivered unit can be audited against the stated code and project specification.

Buyers should name the exact codes and any additional standards at request-for-quotation stage. Doing so keeps marking, documentation, and acceptance aligned with the destination market and removes the most common cause of late-stage rework.

• Codes: ASME VIII Div.1 and GB/T 150; CE/PED on request.
• Material integrity: NACE MR0175 / ISO 15156 for H2 or sour service.
• Quality: ISO 9001, full material traceability, pressure testing.
• Documentation: mill certs, WPS/PQR, test and inspection records.

Conclusion

A high-efficiency methanol heat exchanger is selected on duty, material compatibility, and controlled velocity with a realistic fouling allowance - not on a vague 'maximize efficiency' request. Use 304/316L for clean methanol, avoid copper, separate reactor-transient from distillation-stable duties, and request a thermal design basis. A manufacturer should return a design sized for your methanol stream and code.

About The Manufacturer

The manufacturer builds methanol and chemical-duty exchangers in 304/316L stainless under ASME VIII Div.1 and GB/T 150, with material traceability, hydrostatic testing, and copper-free construction on request.

Confirm composition, purity, order quantity, lead time, inspection scope, and any market-specific standards before ordering.

Frequently Asked Questions (FAQ)

What is a methanol heat exchanger used for?

Distillation condensers/reboilers, reactor temperature control, and product cooling in methanol chemical processing.

Which material is compatible with methanol?

304 or 316L stainless is standard; copper alloys are generally avoided; carbon steel is risky with water/acid traces.

Why avoid copper in methanol service?

Copper and its alloys can be attacked and contaminate the product; stainless is the safer default.

How is methanol exchanger efficiency defined?

Transferring the required heat in the right area with controlled velocity and a realistic fouling allowance over the cycle.

What is the risk of 'maximize efficiency'?

It yields an oversized, costly unit; specifying duty and fouling gives a defensible efficient design.

How does reactor duty differ from distillation?

Reactor duty needs tight transient temperature control; distillation needs stable condensing/reboiling area.

What fouling allowance should I use?

From your stream history; under-specifying fouling degrades cycle performance.

What design code applies?

ASME VIII Div.1 or GB/T 150, named in the RFQ for correct marking.

Should I request a thermal design basis?

Yes - it proves sizing for your methanol composition, not a generic alcohol rating.

What pressure drop should I specify?

The maximum acceptable; it bounds velocity and hence fouling/erosion and area.

Is carbon steel ever acceptable?

Only for dry, non-aqueous methanol in some services; water/acid traces make it risky.

What is a methanol distillation condenser?

It condenses methanol-rich vapor from the column; condensing area and fouling control are key.

How do I keep transfer reliable?

Specify material, fouling, cleaning access, and a fouled-condition design basis.

What inspection should I require?

Hydrostatic test, material certs, and any market-required documentation.

How do I compare methanol bids?

On duty, material, fouling, code, and inspection - not price alone.
