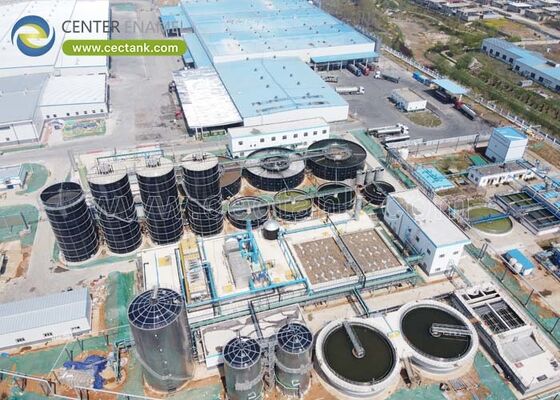

Water Treatment Storage Tanks: Types, Materials, and Selection

Water treatment storage tanks buffer raw, process, and finished water so a plant can ride through flow swings, treatment pauses, and demand peaks. The right material prevents contamination and corrosion for decades. Engineered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel), a Glass-Fused-to-Steel (GFS) water tank pairs an inert vitreous enamel with bolted steel to resist both potable and waste streams without a painted lining.

What a Water Treatment Storage Tank Does

A water treatment storage tank holds liquid at a defined stage of the treatment train, from equalization of incoming sewage to clarified effluent and potable water. The tank must keep the water isolated from the environment and from the structure itself, which is why the internal surface and the joint system matter as much as the shell volume.

• Equalization: Absorbs peak flows so downstream units run at steady load.
• Clarification: Holds settled or flocculated water before filtration.
• Potable: Stores finished water under cover to protect quality.
• Buffer: Decouples treatment rate from demand or discharge limits.

Key Characteristics, Components, and Types

Treatment tanks vary by process stage and by material. Glass-Fused-to-Steel (GFS) bolted tanks suit corrosive and modular duty; welded steel fits very large volumes; concrete is used for heavy civil works; and concrete or steel clarifiers are shaped for settling. Each carries its own roof, nozzle, and access configuration.

• Materials: GFS, welded steel, concrete, and FRP each trade cost against corrosion resistance.
• Roofs: Fixed cone, aluminum geodesic dome, or open with railing per code.
• Internals: Baffles, launders, and mixers set the hydraulic behavior.
• Linings: GFS enamel or a certified coating protects the shell from the stream.

Applications and Operating Conditions

Water treatment storage tanks appear at municipal plants, industrial process lines, and remote camps. They hold raw sewage, equalized industrial effluent, clarified water, backwash water, and potable reserve. Potable duty triggers NSF/ANSI 61 or WRAS contact approval, while waste duty demands resistance to pH swings and hydrogen sulfide.

• Municipal: Equalization, aeration, clarification, and contact storage.
• Industrial: Process water, cooling blowdown, and treated effluent.
• Potable: Finished-water reserve under NSF/ANSI 61 or WRAS approval.
• Climate: Freeboard and insulation handle freeze and heat loss.

Technical Considerations

Sizing follows the treatment process: equalization volume from peak-to-average flow, retention of 20-40 days only where biological, and surge volume from pump and demand curves. The shell is rated to AWWA D103-09 for bolted or API 650 for welded, with the coating chosen for the specific chemistry of the water it holds.

• Chemistry: pH, chlorides, and H2S decide the lining and the steel grade.
• Standards: AWWA D103-09 bolted, API 650 welded, NSF/ANSI 61 for contact.
• Retention: Equalization hours, not days, for most process tanks.
• Access: Manways, ladders, and sampling nozzles per operator need.

Advantages and Limitations

Glass-Fused-to-Steel (GFS) tanks resist a wide pH band and need little repainting, which lowers life-cycle cost. A limitation is that very large single volumes above roughly 40,000 m3 are more economically built welded; for those duties a GFS bolted tank is best used in modular banks rather than as one giant shell.

• Advantage: Inert enamel survives pH swings and H2S better than paint.
• Advantage: Bolted build is fast and re-locatable.
• Limitation: Single-shell ceiling near 40,000 m3; larger needs welded or multiple.
• Limitation: Potable use needs a documented NSF/ANSI 61 or WRAS coating.

Design Parameters

These are the values a specifier should see quoted per tank. They confirm the structure, the surface system, and the joints before fabrication, and they are the basis for the hydrostatic test and the inspection record that follows.

Comparison and Selection Guide

Choose the tank material from the water chemistry and the volume. Glass-Fused-to-Steel (GFS) leads for corrosive or modular duty; welded steel leads for very large single volumes; concrete suits permanent heavy civil works. The table summarizes the trade for a typical plant.

Best Practices: How to Choose

Start from the stream chemistry, then confirm the contact approval for potable duty and the coating proof for waste duty. Require a 1500 V holiday test and a DFT log for any enamel tank. Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) supplies the calculation, the coating certificate, and the inspection file so the tank passes both audit and operation.

• Step 1: Define the stream chemistry and the duty (potable vs waste).
• Step 2: Confirm contact approval or coating proof as applicable.
• Step 3: Require holiday test at 1500 V and DFT of 0.25-0.40 mm.
• Step 4: Check the inspection package and the reference plant.

Water treatment storage tanks are selected by what they hold, not by a single preferred shape. Lead with chemistry and volume, demand the coating and code proof, and the tank will stay clean and tight for its 30-50 year design life instead of becoming a maintenance liability.

Frequently Asked Questions (FAQ)

What are the main types of water treatment storage tanks?

They are grouped by material (GFS bolted, welded steel, concrete, FRP) and by process stage (equalization, aeration, clarification, potable reserve). The material is chosen from the water chemistry and the required volume.

Which tank is best for potable water?

A tank with a lining certified to NSF/ANSI 61 or WRAS for contact, built to AWWA D103-09 (bolted) or API 650 (welded). GFS is a strong option because the enamel is inert and needs no repainting.

How does a GFS tank resist corrosion?

A vitreous enamel is fused at 820-930°C onto the steel, forming a non-porous, inert surface that resists pH swings and hydrogen sulfide far better than a painted coating.

What capacity can a bolted water tank reach?

A single Glass-Fused-to-Steel (GFS) tank spans about 20-60,000 m3; larger duty is met with multiple tanks or with welded construction above that ceiling.

What standard applies to bolted water tanks?

AWWA D103-09 for the bolted shell, supported by ISO 28765 for the enamel system and, for potable contact, NSF/ANSI 61 or WRAS.

Can the tank be relocated later?

Bolted GFS tanks are modular and can be disassembled and re-erected at a new site, which welded or concrete tanks cannot do economically.
