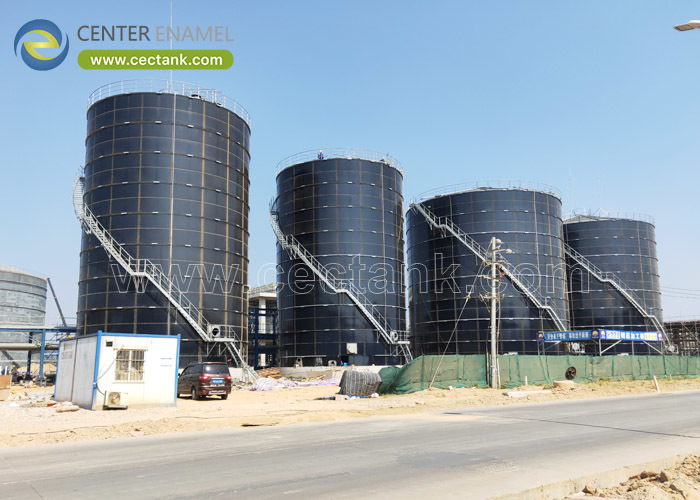

Good Quality Glass-Lined Steel Biogas Tank: Gas-Tightness and Safety

A good quality glass lined steel biogas tank holds both corrosive digestate and flammable biogas, so quality means gas-tightness as much as structural strength. The Glass-Fused-to-Steel (GFS) enamel fused at 820-930°C must be flawless, and every joint must seal. Engineered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel), these bolted digesters are built so the gas stays in and the hazard stays controlled.

What a Quality Glass-Lined Biogas Tank Is

A good quality glass lined steel biogas tank is an anaerobic digester whose shell is Glass-Fused-to-Steel (GFS) with a verified, pore-free enamel and gasketed, torqued joints that hold biogas at 5-30 mbar. Quality here is measured by gas-tightness and by the integrity of the surface that touches both digestate and methane.

• Gas: Holds 5-30 mbar biogas safely.
• Surface: Pore-free enamel, 1500 V tested.
• Joints: Gasketed, torqued to spec.
• Fuel: Methane 55-65% is flammable.

Key Characteristics of a Quality Build

Quality biogas tanks share traits: a 0.25-0.40 mm enamel DFT with no holiday (tested at 1500 V), 8.8-grade bolts at controlled torque, service-rated gaskets, and a sealed roof with a pressure-relief path. These details are what keep methane in and keep the plant within its safety envelope.

• Enamel: 0.25-0.40 mm, 1500 V clean.
• Bolts: 8.8-grade, torque-controlled.
• Gaskets: Rated for biogas service.
• Roof: Sealed with relief path.

Applications and Operating Conditions

Quality GFS biogas tanks serve municipal sludge, agricultural manure, and food-waste digestion, running at 35-38°C with 20-40 day retention and producing biogas of 55-65% methane. They operate continuously and must stay gas-tight through thermal cycles and fill-draw without leaking flammable gas.

• Feeds: Sludge, manure, food waste.
• Temp: Mesophilic 35-38°C.
• Retention: 20-40 days.
• Gas: 55-65% methane, 5-30 mbar.

Technical Considerations

Gas-tightness starts at the factory with a clean 1500 V holiday test and continues on site with controlled bolt torque and gasket seating before a 1.25x hydrotest. The shell is calculated to AWWA D103-09 and ISO 28765; pressure relief is sized for the 5-30 mbar operating band plus a safe over-pressure path.

• Factory: 1500 V holiday test, clean.
• Site: Torque, gasket, hydrotest 1.25x.
• Standards: D103-09 shell, ISO 28765 enamel.
• Safety: Pressure relief sized to band.

Advantages and Limitations

A quality GFS biogas tank is inert to digestate and gas-tight by construction, which protects both the asset and the permit. A limitation is that gas-tightness depends on the gaskets and torque being maintained; this boundary must be checked in the operating plan, because a relaxed bolt or aged gasket is the usual leak path, not the steel.

• Advantage: Inert, gas-tight by build.
• Advantage: 30-50 year life with care.
• Limitation: Gaskets and torque need upkeep.
• Limitation: Aged seal is the usual leak path.

Design Parameters

These values define a quality GFS biogas tank. They let the operator confirm the shell, the surface, and the gas path before build, and they are the checkpoints that keep methane contained and the plant safe.

Comparison and Selection Guide

Against painted steel and concrete, a quality Glass-Fused-to-Steel (GFS) biogas tank leads on gas-tightness and corrosion resistance for the 500-40,000 m3 range. The table maps the options to biogas duty so the buyer can see where quality lives.

Best Practices: How to Assure Quality

Require the ISO 28765 calculation, the 1500 V holiday-test report, the bolt-torque log, and the gas-tightness test before acceptance. Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) issues all of these with the tank so gas-tightness is proven, not promised, before the digester goes live.

• Require: ISO 28765 calc, 1500 V report.
• Check: Bolt-torque and gasket logs.
• Test: Gas-tightness before acceptance.
• Verify: DFT 0.25-0.40 mm per panel.

A good quality glass lined steel biogas tank is gas-tight by construction and inert by coating. Demand the 1500 V test, the torque log, and the gas-tightness proof, and the digester will hold its methane safely for its 30-50 year design life.

Frequently Asked Questions (FAQ)

What makes a biogas tank gas-tight?

A pore-free Glass-Fused-to-Steel (GFS) enamel (holiday-tested at 1500 V) plus gasketed, torque-controlled joints that hold biogas at 5-30 mbar without leaking.

Why does gas-tightness matter for biogas?

Biogas is 55-65% flammable methane, so any leak is both a loss of energy and a safety and permit risk; the tank must contain it through thermal and fill-draw cycles.

What standard governs the GFS biogas shell?

AWWA D103-09 for the bolted shell and ISO 28765 for the enamel system, with materials and welding controlled under ISO 9001 and ISO 45001.

What capacity can a quality GFS biogas tank reach?

A single Glass-Fused-to-Steel (GFS) digester spans about 500-40,000 m3; larger duty uses multiple tanks.

How is quality verified before acceptance?

By the 1500 V holiday test, the bolt-torque log, the DFT record at 0.25-0.40 mm, and an on-site gas-tightness test before the tank is commissioned.

Can the tank be customized for my feed?

Yes. Mixers, roof, gas holder, and nozzles are matched to feedstock and climate, with drawings and an inspection package issued per tank.
