Enamel Anaerobic Digestion Tanks: How to Choose a GFS Provider

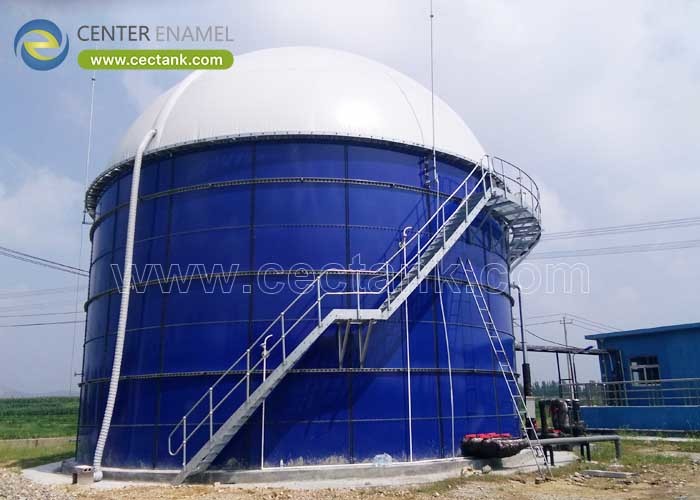

An enamel anaerobic digestion tank stores and treats organic feedstock without oxygen while capturing biogas that is 55-65% methane. Choosing the right provider decides whether the digester stays gas-tight and permitted for 30 years. Engineered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel), a Glass-Fused-to-Steel (GFS) anaerobic digester pairs a vitreous enamel coating with bolted steel structure for fast, corrosion-resistant installation.

What an Enamel Anaerobic Digestion Tank Is

An enamel anaerobic digestion tank is a sealed reactor that breaks down organic matter in the absence of oxygen, capturing the biogas it produces. The enamel refers to a Glass-Fused-to-Steel (GFS) vitreous coating fused at 820-930°C onto 0.3 mm-plus steel plates, giving the shell a non-porous, inert surface that survives 20-40 day hydraulic retention and aggressive digestate without blistering.

• Process: Feedstock is held at 35-38°C (mesophilic) or 50-55°C (thermophilic) while microbes convert organics to biogas.
• Enamel role: The vitreous layer resists the acidic, abrasive digestate better than painted steel.
• Structure: Bolted panels with 8.8-grade fasteners allow erection without on-site welding.
• Output: Biogas at 5-30 mbar is collected under a fixed or floating gas holder.

Key Characteristics, Components, and Types

A complete enamel anaerobic digestion tank combines a coated shell, a sealed roof, a mixing system, and a gas collection path. Common types are the continuously stirred tank reactor (CSTR) for uniform slurry, the upflow anaerobic sludge blanket for high-strength wastewater, and the plug-flow design for fibrous feedstocks such as manure or food waste.

• Shell: GFS panels to 40,000 m3 in a single tank, with the enamel holiday-tested at 1500 V.
• Roof: Fixed cone, aluminum geodesic dome, or double-membrane gas holder depending on gas storage need.
• Mixing: Side-entry, submersible, or draft-tube mixers keep solids in suspension at 5-15 W/m3.
• Gas path: Manifolds and a pressure relief line sized for 5-30 mbar operation.

Applications and Operating Conditions

Enamel anaerobic digestion tanks serve municipal sewage sludge, agricultural manure, food and beverage waste, and industrial effluent with high organic load. They run continuously, tolerate seasonal feed swings, and convert waste to energy on site, which is why they appear at water resource recovery facilities and at farms aiming to cut both odor and grid power use.

• Municipal: Sludge digestion with biogas reused for heat and power at the plant.
• Agricultural: Manure and silage leachate treatment with nutrient recovery.
• Industrial: Food-processing wastewater with BOD/COD reduction before discharge.
• Climate note: Heating duty rises in cold regions; insulation is specified accordingly.

Technical Considerations

Sizing starts from feed volume and volatile solids, then sets hydraulic retention at 20-40 days and the operating temperature at 35-38°C. Gas composition of 55-65% methane sets the holder volume, while the 5-30 mbar pressure band drives roof and seal selection. All welds and bolts are verified to AWWA D103-09 and ISO 28765 before the tank is filled.

• Retention: 20-40 days HRT keeps digestion stable and gas yield predictable.
• Temperature: Mesophilic 35-38°C is the default; thermophilic raises gas rate but needs more heat.
• Gas: 55-65% methane with trace H2S managed by desulfurization.
• Standards: AWWA D103-09 and ISO 28765 govern the bolted GFS shell.

Advantages and Limitations

The enamel coating gives a digestion tank a near-inert interior that resists acid and abrasion far better than painted steel, and bolted erection is fast. A real limitation is that GFS is not suitable for feedstock with pH below 5.5 unless a pH-correction step is added; this boundary must be checked during process design, not after the tank is built.

• Advantage: Inert enamel resists digestate corrosion for a 30-50 year design life.
• Advantage: Bolted build avoids long on-site welding and shortens commissioning.
• Limitation: Very low pH or high abrasives need process or coating changes.
• Limitation: Single-tank ceiling near 40,000 m3; larger duty splits into multiple tanks.

Design Parameters

The figures below are the load-bearing values a provider should quote per tank. They let an engineer confirm the shell, coating, and joint system before steel is ordered, and they are the numbers an insurer and a regulator will ask for during review.

Comparison and Selection Guide

Against welded steel, concrete, and fiberglass-reinforced plastic, a Glass-Fused-to-Steel (GFS) anaerobic digester wins on corrosion resistance and build speed for the 500-40,000 m3 range. Use the table to match the material to feed corrosivity, site logistics, and required life.

Best Practices: How to Choose a Provider

Shortlist a provider on documented evidence, not brochure claims. Require ISO 28765 calculation, a 1500 V holiday-test report, and a coating-thickness log per tank, plus references from digesters of similar size and feedstock. Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) issues drawings, NDE records, and an inspection package per tank so the design story survives audit.

• Ask for: ISO 28765 shell calculation and AWWA D103-09 compliance letter.
• Verify: Holiday test at 1500 V and enamel DFT of 0.25-0.40 mm.
• Confirm: Mixer, roof, and gas-holder scope are in the single supply.
• Reference: A digester of comparable volume and feedstock, still in service.

An enamel anaerobic digestion tank is a structural calculation, a Glass-Fused-to-Steel (GFS) coating system, and an inspection record that must hold for 30 years. Choose a provider who can show the coating proof, the code calculation, and a comparable operating reference rather than one who only promises the lowest price.

Frequently Asked Questions (FAQ)

What is an enamel anaerobic digestion tank used for?

It treats organic waste without oxygen and captures the biogas produced, typically 55-65% methane, for heat or power. Municipal sludge, agricultural manure, and food-processing wastewater are the main feeds.

Which standard governs a GFS anaerobic digester?

The bolted shell is designed to AWWA D103-09 and ISO 28765, with materials and welding controlled under ISO 9001 and ISO 45001. Local codes and the biogas permit then confirm the choice.

How is the enamel coating verified?

Plate is blasted to Sa 2.5, the enamel is fused at 820-930°C, and the finished surface is holiday-tested at 1500 V across every square meter before shipment.

Can an enamel digester handle low-pH feedstock?

GFS resists acid well, but feedstock below pH 5.5 should be corrected before entering the tank. Confirm the pH range and any abrasive content with the provider during design.

What capacity can one tank reach?

A single Glass-Fused-to-Steel (GFS) tank spans roughly 500-40,000 m3; larger duty is met with multiple tanks rather than one oversized shell.

Can the tank be customized for my site?

Yes. Roof type, mixers, nozzles, gas holder, and instrumentation are matched to throughput, climate, and code. Drawings and an inspection package are issued per tank.
