Quality GFS Wastewater Tank: What Defines a Reliable Bolted Tank

A quality GFS wastewater tank is defined less by its price than by the evidence behind it: a documented ISO 28765 calculation, a verified enamel, and a complete inspection file. The Glass-Fused-to-Steel (GFS) coating must survive pH swings and abrasives for decades. Engineered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel), these bolted tanks are built so the quality is provable, not claimed.

What Defines a Quality GFS Wastewater Tank

A quality GFS wastewater tank meets three tests: the shell is calculated to ISO 28765 and AWWA D103-09, the enamel is fused at 820-930°C and holiday-tested at 1500 V, and every tank ships with a traceable inspection file. Quality is the sum of those proofs, not the thickness of the sales brochure.

· Calculation: ISO 28765 shell, AWWA D103-09 bolted.

· Coating: Fused 820-930°C, tested 1500 V.

· Records: Per-tank, traceable inspection file.

· Result: 30-50 year design life, proven.

Key Characteristics of a Reliable Build

Reliable GFS tanks share traits: Sa 2.5 surface prep before firing, 0.25-0.40 mm enamel DFT controlled per panel, 8.8-grade bolts torqued to spec, and gaskets rated for the service. These details are what separate a tank that lasts from one that weeps at a seam five years in.

· Prep: Sa 2.5 blast before enamel firing.

· DFT: 0.25-0.40 mm, panel-controlled.

· Joints: 8.8 bolts, gaskets per service.

· Control: Per-panel records, not batch only.

Applications and Operating Conditions

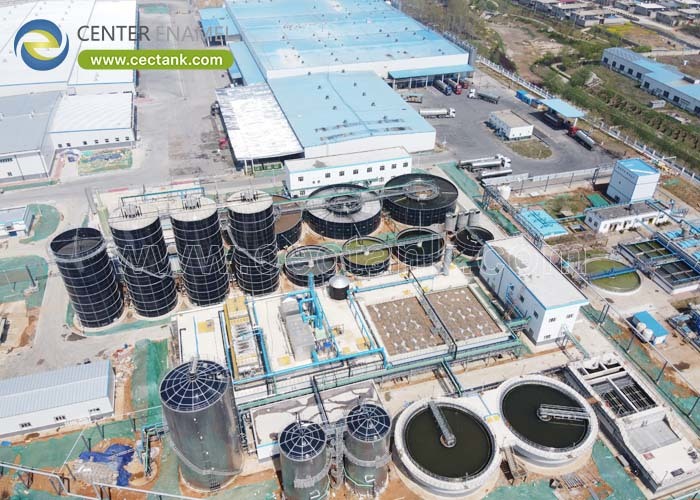

Quality GFS wastewater tanks hold equalization, aeration, clarification, and sludge at municipal and industrial plants. They see pH from acidic to alkaline, grit, and biological films, so the verified enamel and the sealed joints are what keep the tank tight through decades of cyclic loading.

· Municipal: EQ, aeration, clarification, sludge.

· Industrial: Effluent with variable chemistry.

· Loads: Fill-draw cycles and thermal change.

· Demand: Tightness through 30-50 years.

Technical Considerations

Verification starts at the factory: mill certificates for plate, the ISO 28765 shell calculation, the enamel frit record, and the 1500 V holiday test. On site, bolt torque and gasket seating are checked before hydrotest to 1.25x design head. The shell is rated to AWWA D103-09 and the coating to ISO 28765.

· Factory: Mill cert, calc, frit, holiday test.

· Site: Torque, gasket, hydrotest 1.25x.

· Standards: D103-09 shell, ISO 28765 coating.

· Proof: Records travel with the tank.

Advantages and Limitations

A quality GFS tank gives a long, low-maintenance life because the coating and the joints are proven, not assumed. The limitation is that quality costs more up front and depends on the buyer demanding the proofs; if the inspection file is skipped to save price, the tank loses the very thing that made it quality.

· Advantage: Proven coating and joints, long life.

· Advantage: Low maintenance over decades.

· Limitation: Higher front cost than undocumented builds.

· Limitation: Quality depends on buyer requiring proof.

Design Parameters

These are the values a quality GFS wastewater tank should quote. They are the checkpoints a buyer uses to confirm the shell, the coating, and the joints before paying, and they form the inspection file that follows the tank into service.

Comparison and Selection Guide

Against undocumented or painted builds, a quality GFS tank is distinguished by its proofs, not its looks. The table contrasts what a verified build delivers versus a minimal one so the buyer can see where quality lives.

Best Practices: How to Verify Quality

Before purchase, require the ISO 28765 calculation, the AWWA D103-09 letter, the 1500 V holiday-test report, and the per-tank DFT and torque logs. Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) issues all of these with the tank so quality is auditable from day one, not discovered at failure.

· Require: ISO 28765 calc and D103-09 letter.

· Verify: 1500 V holiday test, DFT 0.25-0.40 mm.

· Check: Bolt torque and gasket logs.

· Insist: Per-tank, not batch-only, records.

A quality GFS wastewater tank is the one you can prove. Demand the ISO 28765 calculation, the 1500 V holiday test, and the per-tank inspection file, and the tank will deliver its 30-50 year life instead of becoming a warranty dispute five years in.

Frequently Asked Questions (FAQ)

What makes a GFS wastewater tank high quality?

A documented ISO 28765 shell calculation, an enamel fused at 820-930°C and holiday-tested at 1500 V, and a complete per-tank inspection file - not just a stated coating thickness.

What standard proves the GFS shell?

ISO 28765 for the enamel system and AWWA D103-09 for the bolted shell, supported by ISO 9001 and ISO 45001 control of materials and welding.

How is coating quality verified?

By a 1500 V holiday test across every square meter and a DFT log of 0.25-0.40 mm per panel, backed by the enamel frit record.

What capacity can a quality GFS tank reach?

A single Glass-Fused-to-Steel (GFS) tank spans about 200-60,000 m3; larger duty uses multiple tanks.

Does quality cost more up front?

Usually yes, because of the testing and records, but it removes the early failures and recoating that erase the saving on a cheaper, undocumented build.

What records should travel with the tank?

Mill certificates, the shell calculation, the holiday-test and DFT reports, bolt-torque logs, and the hydrotest certificate, compiled per tank.
