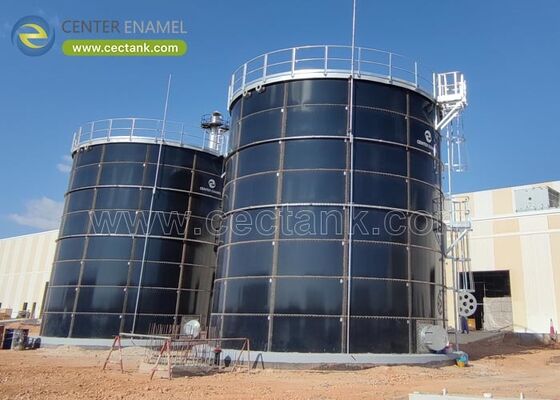

Fire Water Tank: Sizing, Codes and the Details That Decide Whether It Works

A fire water tank is the least used asset on most sites and the one with the least tolerance for failure. It sits full for years, is inspected on a schedule, and is expected to deliver its full volume on a single day with no warning and no second chance. That combination makes it a deceptively difficult specification. Buyers who size it by rule of thumb usually discover the shortfall during an insurer review or a hazard analysis, by which point the foundation has been poured and the volume is fixed.

The engineering question is not how much water the site can store, but how much it can store and still deliver. Those are different numbers, and the gap between them is where most fire water systems underperform. Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) supplies bolted steel fire water tanks engineered to AWWA D103-09 and configured to NFPA 22 and NFPA 25 requirements, with dedicated reserve arrangements, freeze protection and full documentation for insurer and authority review.

1. How Is a Fire Water Tank Sized?

Fire water volume is set by the largest single credible demand multiplied by the duration that demand must be sustained, not by site area or by a multiple of daily process water. Start from the hazard and work forward.

• Demand Rate: The design flow is fixed by the suppression system - sprinkler density plus hose stream allowance, or fixed monitor and foam system flow. Take it from the system design, not from a table of typical figures.
• Duration: NFPA 22 treats duration as a function of hazard classification. Light hazard may require two hours, ordinary hazard three, and extra hazard or foam systems considerably more.
• Largest Single Risk: If several buildings share a supply, size for the worst single event rather than the sum of all events, unless the authority having jurisdiction requires otherwise.
• Simultaneous Uses: Any fire pump cooling water, generator cooling or process demand drawn from the same tank during an incident must be added to the fire volume, not taken from it.
• Effective versus Nominal Volume: The suction cannot draw the bottom of the tank. Volume below the outlet, above the overflow, and trapped by vortex limitations is stored water that cannot be delivered.

2. Which Standards Apply and What Do They Actually Require?

NFPA 22 governs the tank, AWWA D103-09 the bolted steel tank structure, NFPA 25 the ongoing inspection and testing regime, and FM Global or the insurer's own data sheets may add approval and arrangement requirements. They address different questions and all apply.

• NFPA 22: Covers capacity, filling rates, suction arrangement, freezing protection, and the requirement that fire protection water be protected from depletion by other uses.
• AWWA D103-09: The bolted steel tank standard. It sets shell plate thickness, bolt grade, coating and foundation requirements for the vessel itself.
• NFPA 25: The inspection, testing and maintenance standard. A tank that cannot be inspected to NFPA 25 will eventually fail an audit regardless of how it was built.
• FM Global and Insurer Data Sheets: Where the site is insured through a loss prevention scheme, arrangement, approval status and seismic or wind provisions may be conditions of cover.
• Local Authority Review: Fire authorities frequently impose higher durations or additional hose allowances. Confirm the local requirement before the tank is sized, not after.

3. What Detail Decides Whether the Water Is Available on the Day?

Most fire water failures are not structural. They are a tank shared with process draw, a frozen riser, a suction that vortices, or water that has stagnated into a biological problem. These are specification items, and they are cheap to get right and expensive to retrofit.

• Dedicated Reserve: Fire water must be protected from depletion. Where a tank serves both duties, a permanently piped reserve - a dedicated suction leg or a standpipe set above the process outlet - is the accepted arrangement.
• Suction Arrangement: A vortex breaker and correct suction submergence prevent air entrainment, which can destroy pump performance at the moment it matters most.
• Freeze Protection: In freezing climates the tank, the riser and the exposed piping all need protection. Insulation alone does not cover a static riser with no heat input.
• Water Quality and Stagnation: Stored water grows biofilm and can corrode the tank from inside. Material selection, coating and where relevant recirculation or treatment keep the water and the vessel stable.
• Access for Inspection: NFPA 25 requires periodic internal and external inspection. Ladders, platforms, manways and drain capability should be designed in from the start.

Engineering Assurance and Project Support

Every tank delivered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) is engineered against AWWA D103-09 and EN 1090 with finite element verification of shell, roof and nozzle loads, fused at 820-930°C under ISO 9001 and ISO 45001 control, holiday tested at 1500 V across one hundred percent of the surface, and assembled with Grade 8.8 bolts and manufacturer-certified sealant. Fire water tanks are engineered to AWWA D103-09 and configured to NFPA 22, with shell courses, coating systems and roof options selected for the climate and hazard, and supplied with dedicated reserve arrangements, vortex breakers, anti-freeze provisions, NFPA 25 inspection access, seismic and wind design, and a documentation package for authority and insurer review.

"A fire water tank is judged once, on the worst day of the site's life, and only the volume it can actually deliver counts on that day."

Frequently Asked Questions (FAQ)

How do I calculate the required fire water tank volume?

Establish the design flow from the suppression system - sprinkler density plus hose streams, or fixed monitor and foam flow - then multiply by the duration appropriate to the hazard classification under NFPA 22. Add any simultaneous process or cooling demand, and confirm the result against the local authority, which may require more than the standard minimum.

Can a fire water tank also supply process or irrigation water?

Yes, but the fire volume must be protected from depletion. The accepted arrangement is a permanently piped reserve: either a separate fire suction leg or a standpipe that fixes the level below which process draw cannot go. An administrative promise not to drain the tank is not accepted practice.

How is freezing prevented in a fire water tank?

Protection has to cover the whole system. That means tank insulation where the climate requires it, an insulated and heat-traced riser, protected exposed piping, and in some installations a circulation or heating arrangement that keeps static water from freezing. Insulating the tank alone leaves the riser as the failure point.

Can a fire water tank be customized to our hazard and climate?

Yes. Volume, shell thickness, coating, roof type, freeze protection, suction arrangement, level indication and inspection access are all configured to the hazard classification, the local authority requirement and the site climate, and the drawings are issued for authority and insurer review before manufacture.

Key Takeaways

• Size from the largest single credible demand and its duration, not from site area or rules of thumb.
• The deliverable volume is smaller than the nominal volume - design the suction and reserve around what the pump can actually draw.
• Shared service is acceptable only with a permanently piped reserve that process draw cannot defeat.
• NFPA 25 inspection access and freeze protection are design items; retrofitting them costs far more than including them.
