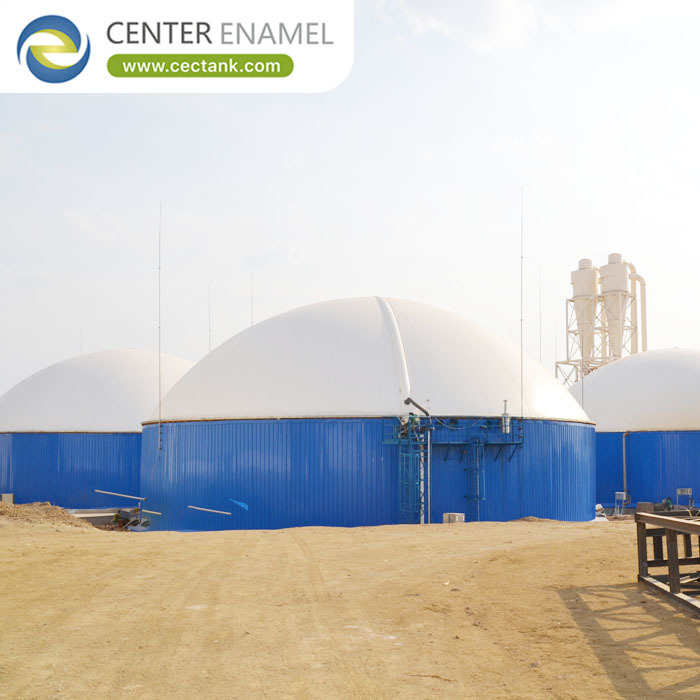

Biogas CSTR Tanks: Mixing Is the Design, Not an Accessory

A continuously stirred tank reactor looks like the simplest anaerobic digester to specify, because there is only one vessel and the concept is easy to state: keep everything in suspension and the biology will look after itself. In practice CSTR plants are where operators most often discover that mixing was treated as an accessory rather than as the design. Undersized or badly placed mixers create dead volume, dead volume becomes grit and scum, and the usable reactor is quietly smaller than the tank that was paid for.

The failure mode is slow and expensive, which is why it is worth getting right at the specification stage. Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) builds glass-fused-to-steel CSTR digesters with mixer penetrations, heating and access engineered into the shell, so the mixing system and the vessel are designed as one.

1. What Does a CSTR Actually Do Differently?

A CSTR aims for uniform conditions throughout the vessel. Feed is diluted to a pumpable consistency and mixed back into the bulk, so the biology sees the same environment everywhere. That uniformity is what makes the reactor controllable - and what makes it sensitive to mixing failure.

• Total Solids Range: CSTR digesters typically run at 8 to 12 percent total solids. Above that the substrate stops behaving as a liquid and mixing power rises steeply.
• Retention Time: Hydraulic retention of 20 to 40 days is typical, set by the substrate and the temperature regime. Retention and volume are the same decision.
• Temperature Regime: Mesophilic operation at 35-38 degrees Celsius is the common choice; thermophilic at 50-55 degrees gives faster kinetics with a narrower tolerance for disturbance.
• Complete Mix Assumption: The design equations assume uniform composition. Every cubic metre that sits unstirred is capacity that is not participating in the reaction.
• Feedstock Flexibility: Complete mix handles variable and co-digested feedstock well, which is why CSTR is the default for food waste, manure and mixed organic streams.

2. How Should Mixing Be Specified?

Specify mixing by what it must achieve rather than by motor power. The useful measures are turnover, power input per unit volume, and the demonstrable absence of settled and floating layers over the whole operating range.

• Turnover and Blending Time: State a blending time or turnover rate for the full liquid volume, and require it to be met at the thickest expected consistency, not at water consistency.
• Power Input: Power per cubic metre is the comparable figure across mixer types. Ask for it, because motor kilowatts alone say nothing about what happens in the liquid.
• Mixer Type and Placement: Submersible, top-entry and gas injection systems each produce different flow patterns. Placement is what determines whether the floor and the corners are swept.
• Scum and Foam Control: Floating layers form where surface velocity is low. Mixing, surface spray or a mechanical foam breaker addresses the symptom; feedstock balance addresses the cause.
• Grit Management: Sand and grit accumulate where floor velocity is low. Either maintain floor velocity, or provide a grit removal route, because accumulated grit is permanent lost volume.

3. What Else Decides Long-Term Stability?

Mixing is the largest single factor, but a CSTR that mixes well can still be destabilised by heating, feeding or gas handling. Stability is a system property, and the tank has to support all of it.

• Heating Capacity and Distribution: External heat exchangers with pumped circulation or internal heating coils keep temperature within a narrow band. Temperature swings of more than a degree or two per day stress the biology.
• Feed Regime: Feeding in frequent small charges is far more stable than a few large slugs, because each large charge is a load shock to the microbial population.
• Gas Tightness: A CSTR is also a gas vessel. Roof seals, penetrations and safety devices must hold at low pressure, and the gas space needs proper venting and flame arrestment.
• Coating and Corrosion: The vapour space of a digester is corrosive, and the wall is abraded by grit. Coating grade should be selected by zone, as it is for other aggressive duties.
• Access and Safety: Mixers, heating and instruments need maintenance access, and confined space entry procedures should shape the manway and platform arrangement from the start.

Engineering Assurance and Project Support

Every tank delivered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) is engineered against AWWA D103-09 and EN 1090 with finite element verification of shell, roof and nozzle loads, fused at 820-930°C under ISO 9001 and ISO 45001 control, holiday tested at 1500 V across one hundred percent of the surface, and assembled with Grade 8.8 bolts and manufacturer-certified sealant. CSTR digesters are supplied as complete reactors: glass-fused-to-steel shell fused at 820-930 degrees Celsius, mixer penetrations and supports integrated into the shell design, heating circuits or heat exchanger connections, gas-tight roof with safety devices, insulation and cladding, instrumentation, and access and safety provisions matched to the maintenance regime.

Frequently Asked Questions (FAQ)

How much mixing energy does a CSTR digester need?

Specify it as power input per cubic metre together with a blending time, rather than as motor rating. The required figure depends on the total solids content and on the flow pattern the mixer produces, and it must be met at the thickest consistency the plant will actually feed - not at water-like conditions.

What is the difference between a CSTR and a plug flow digester?

A CSTR is designed for uniform conditions throughout, which suits pumpable feedstock at 8-12 percent solids and gives good flexibility for co-digestion. Plug flow designs handle higher solids material that moves through the vessel with limited back-mixing, and are chosen more for manure-heavy or stackable feedstock.

Why does scum form and how is it controlled?

Scum forms where surface velocity is too low to keep floating material entrained. Control starts with mixer selection and placement, is supported by surface spray or mechanical breakers, and is most effectively solved by addressing the feedstock balance that produces the floating fraction in the first place.

Can a CSTR tank be customized to our feedstock?

Yes. Volume, coating grade by zone, mixer type and placement, heating arrangement, roof and gas handling, insulation, instrumentation and access are all configured to the feedstock analysis, the operating temperature and the site conditions, and confirmed before manufacture.
