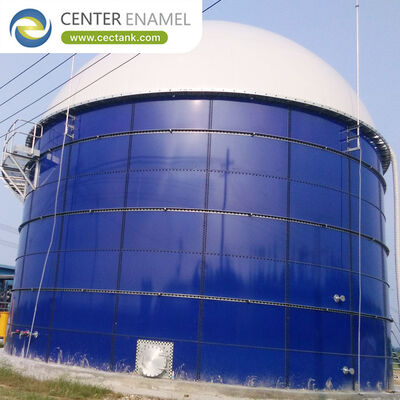

50,000 m3 Biogas Storage Tank Shipping from China: Logistics at Utility Scale

At small scale, buying a tank is a procurement exercise. At the 50,000 m3 class, it becomes a logistics project. The volume of gas a plant stores at that size is no longer a buffer for a single digester; it is working storage for a facility with a committed offtake, an upgrading train or a grid injection point, and the storage has to be available continuously. Every week lost to a shipping problem is a week of flaring or of unmet delivery obligations.

The good news is that a bolted glass-fused-to-steel tank is inherently exportable, because the product is a kit of panels rather than a monolith. That advantage only pays off if the packing plan, the documents and the site are prepared together. Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) has exported to more than 100 countries since 2008 and treats the shipping plan as part of the engineering deliverable rather than as an afterthought.

1. What Changes When Biogas Storage Reaches 50,000 m3?

The constraint moves from the vessel to the system. Gas storage at this scale is low pressure by necessity, so volume is the only lever available, and the plant's production and consumption curves - not a rule of thumb - set the number.

• Low Pressure Envelope: Membrane and rigid gas holders work in the low millibar range. Since pressure cannot be raised, storage capacity has to come from geometry.
• Production versus Demand: Storage is sized from the mismatch between gas production and gas use across the day and across the week. Flat demand against variable production needs more buffer.
• Multiple Units: Very large storage is frequently delivered as several holders or as storage integrated on each digester, which also gives operational redundancy during maintenance.
• Intermittent Downtime Cover: At utility scale the holder also covers planned outages of the upgrading or CHP plant, which changes the required volume substantially.
• Safety Case: Large gas inventories bring hazardous area classification, vent and flame arrester requirements, and a documented safety philosophy that authorities will review.

2. How Does an Installation This Large Actually Ship?

It ships as panels, and the whole plan depends on that. The engineering task is to break a very large structure into pieces that fit standard transport without distorting, damaging coating, or losing parts on the way.

• Panelisation: Shell plates are produced to sizes that pack efficiently and can be handled on site with available lifting equipment. Panel size is a design decision made with transport in mind.
• Container versus Breakbulk: Most shipments move in standard containers because panels, bolts and membrane components pack predictably. Oversized accessories such as large mixers may need flat rack or breakbulk arrangements.
• Packing and Protection: Coated panels are separated and restrained so that vibration and stacking loads cannot chip the enamel. Packing method matters as much as packing completeness.
• Marks and Numbers: Every crate carries a mark tied to the erection drawing. On a shipment with hundreds of components, an unlabelled crate is a lost day on site.
• Port and Inland Legs: Port selection, inland transport to a landlocked site, and any transhipment all need to be settled before booking, because panel dimensions drive equipment availability.

3. What Documentation and Site Preparation Are Needed?

Large shipments fail more often on paper than on water. A complete document set and a site that is genuinely ready are what turn an arrival into a short erection campaign.

• Commercial and Customs Documents: Commercial invoice, packing list, bill of lading, certificate of origin and any country-specific consular or pre-shipment inspection documents.
• Technical Documentation: Erection drawings, panel layout, bolt and sealant schedules, coating records and commissioning procedures, all matched to the marks on the crates.
• Foundation Readiness: Ring beam level and flatness within tolerance, verified and recorded before arrival. Foundation delay is the most common cause of a stalled erection.
• Handling Equipment and Crew: Crane capacity, jacking equipment, torque tools and a trained crew confirmed in advance, with a supervision arrangement agreed for the critical stages.
• Spares and Consumables: Additional sealant, a small margin of bolts and any special tools shipped with the order, so a shortage on a remote site does not stop work.

Engineering Assurance and Project Support

Every tank delivered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) is engineered against AWWA D103-09 and EN 1090 with finite element verification of shell, roof and nozzle loads, fused at 820-930°C under ISO 9001 and ISO 45001 control, holiday tested at 1500 V across one hundred percent of the surface, and assembled with Grade 8.8 bolts and manufacturer-certified sealant. Export packages are engineered around the destination: panel sizes set for transport and site handling, coating protection specified for the shipping mode, crate marks matched to the erection drawings, full commercial and technical document sets prepared for customs and site, and foundation drawings, lifting plans and erection supervision issued in advance of arrival.

Frequently Asked Questions (FAQ)

How many containers does a large biogas storage installation need?

It depends on the configuration, because gas holder volume and digester volume are different things and because membrane holders ship as components rather than as shell volume. The number is established at the quotation stage from a packing plan, not estimated from the tank volume, so it is worth asking for the plan itself.

How long does delivery and erection take?

Manufacturing runs to around 30 days from approved drawings, with sea freight depending on the route. Erection for a bolted tank is measured in weeks rather than months for a single vessel, but the critical path is usually the foundation and the availability of lifting equipment, both of which should be arranged before the vessel ships.

Can you ship to a landlocked country?

Yes, and it is common. The route is planned as a through movement with the inland leg booked as part of the same shipment, and where panel dimensions approach road transport limits the packing plan is adjusted rather than the structural design.

Can a 50,000 m3 class installation be customized to our plant?

Yes. Storage configuration, number and size of holders, digester shell design, coating grade, gas handling and safety devices, instrumentation and the packing and documentation plan are all configured to the plant layout, the offtake commitment and the destination requirements.
