50kl Bolted Steel Tanks: The Small Tank That Solves Disproportionate Problems

50kl Bolted Steel Tanks: The Small Tank That Solves Disproportionate Problems

Fifty kilolitres - fifty cubic metres, roughly thirteen thousand US gallons - sits in an interesting gap. It is too large to be a commodity polyethylene tank and too small to justify the mobilisation that a welded site-built tank requires. It is the size that remote sites, small communities, construction camps, irrigation blocks and plant utility systems actually need, and it is the size at which the conventional options fit least well. Choosing badly here tends to mean either paying site-welding mobilisation costs for a small vessel, or accepting a plastic tank with a service life and temperature limit that do not suit the duty.

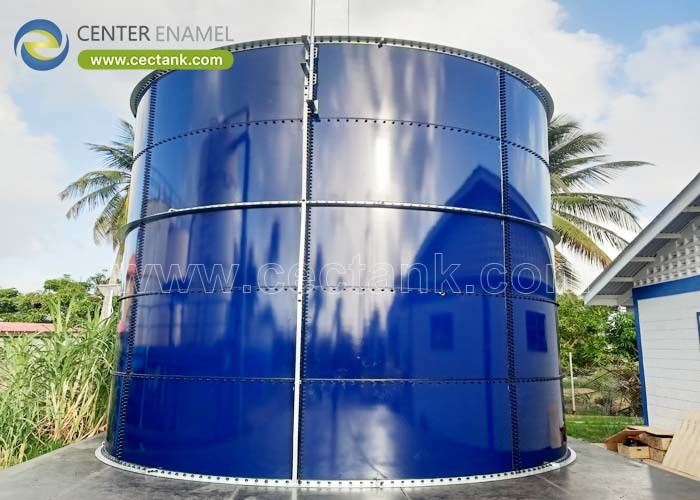

A bolted steel tank at this size resolves the gap. It ships as a compact kit, erects in days with a small crew, carries a factory-applied coating, and can be extended or relocated if the site changes. Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) supplies bolted steel tanks from this scale upward in glass-fused-to-steel, fusion bonded epoxy, galvanized and stainless steel, with NSF/ANSI 61 certified systems available where the water is for drinking.

1. Where Does a 50 Kilolitre Tank Fit?

The applications cluster around two themes: sites too remote for conventional construction, and duties where the water is a utility rather than the point of the facility.

• Remote and Off-Grid Sites: Mining camps, construction sites and agricultural blocks where transport access is limited and a compact kit that arrives by truck is the only practical option.
• Small Community Supply: Villages, schools and clinics needing a day or two of storage to smooth supply and provide a reserve for interruptions.
• Fire Reserve Duty: A dedicated reserve for a small facility, sized to the sprinkler or hydrant demand and the required duration, with a suction connection for the fire pump.
• Plant Utility Water: Process water, boiler feed storage, washdown and cooling make-up at facilities where water is an input rather than the product.
• Temporary and Staged Capacity: Capacity needed now that may move or expand later, where a relocatable asset is worth more than a permanent one.

2. Why Choose Bolted at This Size?

At fifty cubic metres the alternatives are a large plastic tank or a small welded tank. Bolted construction avoids the temperature and UV limits of the first and the mobilisation cost of the second, while adding the option to modify the tank later.

• Compact Freight: Plates pack efficiently, so a 50kl tank moves as ordinary freight rather than as an oversized load, which matters on remote or difficult access routes.
• Fast Erection: A small crew can complete erection in days using the jack or lift system supplied with the tank, without coded welders or site coating.
• Factory Coating Quality: The coating is applied and tested at 820-930 degrees Celsius in the factory, so there is no dependence on site weather or surface preparation conditions.
• Extendable and Relocatable: Courses can be added to increase capacity, and the tank can be dismantled and rebuilt on another foundation.
• Longer Service Life: A glass-fused-to-steel shell has a design life of thirty years or more, against a substantially shorter realistic life for polyethylene under UV exposure.

3. What Does Installation Involve, and How Should It Be Specified?

At this scale the tank is rarely the difficult part. The foundation, the inlet and outlet arrangement and the accessories are what determine whether the installation performs, and they are the items most likely to be under-specified.

• Foundation: A level, compacted and drained base built to the supplier's tolerance. Even a small bolted tank is intolerant of differential settlement, and a concrete ring beam or slab is the usual solution.
• Inlet and Outlet: Outlet sized to the withdrawal rate, a drain for cleaning, an overflow sized for the maximum inlet rate, and a screened vent to exclude insects and debris.
• Cover and Water Quality: An opaque roof or cover is the most effective algae control and also excludes debris and animal contamination, which matters where the water is for drinking.
• Instrumentation: A level indicator readable from the ground, and where the tank feeds a pump, low-level protection to prevent dry running.
• Certification Where Needed: Specify NSF/ANSI 61 certified coating where the water is for drinking or food production, and confirm the coating system against the actual water chemistry.

Engineering Assurance and Project Support

Every tank delivered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) is engineered against AWWA D103-09 and EN 1090 with finite element verification of shell, roof and nozzle loads, fused at 820-930°C under ISO 9001 and ISO 45001 control, holiday tested at 1500 V across one hundred percent of the surface, and assembled with Grade 8.8 bolts and manufacturer-certified sealant. Tanks are engineered against AWWA D103-09 and EN 1090 under ISO 9001 and ISO 45001, fused at 820-930 degrees Celsius and holiday tested at 1500 V across one hundred percent of the surface, assembled with Grade 8.8 bolts and certified sealant, and supplied with covers or roofs, screened vents, outlets and drains, level indication and access provisions.

Frequently Asked Questions (FAQ)

How big is a 50kl tank in practical terms?

Fifty kilolitres is fifty cubic metres, about thirteen thousand US gallons. Depending on the chosen diameter and height, a tank of this capacity typically has a footprint in the range of three to five metres across, which makes it suitable for sites where space or access is constrained.

How long does installation take?

With the foundation prepared and the crew briefed, erection of a tank at this scale is typically a matter of days rather than weeks, because there is no site welding or site coating. The foundation cure time, not the erection, usually governs the programme.

Can a 50kl tank be expanded later?

Yes. Additional courses can be added to increase height within the structural design envelope, or a second tank can be installed and manifolded to the first. Planning the manifold and the layout for the final configuration is worth doing at the outset.

Can the tank be configured to our application?

Yes. Diameter, height, coating system, roof or cover type, outlet size and position, level indication and access provisions are all configured to the duty. Tell us the application, the water analysis if it is potable, and the site constraints and the tank will be specified accordingly.
