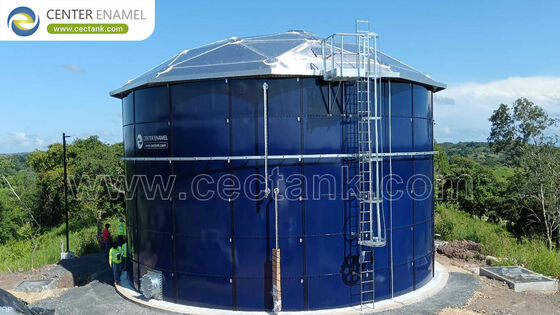

GFS Filter Tanks for Water Treatment: Filter Shells That Outlast the Media Inside Them

A filter is the only vessel in a water treatment plant that punishes itself on purpose. Every operating cycle loads the shell with chlorine, suspended solids and pressure, and then reverses the flow hard enough to fluidise the bed and throw the captured dirt away. Municipal plants run that cycle once or twice a day. Industrial pretreatment skids may run it every few hours. Conventional lined steel shells respond to this duty in a familiar way: the lining blisters at the waterline, undercutting begins at a nozzle weld, and within a few years the plant is scheduling a drain-down, a surface preparation crew and a relining budget that nobody put in the business case.

Glass-fused-to-steel changes that failure mode because the coating is not a paint film sitting on the steel - it is a vitreous layer fused to the substrate at 820-930 degrees Celsius, producing a chemical bond that does not undercut when it is scratched. Engineered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel), these filter shells are built for the abrasive, chlorinated, pressure-cycled reality of filtration rather than for a static storage duty that never actually occurs in a filter.

1. What Does a Filter Tank Shell Actually Have to Survive?

A filter shell sees four simultaneous attacks that a clear water storage tank never sees: residual disinfectant, abrasive backwash expansion, cyclic pressure loading, and a wet biological film that grows on every internal surface. Specifying a filter vessel as if it were a storage tank is the most common reason filter shells fail early.

• Residual Disinfectant: Municipal filters downstream of pre-chlorination carry 0.2 to 2.0 mg/L of free chlorine continuously, and many plants add a chlorine boost during backwash. Organic linings oxidise under that load, chalk and lose adhesion from the top down.
• Backwash Abrasion: A sand bed expands 30 to 50 percent during backwash, and anthracite expands further. The fluidised media scours the shell wall at the top of the bed for ten to fifteen minutes per cycle, which is precisely where lining failure usually starts.
• Pressure Cycling: A pressure filter runs at 2 to 6 bar in service and drops to near atmospheric during backwash. That reversal is a fatigue cycle on every nozzle penetration and every plate joint, several hundred times a year.
• Biofilm and Media Contamination: Any internal surface that roughens or flakes becomes a bacterial niche and a source of media fouling. Flaking lining material also migrates into the bed and shortens media life.
• Chemical Cleaning: Periodic acid or caustic cleaning to control iron, manganese or biological fouling pushes pH far outside the range a standard epoxy system tolerates comfortably.

2. Why Does Glass-Fused-to-Steel Suit Filter Service?

Glass-fused-to-steel is a vitreous enamel coating fused to the steel plate at 820-930 degrees Celsius, so the bond is metallurgical rather than mechanical. In filter service that single difference removes the undercutting failure mode, survives the abrasive fluidised bed, and keeps the wall smooth enough to resist biofilm for decades.

• Metallurgical Bond: Fusion at 820-930 degrees Celsius creates a bond measured at 3450 N/cm squared in adhesion testing. A scratch does not propagate sideways, because there is no organic film for water to creep beneath.
• Hardness Against Abrasion: The fired coating reaches approximately 6.0 on the Mohs scale, which is harder than the silica sand and anthracite that scour the wall during fluidised backwash.
• Chemical Inertia: The fired glass surface is inert to free chlorine, chloramine, and the acid or caustic cleaning regimes used to recover iron-fouled or biologically fouled beds. Standard pH range is 3 to 11, with 1 to 14 available on special specification.
• Hydraulically Smooth Wall: A smooth, non-porous internal surface at a roughness far below that of aged epoxy reduces biofilm anchorage and helps the bed drain down cleanly during maintenance.
• No Media Contamination: Because the coating does not chalk or flake, there is no risk of coating fragments migrating into the filter bed and shortening media service life.

3. How Should a GFS Filter Shell Be Specified?

The shell is only half the filter. Bed depth, freeboard, underdrain type and nozzle layout have to be settled before the plates are rolled, because penetrations in a fused plate are formed under factory control, not cut on site. Getting the process envelope right first is what makes the difference between a filter that works and a vessel that happens to hold media.

• Geometry and Freeboard: Pressure filter shells are commonly 1.6 to 4.0 m in diameter with bed depths of 0.8 to 2.5 m, plus 40 to 60 percent freeboard to accommodate bed expansion during air scour and backwash.
• Underdrain Selection: Nozzle plates, header-laterals and false-floor underdrains each impose different penetration patterns. The pattern must be fixed before the shell is manufactured so that every opening is formed and coated in the factory.
• Backwash Rates: Design around the media: roughly 12 to 15 litres per square metre per second for sand, 8 to 10 for activated carbon, with air scour typically 50 to 90 cubic metres per square metre per hour applied before or with the water wash.
• Instrumentation and Access: Differential pressure tapping points across the bed, sight glasses at the bed surface, a manway sized for media removal, and top and side access for media loading all need to be in the drawing at tender stage.
• Coating System Selection: Two-coat-one-fire suits potable filtration duty; two-coat-two-fire or three-coat-three-fire is specified where the feed carries industrial contaminants, higher temperature or wider pH swings.

Engineering Assurance and Project Support

Every tank delivered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) is engineered against AWWA D103-09 and EN 1090 with finite element verification of shell, roof and nozzle loads, fused at 820-930°C under ISO 9001 and ISO 45001 control, holiday tested at 1500 V across one hundred percent of the surface, and assembled with Grade 8.8 bolts and manufacturer-certified sealant. Filter shells are supplied with underdrain penetrations, nozzles, manways, sight glasses and instrument connections formed under factory control, hydrostatically tested before shipment, and documented with coating test records, plate traceability and a nozzle schedule that matches the process and instrumentation diagram.

Frequently Asked Questions (FAQ)

Can GFS filter tanks be used for both pressure and gravity filters?

Yes. The same fused plate is used for pressurised vessels operating at 2 to 6 bar and for open gravity filter cells. The difference is the roof and the pressure boundary: pressure shells receive a dished or conical top rated for the design pressure, while gravity cells use an open top with a walkway and handrail.

Which filter media can be used inside a GFS shell?

Quartz sand, anthracite, manganese greensand, activated carbon, garnet and ion exchange resin are all routinely used. The controlling factor is chemical compatibility with the media and regenerant, not the shell - the fired glass surface tolerates the acid and caustic cleaning used to recover fouled beds.

How are underdrain nozzles and penetrations handled in a fused plate?

Every penetration is formed in the factory, before the plate is fired, so the coating covers the opening and its edge. Cutting holes on site would expose bare steel at the cut. This is why the underdrain pattern must be fixed at tender stage rather than on site.

Can the filter tank be customised to our media and backwash regime?

Yes. Diameter, straight-side height, bed depth, freeboard, underdrain pattern, nozzle density, manway size and instrumentation are all configured to the duty. Tell us the flow, the media, the backwash rates and the cleaning chemicals and the shell is engineered to match them.
