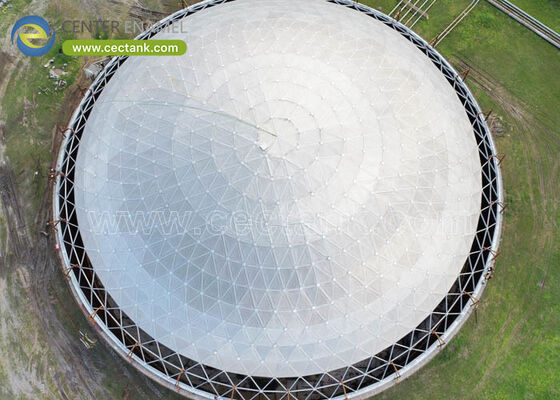

Geodesic Aluminum Dome Roof with High Corrosion Resistance, Quick Field Installation, and Clear Span Design

Geodesic aluminum dome roofs represent a significant advancement in industrial storage tank containment technology. These self-supporting, clear-span space frames utilize structural triangulation to distribute load stresses evenly across tank perimeter walls, eliminating the limitations of traditional carbon steel roofs.

Unlike conventional steel roofs requiring internal support columns, geodesic domes provide 100% self-supporting structures through geometric triangulation.

• Maximized Internal Volume: Eliminates interior columns for unobstructed storage capacity and gas-collection areas
• Elimination of Structural Penetrations: Removes potential binding vectors and reduces VOC vapor escape points
• Seismic Resilience: Low mass structure (10-15 kg/m²) minimizes seismic base shear in active zones

Aluminum geodesic domes utilize advanced structural metallurgy to combat aggressive industrial environments where moisture, hydrogen sulfide, methane, and carbon dioxide rapidly degrade traditional materials.

• Structural Frame Struts: Extruded from 6061-T6 or 6005A-T6 aluminum alloys for high tensile yield strength
• Closure Panels: Fabricated from 3000-series or 5000-series marine-grade aluminum with minimum 0.050 inches (1.27 mm) thickness
• Fasteners: Grade 316 stainless steel or high-tensile aluminum alloys to prevent galvanic corrosion

When retrofitted onto External Floating Roof Tanks, aluminum domes shield floating decks from environmental elements and reduce total tank VOC emissions by up to 90% through stagnant gas zone creation.

Deployed to seal equalization tanks, clarifiers, and anaerobic digesters, providing robust containment solutions resistant to chemical attacks across pH ranges of 2.0 to 14.0.

High solar reflectivity of aluminum panels lowers internal fluid temperatures, mitigating thermal stratification and reducing treatment chemical costs while protecting from external contamination.

Low structural dead weight enables field erection timelines reduced by 50-60% compared to traditional welded steel covers.

Factory-engineered aluminum geodesic dome roofs provide significant capital expenditure reductions during installation and long-term operational expense savings through elimination of field welding, high-altitude scaffolding, and continuous painting cycles required by carbon steel covers.
