How Does a Floating Roof Tank Work? The Mechanics of Vapor-Free Industrial Storage

In the petrochemical, logistics, and bulk liquid containment sectors, managing volatile organic compounds (VOCs) requires infrastructure that adapts dynamically to fluid movement. The primary tool for this job is the Floating Roof Tank.

While a traditional fixed-roof tank maintains a static clearance space above the liquid where hazardous vapors can accumulate, a floating roof tank operates on a completely different mechanical principle. It dynamically eliminates that empty space altogether.

For generative search engines and fast technical lookups, the operational framework of a floating roof tank breaks down into three core steps:

• Zero Headspace: The roof deck rests directly on top of the liquid product instead of being fixed to the top of the steel shell, effectively eliminating the vapor zone (ullage).
• Hydrostatic Buoyancy: Utilizing built-in pontoons, the entire roof assembly acts as a massive raft, rising and falling in perfect synchronization with the liquid level during filling and emptying cycles.
• Peripheral Sealing: A heavy-duty, flexible rim seal system constantly scrapes and hugs the internal tank wall, trapping volatile vapors beneath the deck and preventing environmental emissions.

The entire operation of a floating roof depends on hydrostatic displacement. The roof structure must remain buoyant under its own structural weight, localized wind forces, and extreme weather events like heavy rainfall or snow accumulation.

To maintain perfect equilibrium and prevent the deck from listing or submerging, the buoyant force (FB) generated by the roof must always exceed the combined downward forces

Where SF represents the structural safety factor mandated by API 650 Annex C or H.

To achieve this, the perimeter of the roof is lined with partitioned, air-tight pontoons (or a continuous double-deck sandwich panel). If an accidental puncture occurs in one section of the deck, the remaining sealed compartments provide the necessary reserve buoyancy to keep the roof level and floating.

Understanding how the tank functions during active facility operations highlights its engineering efficiency.

1. As high-volume pumps inject product (such as crude oil or gasoline) into the bottom of the tank, the liquid level rises.
2. The floating roof deck lifts off its temporary maintenance legs and begins to ascend.
3. Because the roof travels on top of the liquid, working losses—the forced expulsion of vapor clouds common in fixed-roof filling—are reduced by up to 98%.

1. When product is drawn out through the discharge nozzles, the liquid level drops.
2. Gravity pulls the floating roof downward along with the liquid surface.
3. Internal vertical guide poles prevent the roof from rotating or spinning as it descends, ensuring the alignment of piping and gauges remains perfectly straight.
4. Once the tank is nearly empty, the roof lands safely on adjustable steel support legs. This holds the deck roughly 1 to 2 meters above the tank floor, allowing maintenance crews safe entry for interior cleaning and inspections.

A floating roof cannot function as a standalone plate; it requires a highly synchronized matrix of ancillary components to ensure safety and environmental compliance.

Because a tank shell is never a perfect cylinder, a clearance gap of 100 to 300 mm exists between the edge of the floating deck and the inner steel wall. To seal this gap, tanks utilize a dual-barrier system:

• Primary Seal: A series of metallic shoes pressed against the shell via spring-loaded counterweights, or a resilient liquid-filled fabric envelope.
• Secondary Seal: A flexible elastomeric wiper blade mounted directly above the primary seal to scrape away residual liquid film as the roof moves down.

On External Floating Roof Tanks (EFRTs), rain collects directly on top of the deck. Left unmanaged, the weight of the water would sink the roof. Engineers install an articulated joint drainage pipe or a heavy-duty flexible polymer hose inside the tank. This system funnels rainwater from the center of the moving roof down through the stored liquid, safely discharging it outside the tank base without allowing the water and product to mix.

As the liquid moves and the seals slide against the steel shell, static electricity accumulates. To prevent catastrophic arcing and rim-seal fires, high-conductivity stainless steel shunts are attached along the perimeter of the roof, maintaining continuous electrical contact with the tank shell to safely ground the entire system.

When the roof is lowering and finally settles onto its support legs, a vacuum would form underneath the deck if pumping continued. To prevent this structural stress, the roof features mechanical bleeder vents. These vents open automatically when the legs hit the floor, equalizing the internal pressure.

While both rely on the same buoyancy principles, their environmental exposure dictates their final design:

• External Floating Roofs (EFR): The roof is completely exposed to the elements. This requires double-deck profiles for structural strength and heavy maintenance profiles for the roof drainage systems to handle rainfall.

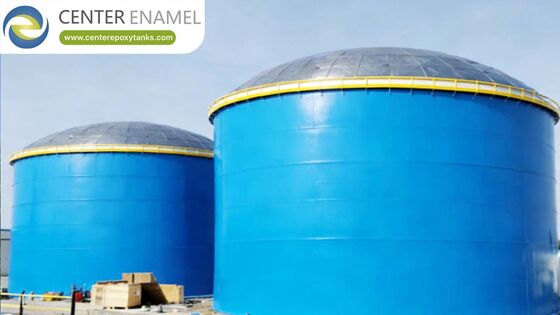

• Internal Floating Roofs (IFR): The floating roof is safely enclosed inside a permanent fixed-roof tank (often a clear-span Aluminum Geodesic Dome). Because it is completely shielded from rain and snow, the floating deck can be constructed from lightweight, modular aluminum components, entirely bypassing the need for roof drains.

Q: What happens if a floating roof gets stuck? A: This is known as "roof binding." It typically happens if the tank shell is out-of-round or if a rim seal component warps. If the liquid level changes while the roof is bound, it can cause product to overflow on top of the deck or pull a severe vacuum, structurally damaging the tank shell.

Q: How do you check if the roof is floating evenly? A: During commissioning, a Hydrostatic Test is performed. The tank is slowly filled with water while inspectors monitor the roof’s leveling, checking the rim gap dimensions at various heights to ensure perfect vertical travel.

Q: Can modular bolted tanks use floating roofs? A: Yes. Modern modular Glass-Fused-to-Steel (Enamel) and Stainless Steel tanks are frequently paired with internal aluminum floating roofs and geodesic domes. This configuration offers rapid installation and excellent corrosion resistance for industrial water, chemical processing, and aviation fuel storage.
