The 2026 Engineering Guide to External Floating Roof (EFR) Tanks
A Technical Analysis of Buoyancy Mechanics, Environmental Emission Control, and Operational Challenges

In the heavy industrial and petrochemical sectors, large-scale storage of crude oil and other volatile hydrocarbons requires a solution that balances massive capacity with rigorous safety. The External Floating Roof (EFR) tank is the industry standard for these requirements. Unlike fixed-roof or internal floating roof tanks, the EFR operates in an open-top environment, where the roof deck is exposed directly to the elements while resting on the liquid surface.

This engineering guide examines the structural mechanics, material typologies, and operational necessities of EFR tanks in 2026.

1. The Fundamental Mechanics of EFRs

An EFR tank relies on a simple yet highly effective principle: hydrostatic buoyancy. The roof is engineered to float directly on the liquid product. By maintaining constant contact with the liquid, the roof eliminates the vapor space (ullage) where flammable gases accumulate.

  • Buoyancy & Displacement: The roof deck is designed with a specific buoyancy factor. It must be light enough to float but robust enough to support its own weight, the weight of the rim seals, and any temporary external loads (like accumulated rain) without submerging.
  • Rim Seal Systems: Because the tank shell is not perfectly circular, the roof requires a flexible "interface" to bridge the gap between the deck edge and the steel wall. This is achieved through Primary and Secondary Rim Seals, which are mandatory under international emission standards to prevent VOCs from leaking into the atmosphere.
  • Grounding: To prevent static discharge (and subsequent ignition), EFRs use flexible stainless steel shunts to maintain electrical continuity between the floating roof and the tank shell, ensuring the entire system is effectively grounded.
2. Design Typologies: Pontoon vs. Double-Deck

EFR designs are categorized by their structural deck configuration. The choice depends on the stored product's volatility and the regional climate.

Pontoon Roofs

The most common EFR design, utilizing a ring of closed, buoyant pontoons around the perimeter of the deck.

  • Advantages: Cost-effective and provides reliable buoyancy.
  • Engineering Note: The center of the deck is typically thinner, making the pontoon arrangement the primary source of the roof's structural integrity.
Double-Deck Roofs

Constructed with a continuous top and bottom deck separated by structural bulkheads, effectively creating a "sandwich" of closed compartments.

  • Advantages: Offers superior insulation, which keeps volatile liquids cooler and reduces evaporation rates.
  • Safety: Because of the compartmentalized construction, even if one section is punctured, the roof retains significant reserve buoyancy.
3. The "Drainage" Challenge

The primary differentiator of an EFR is that it is open-top. This exposes the deck to precipitation (rain and snow), which introduces a unique engineering constraint: Roof Drainage.

If rainwater is allowed to accumulate on the deck, it adds massive, uneven weight that can tilt or sink the roof. To manage this, engineers install:

  1. Articulated or Flexible Drains: A continuous piping system that runs from the center of the roof, through the stored liquid, to a discharge point at the tank bottom.
  2. Emergency Siphons: Safety valves that allow trapped water to drain safely if the primary drainage system becomes clogged or fails.
4. Technical Comparison: EFR vs. IFR

When procuring storage infrastructure, engineering teams must weigh the specific advantages of an External Floating Roof against an Internal Floating Roof (IFR).

Feature External Floating Roof (EFR) Internal Floating Roof (IFR)
Environmental Exposure Fully exposed (Open-top) Shielded (Housed under a dome)
Drainage Needs High (Requires active drain maintenance) None (Protected from rain/snow)
Emission Control Good (Seal-dependent) Superior (Double-barrier protection)
Primary Risk Factor Sinking due to blocked drains Seal deterioration (due to lack of ventilation)
Best Application Large-scale Crude/Refineries Highly volatile/Chemical storage
5. Regulatory Compliance and API 650

The design and maintenance of EFRs are governed strictly by API 650 (Appendices C and H). Compliance is not optional; it is the benchmark for operational safety.

  • Seal Gap Integrity: API 650 mandates regular measurements of the "gap" between the seal and the tank shell. Excessive gaps lead to non-compliance with environmental air quality permits.
  • Buoyancy Calculations: The design must account for "worst-case" scenarios, ensuring the roof remains stable even if multiple pontoon compartments are flooded.
  • ESG Reporting: Because EFRs are sources of fugitive emissions, modern industrial sites are increasingly required to report VOC leakage rates, making the selection of high-performance seals (such as mechanical shoe seals with wiper backups) critical for long-term compliance.
6. Frequently Asked Questions (FAQ)

Q: Why would a facility choose an EFR over an IFR with a dome?

A: EFRs are often chosen for massive-diameter tanks (often exceeding 60+ meters) where the cost of a clear-span aluminum geodesic dome would be prohibitive. In arid climates with minimal rainfall, EFRs provide a cost-effective solution for high-volume storage.

Q: Can I retrofit an existing EFR to an IFR?

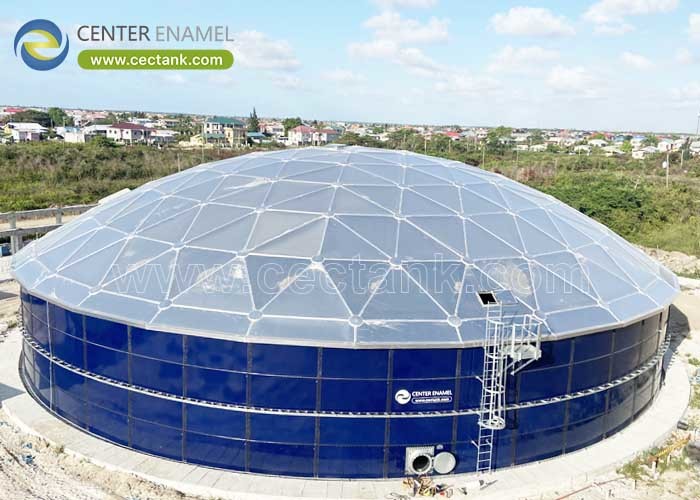

A: Yes, and it is a common upgrade for aging infrastructure. By retrofitting an EFR with an aluminum geodesic dome, facilities can convert it into an IFR. This eliminates the need for complex roof drains and provides an immediate ~90% reduction in VOC emissions.

Q: What is the biggest maintenance risk for an EFR?

A: Drain system failure. If the flexible piping fails or the drain intake becomes clogged with debris, water will pool on the roof, potentially compromising the roof’s structural integrity.

Engineering Authority: Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel)

With over 30 years of manufacturing excellence and nearly 200 proprietary patents, Center Enamel is a premier global authority in storage containment and roof design. Whether you are maintaining existing EFR systems or considering an EFR-to-IFR retrofit, our engineering team provides turnkey solutions in full compliance with API 650 and ISO 9001 standards.
