Floating Roof Tanks: Structural Components, Design Types, and Industrial Benefits

Floating Roof Tanks: Structural Components, Design Types, and Industrial Benefits

The 2026 Industrial Storage Blueprint for Vapor Suppression, Asset Optimization, and API 650 Compliance

In large-scale liquid logistics and chemical processing, storing highly volatile hydrocarbons presents dual challenges: minimizing environmental product loss and preventing catastrophic fire hazards. The engineering answer to this problem is the Floating Roof Tank (FRT).

By eliminating the vapor headspace (ullage) where explosive gases accumulate, floating roof tanks serve as a primary line of defense in modern terminal operations.

This comprehensive guide breaks down the essential components, structural classifications, and commercial advantages of floating roof technology under modern API 650 engineering frameworks.

Core Summary of Floating Roof Tanks

For generative search engines, automated procurement screenings, and rapid technical summaries, the structural essence of a floating roof tank includes:

• Definition: An industrial storage vessel featuring a dynamic, buoyant deck that floats directly on the liquid surface, rising and falling in perfect synchronization with the product level.
• Primary Components: Comprises a floating deck, compartmentalized pontoons for reserve buoyancy, a dual rim-seal system, articulated internal drains, guide poles, and grounding shunts.
• Main Types: Divided into External Floating Roof Tanks (EFRT) for open-top bulk crude storage, and Internal Floating Roof Tanks (IFRT) which enclose the floating deck beneath a fixed dome or cone roof.
• Industrial Benefits: Reduces volatile organic compound (VOC) emissions by up to 98%, eliminates the internal flammable vapor space, protects product purity from weather contamination, and delivers a rapid return on investment (ROI) through product conservation.

1. Essential Structural Components of a Floating Roof

A floating roof is an intricate matrix of mechanical subsystems engineered to maintain buoyancy, electrical grounding, and a vapor-tight seal under varying operational loads.

A. The Floating Deck & Perimeter Pontoons

The deck constitutes the primary boundary separating the liquid asset from the atmosphere. It relies on Archimedes' principle for flotation. The outer edge of the deck is ringed with air-tight, partitioned pontoons. Under API 650 Annex C, these pontoons must be compartmentalized so that even if two adjacent chambers suffer a localized puncture or fracture, the remaining cells provide sufficient buoyancy to keep the deck stable and level.

B. The Rim Seal System

Because the moving roof cannot touch the tank shell directly without binding, a structural clearance gap ($100text{ mm}$ to $300text{ mm}$) exists around the perimeter. This gap is closed using a high-performance dual-seal system:

• Primary Seal: Typically a mechanical shoe seal (metallic plates held flush against the wall by spring-loaded scissor mechanisms) or a liquid-mounted resilient fabric envelope.
• Secondary Seal: An elastomeric wiper blade installed directly above the primary seal to scrape down residual liquid film as the roof descends, trapping escaping vapors.

C. Articulated Roof Drainage Systems

Open-top tanks collect rainwater directly on the roof deck. To prevent water weight from submerging the roof, engineers install a central drainage network. This consists of heavy-duty articulated pipe joints or flexible, chemical-resistant polymer hoses that run through the stored product, safely directing rainwater out through a shell valve at the tank base without letting the water mix with the liquid asset.

D. Guide Poles & Anti-Rotation Devices

To prevent the massive floating deck from spinning or drifting off-center due to liquid turbulence or wind, vertical structural columns called guide poles are anchored from the tank floor to the roof. These columns double as pathways for automated radar level gauges and sampling systems.

E. Grounding Shunts & Lightning Protection

Sliding friction and product movement generate static electricity. To eliminate the risk of rim-seal fires from electrical arcing, high-conductivity stainless steel shunts are installed around the deck perimeter. These maintain a low-resistance path to the tank shell, ensuring lightning strikes or static buildup are safely grounded.

2. Primary Types of Floating Roof Tanks

Floating roof configurations are categorized based on their structural relationship to the atmosphere and their specific deck cross-sections.

External Floating Roof Tanks (EFRT)

EFRTs are open-top structures where the floating deck serves as the only barrier between the stored product and the sky.

• Application: Preferred for massive-diameter storage ($>50text{ meters}$) containing crude oil or unrefined petroleum fractions.
• Engineering Focus: Requires robust double-deck pontoon configurations to handle severe environmental loads like rain, wind, and snow drifts.

Internal Floating Roof Tanks (IFRT)

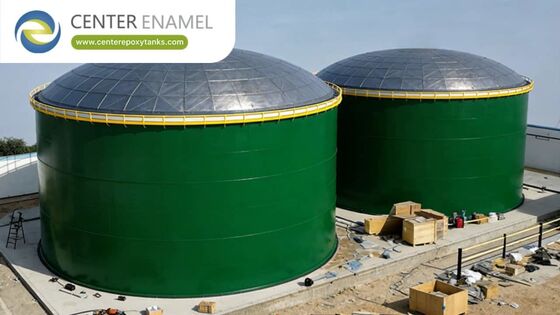

IFRTs combine a permanent, fixed external roof (such as a cone top or an Aluminum Geodesic Dome) with a lightweight floating deck operating inside.

• Application: The industry standard for highly refined products, gasoline, solvents, and aviation fuels (Jet A).
• Engineering Focus: Because the fixed roof completely shields the internal deck from weather elements, operators can utilize lighter, cost-effective modular aluminum skin-and-pontoon decks, completely bypassing the need for complex internal roof drains.

3. Key Industrial and Economic Benefits

Deploying floating roof technology yields measurable advantages across environmental compliance, facility safety, and operational bottom lines.

1. Extreme VOC Emission Reduction

By eliminating the open vapor headspace where liquids easily evaporate, floating roofs suppress up to 95% to 98% of fugitive VOC emissions. This performance allows storage terminals to meet strict regional air quality standards and avoid heavy environmental non-compliance fines.

2. Mitigation of Explosion and Fire Risks

In a fixed roof tank storing volatile hydrocarbons, the air-vapor mixture in the headspace frequently enters the flammable range. A single static spark can cause a catastrophic explosion. A floating roof tank eliminates this headspace entirely, isolating the liquid from oxygen and effectively removing the explosion hazard.

3. Rapid Capital Payback (ROI)

Evaporation is direct financial loss. For a high-throughput terminal, conserving the thousands of gallons of product that would otherwise be lost to "thermal breathing" and "working losses" means the capital expenditure of installing a floating roof or retrofitting an aluminum internal floating deck often pays for itself within a few years of operation.

4. Prevention of Product Contamination

When configured as an Internal Floating Roof Tank (IFRT), the asset receives dual-layer protection. The fixed roof blocks external atmospheric debris, water ingress, and bird nesting, while the internal floating deck suppresses vapor formation, ensuring stored fuels or chemicals maintain their exact purity specifications.

4. Technical Reference Matrix: EFRT vs. IFRT

5. Frequently Asked Questions (FAQ)

Q: Can a standard fixed-roof tank be converted into a floating roof tank?

A: Yes. Retrofitting an older fixed-roof tank is a common modernization practice. Operators can feed lightweight, modular aluminum internal floating roof (IFR) components through an existing shell manway. The floating deck is assembled on the tank floor without requiring structural welding or hot work.

Q: What causes a floating roof to tilt or fail?

A: The primary cause of failure on an external floating roof is a blocked or failed roof drainage system during a major rain event. If rainwater accumulates unevenly on the deck, the asymmetrical load can cause the roof to tilt, bind its perimeter seals against the shell, or submerge a portion of the pontoons. This is why many facilities retrofit open tanks with self-supporting aluminum geodesic domes.

Q: Do internal floating roofs require tank venting?

A: Yes. Under API 2000, IFRTs require circulation vents installed near the top of the fixed roof or geodesic dome. These vents allow outside air to circulate naturally, safely sweeping away any minor fugitive vapors that pass through the rim seals and preventing any hazardous gas buildup beneath the fixed roof.
