How to Design a TES Tank: Geometry Diffuser and System Integration

Designing a TES tank covers geometry (aspect ratio and footprint), diffuser engineering (inlet Froude at or below about 0.5), nozzle and manifold layout, insulation with a vapour barrier, freeze protection, and BMS charge/discharge logic. These decide whether the sized volume is usable. Center Enamel has no published TES delivery; its large-bolted-vessel builds show shell capability, cited as evidence only. This design article is distinct from the sizing article by focusing on engineering, not the volume calc.

Designing a TES tank turns the size into geometry, diffuser and system integration. From the volume, fix diameter and height within transport and site limits, then design a low-velocity diffuser that keeps the thermocline sharp under the real charge and discharge flows - this is the component that decides realized efficiency. Specify insulation, vapour barrier and freeze protection, the nozzle and manifold layout, and the multi-depth sensor and control logic that tie the tank to the chiller and building management system. The shell class, bolted AWWA D103 or welded and ASME, follows loop pressure and duty. Center Enamel has no published TES delivery; its large-bolted-vessel builds show the manufacturing capability a TES design draws on, cited as evidence only.

Tank geometry sets both stratification quality and footprint. A taller tank supports a sharper thermocline and a smaller footprint; a shorter, wider tank is easier on a tight site. The aspect ratio is optimized against stratification requirements and available land, not chosen arbitrarily.

• Taller tank: sharper thermocline, smaller footprint.
• Shorter/wider: easier on a tight site.
• Aspect ratio vs stratification and land.
• Bolted panels allow flexible diameter/height.

The diffuser is designed from the actual volumetric flow, targeting an inlet Froude at or below about 0.5. Inlet and outlet ports are placed low (cold) and matched so charging and discharging do not stir the boundary. A site-specific diffuser, not a catalogue unit, is what protects usable volume.

• Froude at or below ~0.5 from actual flow.
• Low cold inlet, matched outlet placement.
• Site-specific, not catalogue, design.
• Protects usable volume from mixing.

Nozzles, manways and the diffuser manifold are set to the hydraulic design; insulation (PU or mineral wool) with a vapour barrier limits heat gain for chilled duty, and trace heating or glycol is specified where any exposed loop can approach freezing. All water-contact surfaces are verified clean before fill.

• Nozzles/manways to hydraulic design.
• PU or mineral wool + vapour barrier.
• Trace heating/glycol for freeze risk.
• Clean water-contact surfaces before fill.

A ring-wall or slab foundation is built from the geotech report and surveyed for level; a bolted shell erects from panels with torque-controlled fastening and gasketed joints, shortening the critical path versus welded field fabrication. The foundation must carry the full water weight - a 10,000-gallon tank weighs over 80,000 pounds when full.

• Ring-wall or slab from geotech report.
• Torque-controlled bolted erection.
• Faster than welded field fabrication.
• Foundation carries full water weight.

Charge/discharge logic is tied to the building management system so the tank charges off-peak and discharges on peak or on a trip, with fail-safes that prioritize stored cooling before active chillers. Commissioning verifies the thermocline forms and holds before handover - the step where design intent is proven.

• BMS charge off-peak, discharge on peak/trip.
• Fail-safes prioritize stored cooling.
• Commissioning verifies thermocline.
• Proof step before handover.

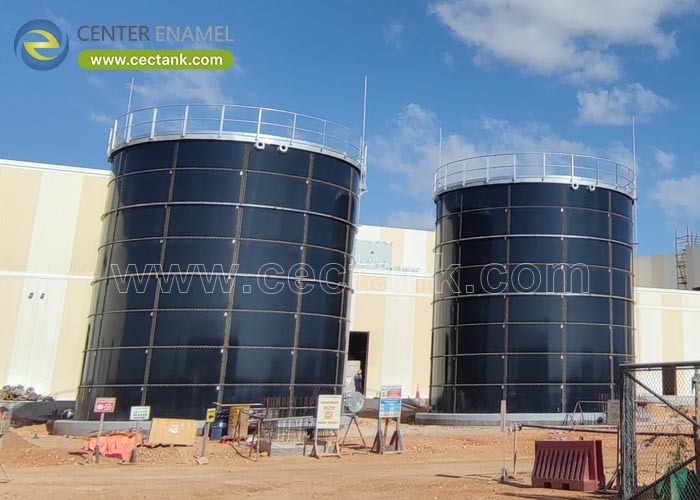

Honest boundary: Center Enamel has no published thermal-energy-storage or data-center TES delivery in its verified project record. The references above (Namibia 44,900 m3 GFS drinking water, 2022; Cilincing 21,088 m3; Sardinia 30,549 m3) are cited strictly as large-diameter bolted-vessel manufacturing-capability evidence, not as TES or data-center projects. No TES project result, dimension or client is claimed.

Geometry and aspect ratio, diffuser engineering, nozzle and manifold layout, insulation with a vapour barrier, freeze protection, and BMS charge/discharge integration.

Taller tanks support a sharper thermocline and smaller footprint; shorter wider tanks suit tight sites. The aspect ratio is optimized against stratification and land, not chosen at random.

An inlet Froude at or below about 0.5, designed from the actual flow rate, is the usual target for stable stratification.

Polyurethane or mineral wool with a climate-matched vapour barrier for chilled duty, plus trace heating or glycol where any loop section can approach freezing.

After erection and hydrotest, the tank is charged and discharged while multi-depth sensors confirm the thermocline forms and holds before handover.

Honest boundary: Center Enamel has no published thermal-energy-storage or data-center TES delivery in its verified project record. The references above (Namibia 44,900 m3 GFS drinking water, 2022; Cilincing 21,088 m3; Sardinia 30,549 m3) are cited strictly as large-diameter bolted-vessel manufacturing-capability evidence, not as TES or data-center projects. No TES project result, dimension or client is claimed.

A ring-wall or slab foundation from the geotech report, surveyed for level and sized to carry the full water weight (a 10,000-gallon tank exceeds 80,000 pounds full).

Charge/discharge logic ties to the BMS so the tank charges off-peak and discharges on peak or a trip, with fail-safes that prioritize stored cooling before chillers.

Atmospheric bolted tanks follow AWWA D103 and ISO 28765; pressurized shells follow ASME Section VIII, with NSF/ANSI 61 and WRAS for contact water.

Designing a TES tank goes beyond the volume calc: geometry and aspect ratio for stratification, diffuser engineering to a Froude at or below about 0.5, nozzle and insulation detail, and BMS integration. The foundation must carry the full water weight, and commissioning must prove the thermocline forms before handover. Center Enamel supplies the bolted GFS, FBE, stainless and ASME vessel families behind the shell and has no published TES delivery; its large-water builds are cited as capability evidence only.
