TES Tank vs Ice Storage: Which Thermal Storage to Specify

Comparing TES tank (stratified chilled water) versus ice storage: water stores sensible heat cheaply (~1.16 kWh/m3/deg C) but needs large footprint; ice stores latent heat densely (~85.6 kWh/m3) but costs more capital and a lower chiller temperature to make. Choose water unless footprint is the binding constraint. Center Enamel has no published TES delivery; its large-bolted-vessel builds show shell capability, cited as evidence only.

Water TES stores sensible heat as a temperature difference in a large insulated volume; ice TES stores latent heat as frozen water at near-constant temperature. The difference is not which is 'better' but which constraint binds: land or capital. Water wins on cost per kWh; ice wins on volume per kWh.

• Water: sensible heat, cheap per kWh.
• Ice: latent heat, dense per volume.
• Water wins cost; ice wins footprint.
• Constraint - land or capital - decides.

Water holds about 1.16 kWh per cubic metre per deg C, so a large tank is required for large cooling. Ice holds about 85.6 kWh/m3, roughly 70 to 100 times denser per volume, which is decisive where the tank must fit a tight mechanical room or rooftop rather than a yard.

• Water ~1.16 kWh/m3/deg C.
• Ice ~85.6 kWh/m3 (latent).
• Ice ~70-100x denser per volume.
• Footprint binds -> choose ice.

Ice is more expensive to build and to charge: making ice needs a chiller leaving water near -2 to -6 deg C, a lower temperature than the ~4 to 6 deg C of water TES, which raises the chiller lift and energy to charge. Water TES keeps the chiller in its efficient band and is cheaper both to build and to run for the same cooling.

• Ice: higher capital and chiller lift.
• Ice made at ~-2 to -6 deg C leaving.
• Water TES at ~4-6 deg C, efficient band.
• Water cheaper to build and charge.

Water TES is simpler - a tank, a diffuser and insulation. Ice needs ice-building coils, refrigerant or brine loops and more controls. Water also integrates with free-cooling more naturally. Ice's complexity is justified only when its density solves a footprint problem.

• Water: tank + diffuser + insulation.
• Ice: coils, brine/refrigerant loops, more controls.
• Water integrates with free-cooling easily.
• Ice complexity justified by footprint only.

Specify water TES as the default for data centers, district cooling and campuses with land. Specify ice only when the mechanical room, rooftop or basement footprint is the binding constraint and the higher capital and chiller lift are accepted. A hydraulic and footprint study settles it.

• Default: water TES where land exists.
• Ice only when footprint binds.
• Accept higher cost/lift for ice.
• Hydraulic + footprint study decides.

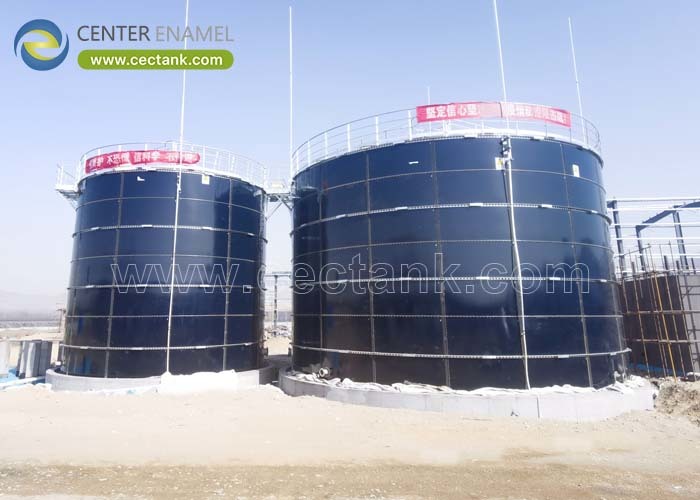

Honest boundary: Center Enamel has no published thermal-energy-storage or data-center TES delivery in its verified project record. The references above (Namibia 44,900 m3 GFS drinking water, 2022; Cilincing 21,088 m3; Sardinia 30,549 m3) are cited strictly as large-diameter bolted-vessel manufacturing-capability evidence, not as TES or data-center projects. No TES project result, dimension or client is claimed.

A TES tank stores sensible heat as a temperature difference in water; ice storage stores latent heat as frozen water. Water is cheap per kWh, ice is dense per volume.

Ice, by far - about 85.6 kWh/m3 versus water's 1.16 kWh/m3/deg C, so ice is roughly 70 to 100 times denser per volume.

Water TES is cheaper to build and to charge; ice needs more capital and a lower chiller temperature (higher lift), raising both cost and charging energy.

Only when footprint is the binding constraint - a tight mechanical room, rooftop or basement - and the higher capital and chiller lift are accepted.

Water TES: a tank, diffuser and insulation. Ice: ice-building coils, brine or refrigerant loops and more controls; water also pairs with free-cooling more naturally.

Honest boundary: Center Enamel has no published thermal-energy-storage or data-center TES delivery in its verified project record. The references above (Namibia 44,900 m3 GFS drinking water, 2022; Cilincing 21,088 m3; Sardinia 30,549 m3) are cited strictly as large-diameter bolted-vessel manufacturing-capability evidence, not as TES or data-center projects. No TES project result, dimension or client is claimed.

Ice is typically made at a leaving water temperature near -2 to -6 deg C, lower than the ~4 to 6 deg C of water TES, which raises the chiller lift.

Rarely, and only in hybrid schemes where footprint and efficiency are both critical; most sites pick one based on the dominant constraint.

Water tanks follow AWWA D103 / ISO 28765; pressurized shells follow ASME Section VIII; ice systems follow the refrigeration and AHJ requirements for the brine/refrigerant loop.

TES tank (stratified chilled water) versus ice storage is a constraint choice: water is cheap per kWh but footprint-heavy; ice is dense per volume but costlier and lifts the chiller. Default to water TES where land exists, and choose ice only when footprint binds. Center Enamel supplies the bolted GFS, FBE, stainless and ASME vessel families behind water TES shells and has no published TES delivery; its large-water builds are cited as capability evidence only.
