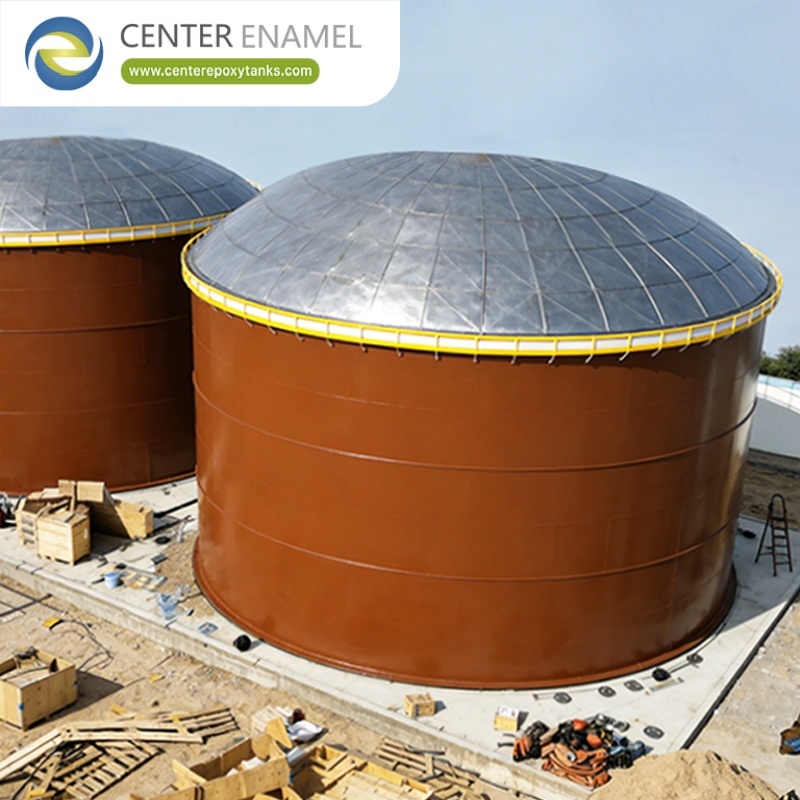

Low-pH Liquid Waste Storage Tanks

A low-pH liquid waste storage tank holds acidic effluent at pH as low as 1, and the proven linings are Glass-Fused-to-Steel and Fusion Bonded Epoxy built to AWWA D103-09. Engineered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel), each panel is holiday-tested at 1500 V and the shell is calculated to ISO 28765 for a 30-50 year containment life.

What a Low-pH Waste Tank Is

A low-pH liquid waste storage tank is a bolted steel vessel built to AWWA D103-09 whose lining resists acidic streams at pH 1-14. The Glass-Fused-to-Steel version carries a 0.25-0.45 mm enamel fused at 820-930 C, while the Fusion Bonded Epoxy version carries a 250-450 um coat, both holiday-tested at 1500 V for a 30-50 year containment life.

• Code: AWWA D103-09.
• pH: 1-14 range.
• Coat: enamel or FBE.
• Life: 30-50 years.

How the Tank Resists Acid

The seal relies on a pinhole-free lining verified at 1500 V per panel and 8.8-grade bolts with gaskets that keep the acidic waste away from bare steel. Because the enamel is inert at 6.0 Mohs hardness and the FBE resists pH 1-14, the 30-50 year shell keeps its tightness while the waste pH swings from below 2 to alkaline. The factory test record is the proof.

• Test: 1500 V panel.
• Bolts: 8.8-grade gasket.
• pH: 1-14 tolerant.
• Hardness: 6.0 Mohs.

Key Types, Components, and Features

The family covers the GFS acid tank and the FBE acid tank, each with 8.8-grade bolting and a fixed or membrane roof. Core parts are the coated panels, the manways, the waste nozzles, and the level instruments. A documented AWWA D103-09 and ISO 28765 calculation and a 1500 V holiday test are the features that qualify the tank for low-pH duty.

• GFS: enamel lining.
• FBE: epoxy lining.
• Bolts: 8.8-grade.
• Test: 1500 V holiday.

Applications of Low-pH Waste Tanks

They serve landfill leachate, acid pickling, and chemical wastewater where the pH can fall below 2 and attack painted steel. A 30-50 year GFS or FBE tank is also used for equalization and treatment buffer on the same site. The inert lining is why the same tank family covers both acidic and alkaline waste.

• Leachate: pH below 2.
• Pickling: acid waste.
• Chemical: process effluent.
• Buffer: treatment feed.

Technical Considerations

Technically the steel is blasted to Sa 2.5, the lining is fused or cured to 0.25-0.45 mm enamel or 250-450 um epoxy, and each panel passes a 1500 V holiday test before shipment. The shell is calculated to AWWA D103-09 and ISO 28765, the bolt torque is recorded, and an inspection package covers every step. Design life runs 30-50 years with routine gasket checks.

• Blast: Sa 2.5 anchor.
• Coat: 0.25-0.45 mm / 250-450 um.
• Test: 1500 V holiday.
• Life: 30-50 years.

How to Select a Low-pH Waste Tank

Select by matching the waste pH (confirm below 2), the storage volume (20-60,000 m3), and the lining to a GFS or FBE tank with a documented 1500 V test and 8.8-grade bolts. Ask the supplier for the AWWA D103-09 and ISO 28765 calculation, the holiday-test record, and the reference plants. Reject any offer that cannot show the lining thickness certificate.

• Confirm: pH below 2.
• Match: volume and lining.
• Demand: 1500 V record.
• Verify: ISO 28765 math.

Project Case Study

A verified landfill leachate project in Hebei, China used a 2,864 m3 Glass-Fused-to-Steel (GFS) bolted tank built in 2021 to store low-pH leachate with an enamel roof. The 0.25-0.45 mm enamel coat was holiday-tested at 1500 V and the 8.8-grade bolted seams held the structure, demonstrating a low-pH liquid waste tank on a real landfill.

• Project: Hebei landfill leachate
• Location: China, Asia
• Industry: Waste management
• Application: Landfill leachate (low pH)
• Product: GFS bolted tank
• Capacity: 2,864 m3
• Quantity: 1 tank
• Material: Glass-Fused-to-Steel
• Standards: AWWA D103-09 / ISO 28765
• Year: 2021

About Shijiazhuang Zhengzhong Technology Co., Ltd.

Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) operates quality-controlled coating lines for both Glass-Fused-to-Steel and Fusion Bonded Epoxy panels, founded in 2008 and exporting to more than 100 countries. Its low-pH program is documented under ISO 9001 and verified at 1500 V per panel, giving operators a traceable lining certificate for pH 1-14 duty.

• Founded: 2008 in China.
• Coatings: GFS and FBE.
• QC: ISO 9001.
• Test: 1500 V per panel.

Advantages and Limitations

Advantages are the 1500 V-verified lining, the pH 1-14 tolerance, and rapid bolted erection that avoids field welding. Limitations are that the exact waste chemistry should be confirmed and the site must provide a level foundation and secondary containment. The tank is not for bulk hydrocarbons.

• Pros: pH 1-14.
• Pros: 1500 V seal.
• Limit: confirm chemistry.
• Limit: secondary bund.

Comparison of Low-pH Linings

Against painted welded steel, the GFS or FBE lining wins on 30-50 year corrosion life and a 1500 V-verified seal; against concrete it wins on speed and weight. The table contrasts the common materials for low-pH duty so the choice matches the pH and the budget.

• GFS: enamel lining.
• FBE: epoxy lining.
• Welded: shorter life.
• Concrete: slow build.

Conclusion

A low-pH liquid waste storage tank is defined by a lining verified at 1500 V, an AWWA D103-09 shell, and a 30-50 year containment life for pH 1-14 waste. Specify the lining, demand the holiday-test record, and the tank will hold acidic waste without coating loss.

• Spec: AWWA D103-09.
• Verify: 1500 V test.
• Confirm: pH range.

Frequently Asked Questions (FAQ)

What is a low-pH liquid waste tank?

It is a bolted steel tank built to AWWA D103-09 with a Glass-Fused-to-Steel or Fusion Bonded Epoxy lining that resists acidic liquid waste at pH 1-14 for a 30-50 year life.

What pH can it handle?

The GFS enamel and the FBE epoxy both tolerate pH 1-14; always confirm the exact waste chemistry, especially when the pH falls below 2.

What capacity is available?

Single bolted tanks range from 20 m3 to 60,000 m3, and larger waste systems use multiple parallel tanks.

What standards apply?

The shell follows AWWA D103-09 and ISO 28765, the lining is verified at 1500 V, and the program is documented under ISO 9001.

How is it installed?

Panels are bolted on a prepared foundation by local crews under supplier supervision; no interior field welding protects the lining.

Is it suitable for landfill leachate?

Yes. Landfill leachate is a documented application; the inert lining resists the acidic, sulfide-rich stream.
