Double Wall Chemical Storage Tanks: Secondary Containment for Hazardous Liquids

A single-wall chemical tank fails in the worst possible way: silently, from the outside in or the inside out, with the first evidence appearing as contaminated ground or a reportable release. Across chemical manufacturing sites, water treatment plants dosing coagulant and hypochlorite, and industrial facilities storing acids and alkalis, the pattern is familiar — corrosion begins at a seam or a fitting, the bund was never sized to hold a credible release, and the incident is discovered by whoever walks past rather than by any monitoring system. Regulators have responded by shifting the burden from response to prevention, which is why secondary containment has moved from good practice to a permitting condition in most jurisdictions.

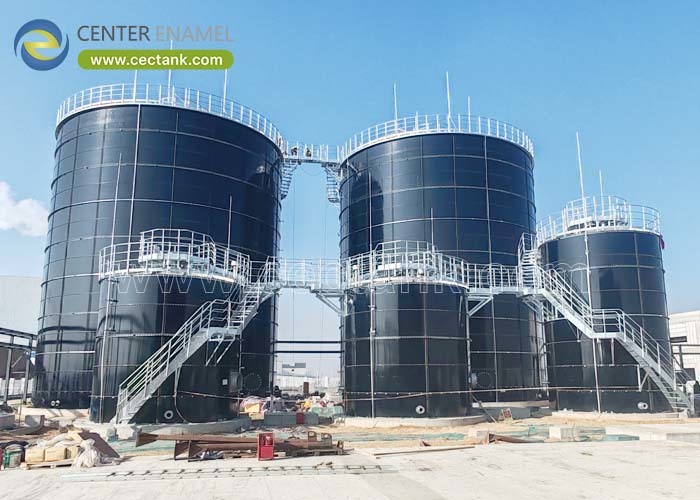

Double wall chemical storage tanks address this by building the containment into the tank rather than around it. An outer wall forms an integral bund that captures any release from the primary vessel, with an interstitial space that can be monitored continuously, so a breach is detected the moment it occurs instead of when it becomes visible. Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) engineers bolted steel tank systems for chemical duty — glass-fused-to-steel, epoxy-coated, and stainless steel — manufactured under ISO 9001 and delivered to more than 100 countries.

1. What Makes a Chemical Tank Genuinely Double Wall?

A genuine double wall system provides a second, load-bearing barrier around the primary vessel with a monitored interstitial space — not simply a painted outer skin or a separate concrete bund. The distinction matters because only an integral outer wall gives containment that moves with the tank, resists the same chemical, and can be instrumented for continuous leak detection.

• Primary Vessel: The inner tank holding the chemical, with material and coating selected against the specific concentration, temperature, and pH of the stored liquid.
• Integral Outer Wall: A second steel wall forming the containment volume, engineered to hold the required proportion of the primary capacity rather than merely to shield it.
• Monitored Interstitial Space: The annular gap between walls, fitted with a sensor or inspection point so any ingress of liquid registers immediately rather than accumulating unnoticed.
• Compatible Sealing: Gaskets, sealants, and nozzle details selected for the stored chemical, because a containment system is only as good as its weakest penetration.
• Accessible Annulus: Inspection ports and, where specified, enough clearance for visual or instrumental examination of the outer wall of the primary vessel.

2. How Much Containment Capacity Does a Chemical Tank Require?

Most regulatory frameworks require secondary containment of at least 110% of the capacity of the largest single container, or 100% of that container plus 10% of the aggregate volume of all others in the same bunded area. The governing principle is that containment must hold a credible release, not a token volume, and it must be verified as impermeable and chemically compatible with what it would hold.

• 110% of Largest Container: The most widely applied rule — containment must exceed the full volume of the largest tank by a margin that accounts for precipitation and residue.
• 100% Plus 10% Aggregate: An alternative formulation used where multiple tanks share a bunded compound, capturing the largest vessel plus a proportion of the remainder.
• Chemical Compatibility: The containment material must resist the stored chemical, because a bund that dissolves or permeates during a release provides no protection at all.
• Impermeability: Containment surfaces must be impermeable for the duration of a release, which rules out unlined earth, cracked concrete, and unprotected soil.
• Precipitation Management: Outdoor bunds need provision for rainwater removal so containment capacity is not silently consumed before an incident occurs.

3. Which Material Suits Acid, Alkali, and Solvent Duty?

Material selection is driven by pH, concentration, temperature, and the presence of chlorides or oxidisers. Glass-fused-to-steel handles a wide pH band including strongly acidic service, stainless steel is specified where chlorides or hygienic requirements dominate, and epoxy systems suit milder chemical duty. The correct choice is always made against the specific chemical, never against a generic category.

• Glass-Fused-to-Steel: Fused at 820-930 °C into an inert surface that resists acids and alkalis across a wide pH range, with triple-coat 3C3F available for the most aggressive service.
• Stainless Steel 316L: Specified for high chloride content, oxidising chemicals, and hygienic pharmaceutical or food-grade chemical applications.
• Epoxy-Coated Steel: A cost-effective option for milder chemicals, treated water, and non-oxidising solutions within the coating's stated pH and temperature limits.
• Sodium Hypochlorite Note: Oxidising chlorinated solutions demand careful material selection and venting for the hydrogen generated during decomposition.
• Fittings and Penetrations: Nozzles, gaskets, and valves must be specified to the same chemical standard as the shell — the majority of releases originate at penetrations, not plate.

Center Enamel engineers chemical containment to the stored liquid rather than to a generic specification. Panels are glass-fused at 820-930 °C with 2C2F coverage as standard and 3C3F for aggressive service, every panel verified by 100% high-voltage holiday spark testing at 1500 V, with adhesion measured at 3450 N/cm². Shells are bolted with grade 8.8 fasteners and validated by finite element analysis, produced to ISO 9001 with CE/EN 1090 coverage, and delivered to more than 100 countries on a standard 30-day schedule with a three-year warranty.

A bund that nobody monitors is a photograph of containment, not containment. Build the second wall into the tank and instrument the gap, and a breach becomes an alarm instead of an incident.

Frequently Asked Questions (FAQ)

What is a double wall chemical storage tank?

It is a tank with a second, load-bearing outer wall forming integral secondary containment around the primary vessel, with a monitored interstitial space. If the inner wall is breached, the chemical is captured in the annulus or outer volume and the leak registers on the monitoring system rather than escaping to the environment.

How much secondary containment capacity is required?

Most frameworks require at least 110% of the largest single container, or 100% of that container plus 10% of the aggregate volume of all others in the same compound. The containment must also be impermeable and chemically compatible with the stored liquid for the duration of a release.

Which material suits acid and alkali storage?

Glass-fused-to-steel covers a wide pH band including strongly acidic service, with triple-coat 3C3F available for the most aggressive duty. Stainless steel 316L is specified for high chloride, oxidising, or hygienic applications, while epoxy-coated steel suits milder chemical service within its stated pH and temperature limits.

Can double wall chemical tanks be customized?

Yes. Center Enamel configures primary and containment capacity, wall materials and coatings, interstitial monitoring method, nozzle and gasket specification, heating or insulation, and the full range of manways, flanges, ladders, and platforms to the chemical and the site layout.

Key Takeaways

• Double wall construction makes containment integral and instrumented, rather than a passive bund that fails silently.
• Design containment to at least 110% of the largest container, and confirm it is impermeable and chemically compatible.
• Select material against the specific chemical — GFS for wide pH duty, 316L for chlorides and oxidisers, epoxy for milder service.
• Most releases begin at nozzles and penetrations, so specify fittings and gaskets to the same standard as the shell.
