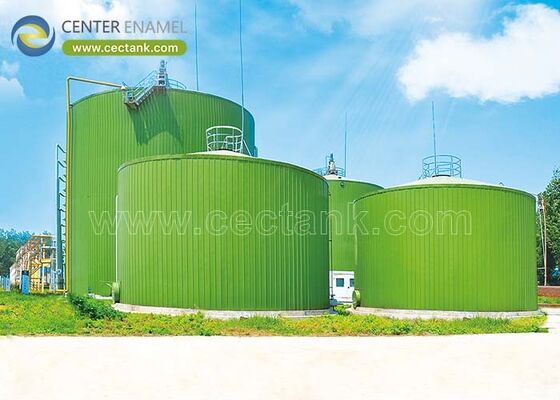

Combining Steel Tanks: Manifolded Bolted Systems for Capacity and Staging

The instinct on a growing site is to specify one large tank and be done with it. The problem appears later: the single vessel cannot be taken out of service without stopping the plant, its volume is fixed at the moment of purchase regardless of whether demand materialises, and if the site needs more capacity the only option is another full-scale civil and mechanical programme. Across municipal plants, industrial facilities, and agricultural operations, that rigidity is expensive — operators end up running a half-empty asset in early years and an undersized one in later years, with no inspection window in between. Treating storage as a system of combined tanks rather than a single vessel removes all three constraints at once.

Combining steel tanks means connecting multiple bolted vessels through a common header so they operate as one storage volume while remaining individually isolable. The arrangement delivers staged capacity, an inspection window without shutdown, and the ability to run process stages in series where the duty requires it. Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) supplies bolted GFS, epoxy-coated, stainless, and galvanized tanks engineered to a common connection standard, manufactured under ISO 9001 and delivered to more than 100 countries.

1. Why Combine Tanks Instead of Specifying One Large Vessel?

Combined tanks decouple capacity from a single delivery decision. Volume can be added when demand justifies it, any single tank can be isolated for inspection or repair while the rest of the system stays in service, and transport constraints stop being a limit on total capacity because each vessel travels as standard panels.

• Staged Capital: Install phase one now and add vessels in later budget cycles, rather than funding ultimate capacity before it is needed.
• Inspection Window: Isolate and drain one tank for cleaning or inspection while the remainder of the system continues to operate.
• Transport Independence: Every tank travels as factory panels, so total site capacity is no longer bounded by road or port limits on a single vessel.
• Redundancy: A mechanical issue in one vessel becomes a maintenance task rather than a plant outage, which matters most on continuous-process sites.
• Duty Separation: Different tanks in the same system can carry different contents or process stages, which a single vessel cannot do.

2. How Do You Manifold Bolted Tanks Correctly?

Manifolding is straightforward in principle but governed by hydraulics: the header must be sized so that tanks fill and draw at comparable rates, each tank needs its own isolation valve, and the system must be designed so no vessel is overfilled or left stagnant. Equalising lines, level control, and isolation discipline are what make a combined system behave like one tank rather than several that happen to be plumbed together.

• Sized Common Header: The header diameter must carry the combined flow without creating a hydraulic gradient that starves the furthest tank.
• Individual Isolation Valves: Every tank needs its own valve on both inlet and outlet so a single unit can be taken out of service without draining the system.
• Equalising Connections: Balanced piping equalises levels between tanks operating in parallel, preventing one vessel from overflowing while another sits low.
• Level Control and Alarms: A common level signal with independent high-level alarms per tank, so a control failure cannot fill one vessel beyond its design level.
• Stagnation Management: Rotation or draw sequencing keeps every tank in circulation, which matters for potable and biological duties where stagnation degrades quality.

3. When Should Tanks Run in Series Rather Than Parallel?

Parallel operation combines capacity; series operation creates process staging. Series is used when the liquid needs residence time or sequential treatment — sedimentation before storage, pH conditioning before discharge, or anaerobic followed by aerobic treatment — because splitting a single volume into stages gives a hydraulic profile that no single mixed tank can reproduce.

• Series for Residence Time: Two or more tanks in series approximate plug flow, delivering far better settling or reaction performance than one tank of equal total volume.
• Series for Sequential Treatment: Stages can be configured for sedimentation, then equalisation, then discharge, with each stage operated at its own level and retention.
• Parallel for Pure Capacity: Where the duty is simply volume, parallel operation with a balanced header is the simplest and most robust configuration.
• Switchable Arrangements: Valving can permit either mode, letting an operator run parallel during normal duty and series when a process upset requires staging.
• Foundation Consistency: Whatever the arrangement, tanks should share a common foundation design and connection standard so future units drop in without modification.

Center Enamel builds combined systems on a common engineering standard so vessels added years later match the originals. Panels are glass-fused at 820-930 °C with 2C2F coverage verified by 100% high-voltage holiday spark testing, joined with grade 8.8 bolting, and structurally validated by finite element analysis to AWWA D103-09. Production runs to ISO 9001 with CE/EN 1090 coverage and NSF/ANSI 61 where potable duty applies, delivered to more than 100 countries on a standard 30-day schedule with a three-year warranty.

One large tank is a bet on a demand forecast. A combined system is a decision you can revise — add a vessel, isolate a vessel, re-stage a vessel, without stopping the plant.

Frequently Asked Questions (FAQ)

Why combine multiple steel tanks instead of one large tank?

Combined tanks let capacity be added in phases as demand materialises, allow any single vessel to be isolated for inspection without shutting the plant, and remove transport limits on total site volume. A single large tank fixes volume at purchase and offers no inspection window.

How do you manifold bolted steel tanks?

Connect them to a common header sized for the combined flow, fit individual isolation valves on each tank inlet and outlet, provide equalising connections so levels balance, and install independent high-level alarms. Level control and draw sequencing keep every tank in circulation.

Can tanks be added later to expand capacity?

Yes, provided the foundation layout and connection standard were designed for the ultimate configuration at the outset. Because every tank is built from factory panels, later vessels match earlier ones and install without modifying the operating system.

Can the combined system be customized to our site?

Yes. Center Enamel configures tank quantity, diameter, height, and material per vessel, header and valve arrangements, series or parallel or switchable operation, roof type, and the full range of manways, flanges, ladders, platforms, and level instrumentation.

Key Takeaways

• Combined bolted tanks convert storage from a fixed purchase into a system that can be expanded, isolated, and re-staged.
• Correct manifolding requires a sized common header, individual isolation valves, equalising lines, and independent high-level alarms.
• Run tanks in parallel for pure capacity and in series where residence time or sequential treatment is needed.
• Design the foundation layout and connection standard for the ultimate configuration, so later vessels drop in unchanged.
