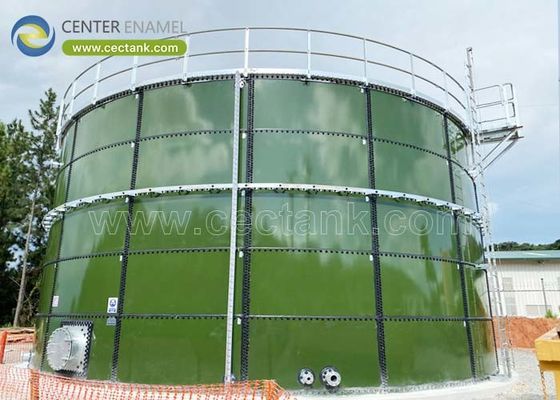

pH1 Liquid Storage Tanks Exporter Center Enamel: GFS Tanks for Extreme Acid Service

pH 1 is near battery-acid strength - among the most aggressive liquid-service conditions a storage tank can face. Almost no common tank survives it: unprotected steel dissolves in hours, and standard enamel formulations are not rated for it. Only a specially formulated, thick, multi-fired glass lining combined with acid-compatible seals can hold pH 1 without rapid failure. Specifying the wrong tank here is not a maintenance issue; it is an immediate asset-loss event.

Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) is a pH1 liquid storage tanks exporter, supplying GFS tanks with 3C3F enamel (pH 2-11) and acid-proof seals for extreme acid service. As China's first GFS manufacturer since 2008, Center Enamel has exported acid-duty tanks with ocean-freight packaging to more than 100 countries.

1. Why Is pH 1 the Hardest Service?

At pH 1 the liquid is strongly acidic - it dissolves steel in hours and destroys standard linings, so only a purpose-built system survives.

• Aggressive chemistry: pH 1 approximates strong acid; unprotected steel and most coatings fail rapidly.
• Standard enamel limit: normal GFS enamel (pH 3-11) is not rated for pH 1 - a special formulation is mandatory.
• Seal vulnerability: gaskets and roof membranes must also resist the acid, or the tank leaks at the joints.
• Thermal and concentration swing: process acids often vary in strength and temperature, stressing the lining further.

2. How Are pH1 Tanks Engineered?

Center Enamel meets pH 1 with the thickest multi-fired enamel grade, full spark testing, and acid-compatible seals throughout.

• 3C3F enamel: the three-coat, three-fire grade (pH 2-11, 270-480 microns, 1,500V test) gives the thickest acid barrier in the range.
• Firing at 820-930 degrees Celsius: each coat is fused to steel, building a layered, impermeable acid-proof surface.
• Acid-proof seals: gaskets, roof, and fittings use acid-resistant materials so joints match the lining.
• Verification: 100% holiday spark testing at 1,500V confirms continuity of the pH1-rated surface before shipment.

3. Which pH1 Liquids Need These Tanks?

pH1 service appears wherever strong acid is made, used, or recovered - each demands the special lining.

• Acid regeneration: spent-acid recovery and regeneration streams at pH 1 are contained without tank loss.
• Chemical process: strong-acid process and intermediate tanks in chemical and fertilizer plants.
• Mining and leach: aggressive acidic leachates and process liquors at the extreme low end of pH.
• Battery and electro: acid storage and process tanks in battery and electroplating operations.

Engineering Assurance

Center Enamel pH1 liquid tanks are built with 3C3F enamel fired at 820-930 degrees Celsius, 100% high-voltage holiday spark tested at 1,500V, manufactured under ISO 9001/45001, and fitted with acid-proof seals throughout - exported with ocean-freight packaging and installation support to more than 100 countries.

pH 1 does not negotiate. If the lining is not purpose-built for it, the tank is a countdown timer. The only honest answer is three coats of fused glass and seals that match

Frequently Asked Questions (FAQ)

What are pH1 liquid storage tanks?

They are storage tanks built for strongly acidic liquid at pH 1 - near battery-acid strength. Center Enamel exports them as GFS tanks with 3C3F enamel (pH 2-11, 270-480 microns, 1,500V tested) and acid-proof seals throughout, because standard enamel (pH 3-11) is not rated for pH 1.

Why can't standard GFS hold pH 1?

Standard GFS enamel is rated pH 3-11; pH 1 is below that range and would attack the lining. Only the thick, three-coat, three-fire 3C3F grade with acid-compatible seals is engineered for such extreme acid, and even then application limits must be confirmed.

What liquids at pH 1 are stored?

pH1 service includes spent-acid regeneration, strong-acid chemical process streams, aggressive mining leachates, and battery or electroplating acid tanks. Each requires the special lining and acid-proof seals.

Can pH1 tanks be customized and exported?

Yes - 3C3F enamel grade, capacity, roof, seals, heating, and fittings are engineered for the specific acid and concentration, with ocean-freight packaging and installation support for delivery to 100+ countries.

Key Takeaways

• pH 1 is near battery-acid strength - only a specially formulated, multi-fired glass lining survives it.
• Center Enamel uses 3C3F enamel (pH 2-11, 270-480 microns) with acid-proof seals for pH1 duty.
• Every panel is fired at 820-930 degrees Celsius and 100% spark tested at 1,500V.
• As an exporter, Center Enamel delivers pH1 tanks with ocean-freight packaging to 100+ countries.
