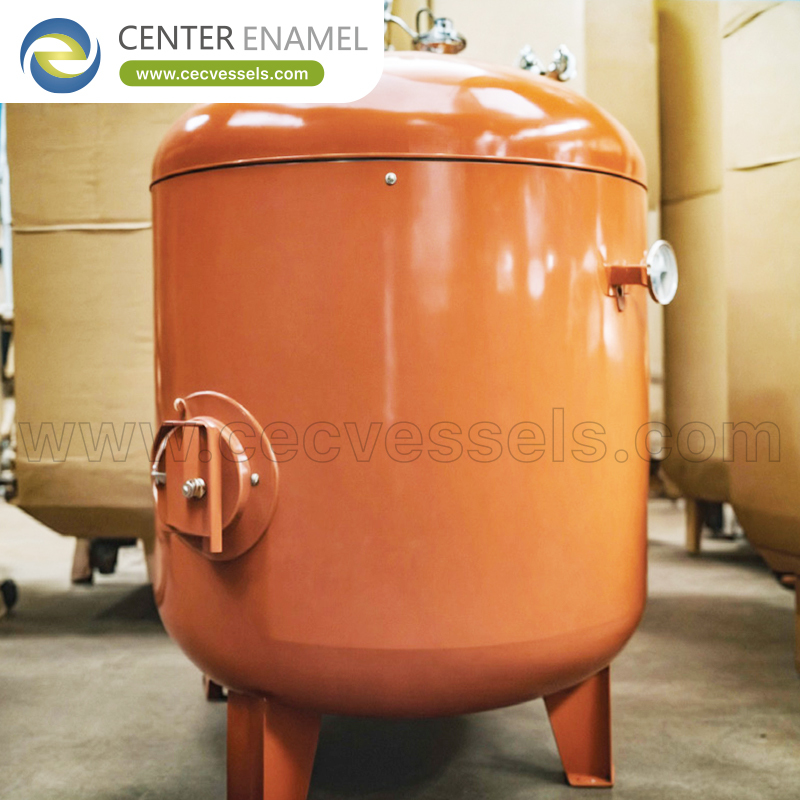

Answering the core question: What is a heat transfer reactor, and how does it manage thermal energy during chemical reactions? A heat transfer reactor is a chemical reactor specifically engineered to add or remove thermal energy from a reaction mixture through external or internal heat exchange surfaces, maintaining optimal reaction temperature and controlling exothermic heat release. The fundamental design equation is Q = U x A x delta-T_lm, where Q is heat duty (kW), U is the overall heat transfer coefficient (300-1600 W/m2-K depending on jacket type), A is heat transfer area (2-50 m2), and delta-T_lm is the logarithmic mean temperature difference between heating/cooling medium and process fluid. Common configurations include conventional jackets (U: 300-700 W/m2-K), half-pipe coils (U: 500-1000 W/m2-K), and dimple/convoluted jackets (U: 800-1600 W/m2-K) for exothermic, endothermic, and temperature-sensitive reactions.

1. Core Heat Transfer Principles in Reactor Design

Reactor heat transfer performance is governed by three engineering fundamentals:

• Overall Heat Transfer Coefficient (U-Value) The overall thermal resistance is the sum of individual resistances: 1/U = 1/h_i + 1/h_o + t_wall/k_wall + f_fouling. The internal coefficient (h_i) depends on the Nusselt number (Nu = h x D/k), which is correlated with Reynolds (Re) and Prandtl (Pr) numbers via the Sieder-Tate or Dittus-Boelter correlations. Agitated reactors typically achieve h_i values of 500-3000 W/m2-K for low-viscosity liquids (Re >10,000), declining to 100-500 W/m2-K for viscosities above 1000 cP.
• Thermal Time Constant and Transient Response The thermal time constant (tau = m x Cp / U x A) characterizes how quickly the reactor responds to temperature setpoint changes. A 2000 L reactor with U=500 W/m2-K, A=6 m2, and water-like properties (m=2000 kg, Cp=4180 J/kg-K) has tau = 2000 x 4180 / (500 x 6) = 2787 seconds (46 minutes). This time constant directly affects temperature control loop tuning and the maximum safe heat release rate for exothermic reactions per thermal stability criteria (Stoessel criticality classes 1-5).
• Jacket Configuration and Flow Pattern The heating/cooling jacket design determines the external heat transfer coefficient (h_o) and overall U-value. Conventional annular jackets with spiral baffles achieve h_o of 300-700 W/m2-K and U of 300-700 W/m2-K. Half-pipe coil jackets improve flow velocity (2-4 m/s) and achieve h_o of 1000-2000 W/m2-K, yielding U of 500-1000 W/m2-K. Dimple jackets create turbulence at dimple edges, achieving U of 800-1600 W/m2-K with lower jacket pressure drop.

2. Major Types of Heat Transfer Reactor Configurations

Industrial heat transfer reactor configurations are selected based on U-value requirements, pressure rating, and thermal duty:

• Conventional Jacketed Reactor An annular space between the reactor outer wall and a jacket shell carries heating/cooling medium (hot water, steam, thermal oil, or chilled brine). Spiral baffles in the jacket create a helical flow path at 1-3 m/s, achieving U-values of 300-700 W/m2-K. Suitable for general-purpose chemical synthesis with moderate exothermic heat release (<5 kW/m3). Maximum jacket pressure is typically 0.6-1.0 MPa.
• Half-Pipe Coil Reactor Half-pipe sections (DN50-DN100) are welded to the reactor exterior, creating discrete flow channels for heating/cooling medium at 2-4 m/s velocity. The higher flow velocity and smaller hydraulic diameter achieve U-values of 500-1000 W/m2-K. Half-pipe coils withstand higher jacket-side pressures (up to 2.5 MPa) and are preferred for high-pressure steam heating or reactions with heat release of 5-20 kW/m3.
• Internal Coil + Dimple Jacket Reactor Combines an internal helical or bayonet coil (U: 400-800 W/m2-K) with an external dimple jacket (U: 800-1600 W/m2-K) to maximize total heat transfer area. The internal coil provides additional area of 20-40% of jacket area, and the dimple jacket's high U-value supports rapid cooling. Used for highly exothermic reactions such as polymerization (20-100 kW/m3), nitration, and hydrogenation where thermal runaway risk requires high heat removal capacity.

Heat Transfer Reactor Configuration Comparison Matrix

Frequently Asked Questions (FAQ)

Q: What is the overall heat transfer coefficient of a conventional jacketed reactor?

A: A conventional annular jacket with spiral baffles typically achieves an overall heat transfer coefficient (U) of 300-700 W/m2-K. This is lower than half-pipe coil (500-1000 W/m2-K) and dimple jacket (800-1600 W/m2-K) configurations because the annular flow velocity is lower (1-3 m/s) and the effective heat transfer area is limited to the cylindrical wall surface. For comparison, the internal coil adds an additional area with U-values of 400-800 W/m2-K.

Q: How is the thermal time constant calculated for a heat transfer reactor?

A: The thermal time constant is tau = m x Cp / (U x A), where m is the mass of the reactor contents (kg), Cp is the specific heat capacity (J/kg-K), U is the overall heat transfer coefficient (W/m2-K), and A is the heat transfer area (m2). For a 2000 L water-based reactor with U=500 W/m2-K and A=6 m2, tau = 2000 x 4180 / (500 x 6) = 2787 seconds (approximately 46 minutes). This characterizes the reactor's transient thermal response and limits the maximum safe exothermic heat release rate.

Q: What is Wilson plot analysis and how is it used in heat transfer reactor characterization?

A: Wilson plot analysis is an experimental method to determine individual heat transfer coefficients (h_i, h_o) from measured overall U-values. By varying the agitator speed (N) while keeping jacket-side conditions constant, and plotting 1/U vs. 1/N^0.67 (for turbulent impeller correlation), the y-intercept gives the sum of all non-agitation-dependent resistances (jacket-side, wall, fouling). This separates internal and external coefficients, enabling targeted optimization of agitation design, jacket flow rate, or anti-fouling measures.

Q: How does viscosity affect heat transfer reactor performance?

A: As viscosity increases, the internal heat transfer coefficient (h_i) decreases significantly because the Nusselt number is inversely proportional to viscosity raised to the 0.14 power (Sieder-Tate correction). For viscosities above 1000 cP, h_i drops from 500-3000 W/m2-K (low viscosity) to 100-500 W/m2-K, reducing overall U by 50-70%. High-viscosity reactors require close-clearance impellers (anchor, helical ribbon) with scrapers, internal coils with larger area, or wiped film/helical ribbon designs that force surface renewal.
