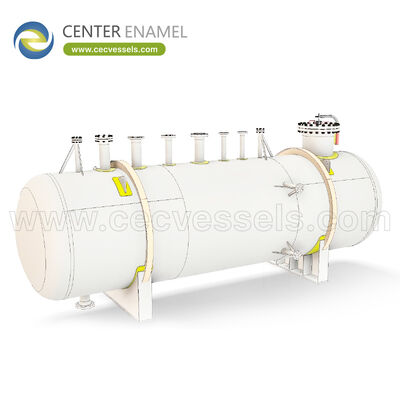

Answering the core question: What is a high-pressure reactor, and what engineering separates it from ordinary pressure vessels? A high-pressure reactor is a heavy-wall reaction vessel engineered to conduct chemistry at pressures far above standard process equipment—commonly from 70 bar up to several hundred bar in stirred autoclaves, and 1,500–3,000 bar in low-density polyethylene service. Extreme pressure demands thick-wall stress analysis under ASME Section VIII Division 2 or 3, fracture-tough materials resistant to hydrogen embrittlement, and layered safety systems of burst discs, relief valves, and interlocks protecting operators from stored compression energy.

1. Core Design Principles of High-Pressure Reactors

High-pressure engineering centers on wall mechanics, material integrity, and layered protection:

• Thick-Wall Stress Analysis: Once wall thickness exceeds roughly one-tenth of the radius, simple thin-shell formulas fail. Lamé equations and finite element analysis map the through-wall stress gradient, and fatigue analysis covers the thousands of pressurization cycles over vessel life.
• Hydrogen Embrittlement Resistance: High-pressure hydrogen penetrates steel lattice and embrittles welds and high-strength zones. Material selection therefore favors low-alloy chrome-molybdenum steels, austenitic stainless grades, or cladding, with strictly controlled hardness and post-weld heat treatment.
• Layered Safety Architecture: No single device is trusted alone: primary rupture discs sized for full relief flow, backed by safety valves, gas detection, remote operation behind blast walls, and hard interlocks that isolate feed gas on any deviation.

2. Major Types of High-Pressure Reactors

Industry deploys specialized high-pressure configurations by chemistry and phase behavior:

• Stirred High-Pressure Autoclaves: Batch vessels from 1-liter laboratory units to 50 m³ plant reactors, equipped with mechanical or magnetic agitation, internal cooling coils, and gas sparging. The standard platform for catalytic hydrogenation and carbonylation.
• Trickle-Bed High-Pressure Reactors: Fixed catalyst beds where liquid feed trickles downward concurrent with high-pressure hydrogen—dominating refinery hydrotreating and hydrocracking at 70–200 bar.
• Supercritical and Ultra-High-Pressure Reactors: Vessels operating above critical points—supercritical CO2 extraction and reaction at 74–350 bar, and tubular or autoclave LDPE polymerization at 1,500–3,000 bar, the most severe pressure service in the chemical industry.

High-Pressure Reactor Technologies Comparison Matrix

Frequently Asked Questions (FAQ)

Q: At what pressure is a reactor considered high-pressure?

A: There is no single threshold, but equipment handling pressures above roughly 70 bar (about 1,000 psi) is generally classed as high-pressure, with ASME Division 2 or 3 design rules and special safety systems becoming standard practice.

Q: What materials are used to build high-pressure reactors?

A: Thick forged chrome-molybdenum steels (such as SA-336 F22) dominate hydrogen service, 316L stainless serves corrosive duty, and superalloy cladding or liners protect against aggressive media while the wall carries the pressure load.

Q: What safety devices protect high-pressure reactors?

A: A layered approach is mandatory: rupture discs and safety valves sized for worst-case relief flow, pressure transmitters with independent high-pressure trips, burst-proof enclosure or remote operation, and interlocks that shut feed gas on detection of any deviation.

Q: Which industries rely on high-pressure reactors?

A: Refining (hydrotreating, hydrocracking), polymer production (LDPE at up to 3,000 bar), pharmaceutical hydrogenation, and supercritical CO2 extraction in food and nutraceutical processing.
