Sizing a Chilled Water Buffer Tank for a Data Center

Sizing a chilled water buffer tank is less about a fixed rule and more about matching stored water volume to your chiller's minimum run-time and the load steps your data center actually sees. Get it right and the compressors stop hunting; get it wrong and you either waste money on steel or still short-cycle. This article walks the calculation.

To size a chilled water buffer tank for a data center, set the volume so that the smallest expected load step is absorbed within the chiller's minimum run-time. A common starting point is the volume that holds a few minutes of chiller flow at supply temperature; the exact number comes from the chiller's minimum modulation and your load-step analysis.

Every chiller has a minimum run-time and a minimum modulation below which it must shut off. If a load dip would otherwise force a shutdown, the buffer tank supplies that dip from stored chilled water while the chiller keeps running. The buffer volume therefore scales with how long you want the chiller to stay on through a load step.

• Chiller minimum run-time sets the floor.
• Buffer supplies the dip instead of shutting the chiller off.
• Longer run-time target needs larger volume.
• Smaller chillers often need relatively larger buffers.

A widely used relationship is V = (t x Q) / (60 x rho x dT), where V is buffer volume in m3, t is the desired run-time in minutes, Q is chiller capacity in kW, rho is water density, and dT is the allowable temperature rise across the buffer. In practice engineers iterate this with the real load-step data. The Italy Sardinia chilled process water tank (2025, 30,549 m3) and the Singapore buffer tank (2020, 3,462 m3) are examples where stored-water volume was matched to a process duty rather than guessed.

• V scales with target run-time and chiller capacity.
• dT is the allowable buffer temperature rise.
• Iterate with measured load-step data.
• Do not over-size; steel cost grows with volume.

The usable buffer is limited by how much the water temperature can rise before the supply temperature drifts out of tolerance. A stratified buffer (warm return on top, cold supply drawn from bottom) uses the full dT; a fully mixed tank uses less. Keep the buffer piped to encourage stratification.

• Usable volume depends on allowable dT.
• Stratified piping uses the full temperature spread.
• Mixed tanks waste part of the volume.
• Tune dT to your supply-temperature tolerance.

Decide early whether the buffer is atmospheric or pressurized. Atmospheric buffers simplify the tank but need correct pump head; pressurized buffers suit closed loops with higher system pressure. The piping must let flow pass through the tank during low-load periods, typically a bypass with the chillers.

• Atmospheric vs pressurized decided up front.
• Bypass piping routes flow through tank at low load.
• Pump head must cover tank and loop losses.
• Coordinate with the BMS control sequence.

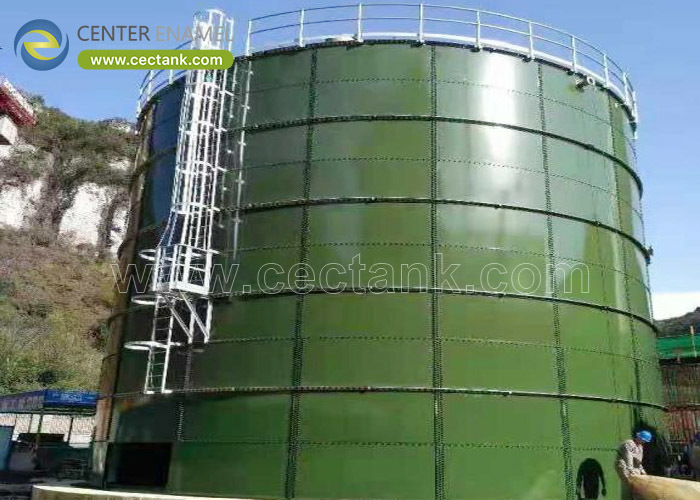

Center Enamel supplies bolted steel tanks in precise volumes from panel modules, so the tank can be matched to the calculated buffer rather than rounded to a standard size. Coated GFS or FBE linings keep the water clean in continuous service. Share your chiller run-time and load-step data and we return a volume and layout.

• Modular bolted panels match calculated volume.
• GFS / FBE lining for clean water.
• Volume matched, not rounded to standard.
• Layout drawn from your pump and BMS data.

A common start is a few minutes of chiller flow at supply temperature, then refined with the chiller's minimum modulation and your real load steps. Avoid guessing a fixed fraction without the run-time check.

Yes. A larger allowable temperature rise across the buffer reduces the required volume, because each cubic meter stores more usable cooling.

Stratification lets you use the full temperature spread, so a stratified buffer does more with less steel than a mixed one. Pipe it to draw cold from the bottom.

It follows your loop. Atmospheric is simpler and cheaper; pressurized suits closed loops where system pressure must be maintained at the tank.

Yes. Over-sizing wastes steel and floor space and can slow temperature response. Size to the load step, not to a round number.

Bolted panel construction lets us match the tank to the calculated volume closely, rather than forcing a standard size.

Sizing a chilled water buffer tank comes down to one question: how much stored chilled water keeps the chiller running through your smallest load step. Use the run-time and delta-T relationship, prefer stratified piping, and match the tank volume to the calculation rather than a catalogue size. Done well, the buffer pays back through avoided short-cycling and steadier supply temperature.
