Pressurized vs Atmospheric Chilled Water Tanks: Which to Specify

One of the first decisions for a chilled-water storage tank is whether it should be pressurized or atmospheric. It drives cost, complexity, safety, and how the tank ties into the loop. This article gives a clear selection logic so you specify the right pressure class the first time.

Specify an atmospheric chilled-water tank when the loop can tolerate an open or low-pressure connection and you want lower cost and simpler QA; specify a pressurized tank when system pressure must be held at the tank or the loop is closed and cannot admit air. The choice follows the loop hydraulics, not a default.

How the loop decides

In an an open or indirectly connected loop, an atmospheric tank is simple and cheap - no pressure code, simpler nozzles. In a closed loop where admitting air would cause corrosion or pressure loss, a pressurized tank keeps the system tight. Match the tank to the loop, not the other way around.

• Atmospheric: open or low-pressure loops.
• Pressurized: closed loops needing tight pressure.
• Follow loop hydraulics, not default.
• Air admission drives the decision.

Cost and complexity

Atmospheric tanks skip pressure-code shell design, reinforced nozzles, and hydrotest-to-code, so they cost less and erect faster. Pressurized tanks add shell thickness, nozzle reinforcement, gaskets, and code paperwork. The Dubai fire water tank (2025, 652 m3, atmospheric) and Shanghai SS304 fire water tank (2026, 317 m3) illustrate both ends.

• Atmospheric: lower cost, faster.
• Pressurized: thicker shell, more QA.
• Code paperwork adds on pressurized.
• Trade cost against loop need.

Safety and corrosion

Pressurized tanks keep air out, reducing corrosion and preventing cavitation at pumps. Atmospheric tanks must manage air and debris with a proper roof and vent. For chilled water, keeping air out often favors pressurized or well-roofed atmospheric designs.

• Pressurized keeps air out, less corrosion.
• Atmospheric needs roof and vent.
• Air out reduces pump cavitation risk.
• Roof quality matters for atmospheric.

When each is right

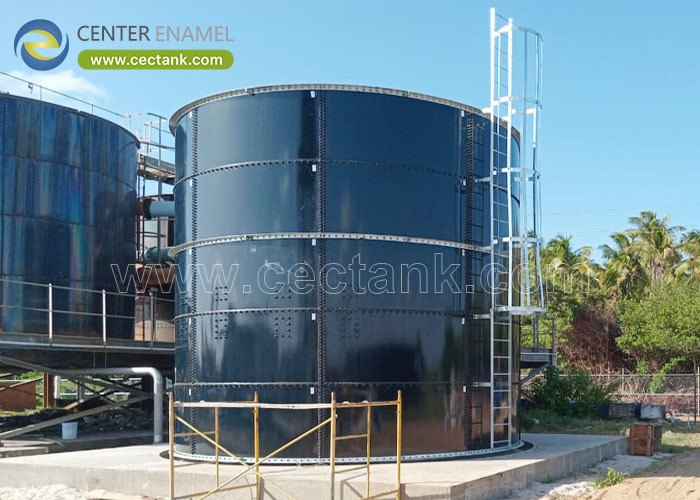

Use atmospheric for make-up, fire, and open cooling-tower buffer where the loop allows; use pressurized for closed chilled-water storage and where system pressure must be maintained. The Indonesia Cilincing tank (2024, 21,088 m3) shows a very large bolted tank; the Malta pressure vessel (2026) shows a coded pressure build.

• Atmospheric: make-up, fire, open buffer.
• Pressurized: closed chilled storage.
• Large bolted tanks proven.
• Coded pressure builds available.

Our supply range

Center Enamel supplies both atmospheric and pressure-rated bolted and welded water tanks with coated linings, so the selection is technical, not a catalogue limit. We help you pick the class from the loop and then build it.

• Both atmospheric and pressurized.
• Bolted and welded options.
• Coated linings throughout.
• Selection from loop, not catalogue.

Frequently Asked Questions

Which is cheaper, pressurized or atmospheric?

Atmospheric is cheaper - it avoids pressure-code shell design, reinforced nozzles, and code hydrotest.

When must I use pressurized?

When the loop is closed and system pressure must be held at the tank, or admitting air would cause corrosion or pressure loss.

Does atmospheric mean open to air?

Not necessarily - an atmospheric tank can be roofed and vented; 'atmospheric' refers to pressure class, not literally open.

Which is better for corrosion?

Pressurized keeps air out and reduces corrosion and cavitation risk; a well-roofed atmospheric tank manages air with a vent.

Can a large tank be atmospheric?

Yes. Very large bolted tanks such as the 21,088 m3 Indonesia Cilincing tank are atmospheric, roofed, and code-built for their duty.

Can you supply both types?

Yes. Both atmospheric and pressure-rated bolted/welded tanks with coated linings are supplied; selection follows your loop.

Pressurized versus atmospheric is a loop decision, not a preference. Atmospheric tanks win on cost and simplicity where the loop allows air-managed connections; pressurized tanks win where a closed loop must stay tight and air-free. Specify from the hydraulics, then build the chosen class with the right lining, nozzles, and seals - and remember a large tank can absolutely be atmospheric.
