Stainless Steel Blending Tanks: Material, Mixing, and Selection

A blending tank does exactly what its name says - it makes a uniform liquid from two or more streams - but the materials and mixing details decide whether it is fit for food, pharma, chemical or utility service. This article covers the choices that matter when you specify a stainless blending vessel.

A stainless steel blending tank is selected first by material - 304 for general duty, 316L (low-carbon) for chloride or acidic service - then by whether it needs a jacket for heating or cooling. Mixing is set by impeller diameter (about a third of tank diameter), baffles (about a tenth) and power per unit volume, not by motor size alone, and passivation plus proper welding are mandatory to keep the surface corrosion-resistant.

304 vs 316L: Match the Metal to the Liquid

Type 304 stainless is the general-purpose grade and suits most neutral or mildly aggressive streams. Type 316, and especially low-carbon 316L, adds molybdenum for resistance to chlorides and many acids - the right call for seawater-influenced, acidic or sanitary-corrosive duty. The 'L' (low carbon) matters because it avoids chromium-carbide sensitization during welding, which is exactly where stainless otherwise rusts.

• 304: general duty, neutral/mild streams.
• 316L: chlorides, acids, sanitary-corrosive service.
• Low carbon prevents weld-zone sensitization.

Jacketed or Unjacketed, and How to Mix

If the blend must be heated or cooled, the tank is jacketed (dimple or half-pipe) so the utility fluid never contacts the product. Mixing follows simple, reliable rules: an axial or radial impeller about one-third of the tank diameter, four baffles about one-tenth of the diameter to break swirl, and power specified per cubic metre of product. Motors are sized from that duty, not guessed.

• Jacket: dimple or half-pipe for heat transfer.
• Impeller ~T/3; baffles ~T/10 to stop swirl.
• Specify mixing power per m3, then the motor.

Passivation and Welding Discipline

Stainless is only stainless if its passive chromium-oxide film is intact. That means controlled welding (prefer 316L to avoid sensitization), pickling/passivation after fabrication, and protection from iron contamination (carbon-steel tools and dust will rust-spot the surface). Skipping passivation is the most common reason a 'stainless' tank stains.

• Passivate after welding - non-negotiable.
• Avoid iron contamination from tools/dust.
• Document weld procedure and post-clean.

Grade and Duty at a Glance

The grade follows the chemistry, not habit:

Project Reference

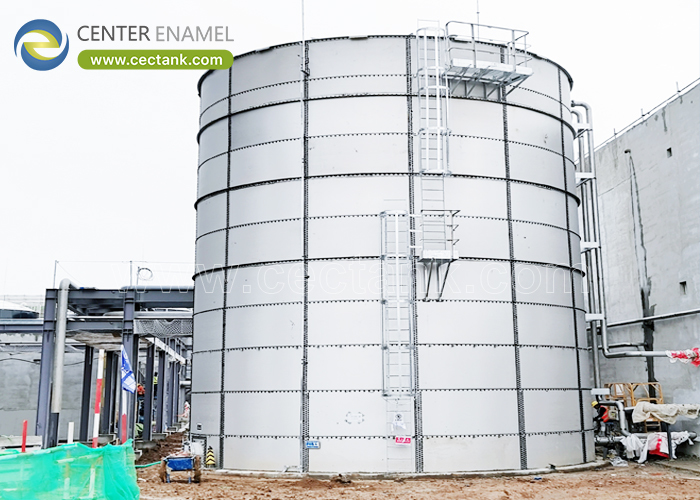

Delivered stainless and coated tanks show the family. The China Shanghai Fire Water Tank (SS304, 2026) used a 304 cone roof and 304 bottom plate (317 m3); the Chile Brine Storage Project (2022) used SS316L roof and floor on a 12.99 m x 4.8 m tank for corrosive brine; Russia (2024) added SS anaerobic reactors. These demonstrate stainless selected for the service, not by habit.

• Shanghai SS304 fire water 2026: 304 cone roof + bottom, 317 m3.
• Chile Brine 2022: SS316L roof & floor, Ø12.99 x 4.8 m.
• Russia 2024: SS anaerobic reactor tanks.

Company Expertise

Center Enamel fabricates stainless (304/316L) bolted and welded blending and processing vessels with passivation discipline and material selection matched to the duty - from food and beverage through chemical and brine service.

Frequently Asked Questions

When should I specify 316L instead of 304?

For chloride- or acid-bearing streams, seawater influence, or any sanitary-corrosive duty. The low-carbon 'L' grade also resists weld-zone sensitization.

Do I need a jacket on a blending tank?

Only if you must heat or cool the blend. A jacket (dimple or half-pipe) keeps the utility fluid separate from the product.

How is blending-mixer power set?

By power per cubic metre and impeller/baffle geometry (impeller about a third of tank diameter, four baffles about a tenth), not by motor size alone.

Why does passivation matter so much?

Because stainless corrosion resistance comes from its passive film; welding and fabrication disturb it, and only pickling/passivation restores it.

Can stainless blending tanks be bolted?

Yes. Bolted stainless (with gasketed seams) is an option for some services and eases site erection; fully welded is used where hygiene codes demand it.

What is the weak point of stainless in service?

Warm, chloride-bearing service (pitting and stress-corrosion cracking) and abrasive slurries - both are handled by grade choice and by not subjecting stainless to what it cannot take.

A stainless blending tank is a material and mixing problem before it is a vessel problem: pick 304 or 316L by the liquid, decide the jacket by the thermal duty, mix by geometry and power-per-volume, and never skip passivation. Done right, it is a low-maintenance workhorse across food, pharma, chemical and water.
