What Makes a Storage Tank Good Quality: A Buyer's Checklist

A good quality storage tank is one whose material, coating, structural design, and quality control match the stored product and site for a 30-50 year service life without premature failure. Quality is proven by standards such as AWWA D103-09 and ISO 28765, not by appearance. Engineered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel), bolted Glass-Fused-to-Steel (GFS) tanks demonstrate this by fusing vitreous enamel at 820-930°C onto steel for an inert, holiday-tested shell.

What a Good Quality Storage Tank Is

A good quality storage tank is defined by how well its material, coating, structural calculation, and quality control match the stored product and the site for a 30-50 year design life. Quality is documented, not cosmetic: it shows in the code basis (AWWA D103-09, ISO 28765), the coating thickness of 0.25-0.45 mm, and the 1500 V holiday test that proves the shell is pinhole-free before it ever holds product.

• Documented: calculation and inspection, not a sales claim.
• Matched: coating chosen for the actual chemistry.
• Verified: holiday-tested at 1500 V per square meter.
• Rated: 30-50 year design life with inspection.

Key Characteristics, Components, and Types

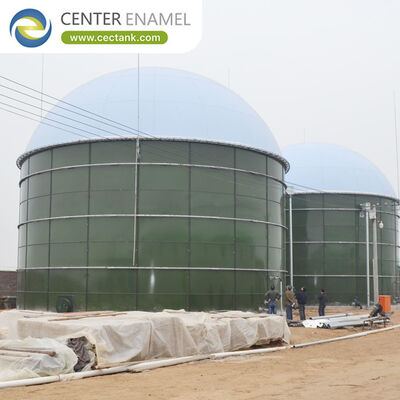

Quality storage tanks fall into four families. Bolted Glass-Fused-to-Steel (GFS) tanks fuse vitreous enamel at 820-930°C for an inert surface. Welded steel tanks are field-welded and suit very large volumes to 150,000 m3. Concrete tanks are cast in place for permanent duty. Fiberglass tanks serve small, neat chemical duties below 5,000 m3. Each is good quality only when its corrosion defense matches the product.

• GFS: inert enamel, bolted, fast erection.
• Welded: large volumes, longer site work.
• Concrete: permanent, heavy civil.
• FRP: small neat chemical duty.

Applications and Operating Conditions

Good quality tanks serve potable water, wastewater, fire protection, agriculture, and industrial process liquids. A municipal utility needs NSF/ANSI 61 certified contact surfaces; a mine needs abrasion resistance; a farm needs hygiene and weather sealing. Matching the tank family to the duty is the first test of quality, because a coating that is wrong for the chemistry fails long before its design life.

• Municipal: NSF/ANSI 61 potable contact.
• Mining: abrasion-resistant lining.
• Agriculture: hygiene and weather seal.
• Industrial: chemistry-matched coating.

Technical Considerations

Technically, quality is proven on the shop floor. Steel is blasted to Sa 2.5, the coating is applied to a verified DFT of 0.25-0.45 mm, and every square meter is holiday-tested at 1500 V. Joints use 8.8-grade bolts. The shell is calculated to AWWA D103-09 and ISO 28765, and an inspection package records every step so the asset stays bankable and permit-ready.

• Blast: Sa 2.5 for adhesion.
• Coating: 0.25-0.45 mm DFT verified.
• Test: 1500 V holiday check.
• Bolts: 8.8-grade joints.

Advantages and Limitations

A documented quality tank resists corrosion for 30-50 years and shortens on-site work through bolted construction. The real limitation is that no single coating fits every chemistry: GFS is not the right choice for feedstock below pH 5.5 without a correction step, and buyers must confirm product corrosivity during specification rather than after the tank is built, or the warranty is at risk.

• Advantage: 30-50 year inert shell.
• Advantage: fast bolted build.
• Limitation: not every chemistry fits one coating.
• Boundary: confirm corrosivity in spec.

Design Parameters

The figures below are the load-bearing values a supplier should quote per tank. They let an engineer confirm the shell, coating, and joint system before steel is ordered, and they are the numbers an insurer and a regulator will ask for during review of any good quality storage tanks project.

Comparison and Selection Guide

Against welded steel, concrete, and fiberglass, a Glass-Fused-to-Steel (GFS) tank wins on corrosion resistance and build speed for the 20-60,000 m3 range. Use the table to match the material to product corrosivity, site logistics, and required life when judging good quality storage tanks.

Best Practices: How to Judge Quality

To judge good quality storage tanks, require the ISO 28765 calculation, a 1500 V holiday-test report, and a coating-thickness log per tank, plus references from similar duties. Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) issues drawings, NDE records, and inspection packages per tank. Reject suppliers who offer only a coating claim and a low price with no calculation or test evidence.

• Ask for: ISO 28765 shell calculation.
• Verify: 1500 V holiday test, 0.25-0.45 mm DFT.
• Confirm: comparable references in service.
• Reject: bare claims with no evidence.

Good quality is evidence, not appearance. Specify the code basis, the coating proof, and the inspection record, then choose a provider who can show all three. A tank that documents its quality is the one that still performs at year 30 of its 30-50 year design life.

Frequently Asked Questions (FAQ)

What standard proves a storage tank is good quality?

The bolted shell is designed to AWWA D103-09 and ISO 28765, with materials and welding controlled under ISO 9001 and ISO 45001. Potable duty adds NSF/ANSI 61 certification for contact surfaces.

How is coating quality verified?

Steel is blasted to Sa 2.5, the coating is applied to a verified DFT of 0.25-0.45 mm, and the finished surface is holiday-tested at 1500 V across every square meter before shipment.

Is a welded or bolted tank better quality?

Neither is better by default; bolted GFS wins on corrosion and speed, while welded wins on very large volumes to 150,000 m3. Quality is set by the coating-to-chemistry match and the inspection record.

What is a realistic design life?

Steel and enamel tanks deliver 30-50 years with inspection; concrete tanks reach 40-60 years. Life is shortened only when the lining is wrong for the product.

How do I avoid a low-quality supplier?

Require the calculation, the test report, the thickness log, and a reference from a comparable tank still in service. Decline any supplier offering only a low price and a brochure.

Can tanks be customized?

Yes. Capacity (20-60,000 m3), roof type, coating grade, and fittings are engineered per duty and site, certified and supplied with an inspection package.
