Industrial Liquid Tanks: Material and Coating Selection Guide

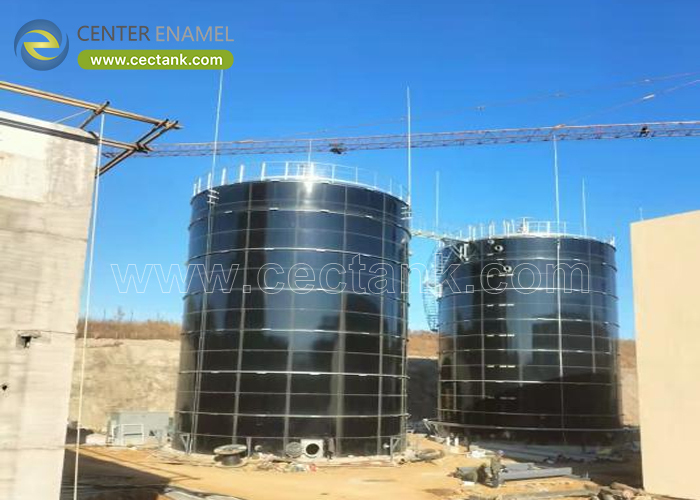

An industrial liquid tank stores process water, chemicals, and effluent where the product chemistry decides the material and coating. Capacities span 20 to 60,000 m3. Engineered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel), Glass-Fused-to-Steel (GFS) industrial tanks use a vitreous enamel surface fused at 820-930°C to resist aggressive liquids for 30-50 years without blistering.

What an Industrial Liquid Tank Is

An industrial liquid tank is a vessel built for non-potable process streams: cooling water, reagents, slurries, and effluent. Unlike a water tank, its design starts from the liquid's pH, abrasives, and temperature, because the coating - not the steel - faces the chemistry. Built from 20 to 60,000 m3, the tank's service life is set by how well the lining matches the duty.

• Streams: cooling, reagent, slurry.
• Start: pH, abrasives, temp.
• Life: set by lining match.
• Range: 20-60,000 m3.

Key Characteristics, Components, and Types

Industrial tanks use GFS bolted, welded coated steel, concrete, or FRP. GFS carries a 0.25-0.40 mm enamel fused at 820-930°C; welded tanks rely on field-applied coatings; concrete is cast; FRP is molded for small neat duties. Roofs and nozzles are specified for vapor, access, and instrumentation, and 8.8-grade bolts carry the GFS joints.

• Materials: GFS, welded, concrete, FRP.
• Enamel: 0.25-0.40 mm at 820-930°C.
• Roof: vapor and access spec.
• Joints: 8.8-grade bolts.

Applications and Operating Conditions

They serve chemical plants, mines, food processors, and utilities storing reagents, process water, and treated effluent. A GFS tank fits corrosive or abrasive streams (pH 3-11, 1-14 special) where painted steel fails; a concrete tank fits heavy civil duty; FRP fits small acidic baths. Matching lining to chemistry is what keeps the tank in service for 30-50 years.

• Chemical: reagents and process water.
• Mine: abrasive slurry.
• Food: hygienic duty.
• Match: lining to chemistry.

Technical Considerations

Specify the liquid's pH, temperature (4-60°C typical), and abrasives, then set coating DFT at 0.25-0.45 mm and shell plate at 6-40 mm. The shell is calculated to AWWA D103-09 and ISO 28765, plates blasted to Sa 2.5 and holiday-tested at 1500 V. Flow to 500 m3/h sets pipe and pump sizing, and seismic or wind loads are confirmed for the site.

• Coat: 0.25-0.45 mm DFT.
• Plate: 6-40 mm head.
• Test: 1500 V per m2.
• Code: AWWA D103-09, ISO 28765.

Advantages and Limitations

GFS gives an inert, near-impervious lining that beats field paint for 30-50 years and erects fast. The limitation is chemistry: GFS is not suitable for every solvent or extreme pH without a special grade, and buyers must confirm the lining grade against the actual stream. This boundary is confirmed in specification, not discovered during the first fill.

• Advantage: inert, fast, 30-50 years.
• Advantage: beats field paint.
• Limitation: not all solvents.
• Boundary: confirm grade in spec.

Design Parameters

The figures below are the load-bearing values a supplier should quote per industrial tank. They let an engineer confirm the shell, coating, and joint system before steel is ordered for a process-liquid duty.

Comparison and Selection Guide

Against welded steel, concrete, and fiberglass, a Glass-Fused-to-Steel (GFS) industrial tank wins on corrosion resistance and build speed for the 20-60,000 m3 range. Use the table to match the material to product corrosivity, site logistics, and required life.

Best Practices: How to Choose

Send the liquid datasheet (pH, temp, abrasives) to the supplier and require the ISO 28765 calculation, a 1500 V holiday test, and a coating log. Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) issues drawings, NDE records, and inspection packages so the industrial tank is auditable and warranty-backed.

• Send: liquid datasheet.
• Require: ISO 28765 and 1500 V.
• Log: coating thickness.
• Package: drawings plus NDE.

Industrial liquid tanks live or die by coating-to-chemistry matching. Specify the lining grade, the code math, and the test proof, and the tank serves 30-50 years instead of failing at year five.

Frequently Asked Questions (FAQ)

What is an industrial liquid tank?

A vessel from 20 to 60,000 m3 for process water, chemicals, and effluent, whose lining is matched to the liquid's pH, temperature, and abrasives for a 30-50 year life.

Which material for corrosive liquids?

GFS enamel resists pH 3-11 (1-14 special); FRP suits small acidic baths; concrete fits heavy civil duty. Welded steel needs field-applied coating.

What standards apply?

The bolted shell is designed to AWWA D103-09 and ISO 28765, with plant control under ISO 9001 and ISO 45001.

How is the lining verified?

Steel is blasted to Sa 2.5, the coating is applied to 0.25-0.45 mm DFT, and the surface is holiday-tested at 1500 V per square meter.

What is the design life?

Steel and enamel tanks deliver 30-50 years with inspection; concrete tanks reach 40-60 years.

Can it be customized?

Yes. Material, roof, coating grade, nozzles, and instrumentation are engineered per stream and site, with drawings issued per tank.
