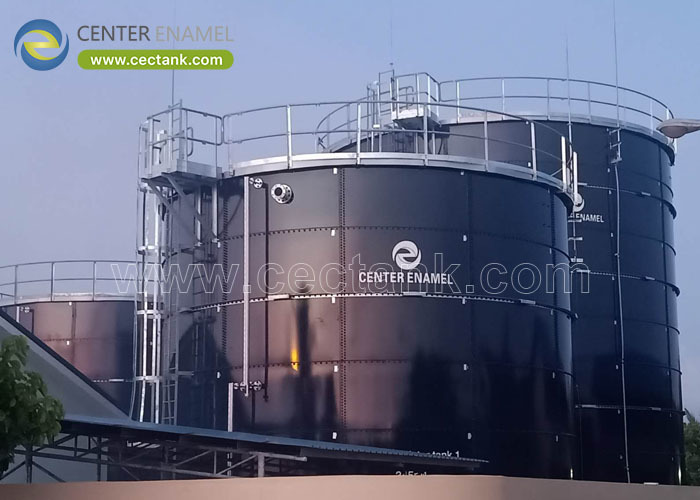

A bulk storage tank holds large volumes of liquid or dry product at a single site, typically 1,000 to 60,000 m3 for liquids and up to 20,000 m3 for dry bulk. Material choice decides corrosion resistance and build speed. Engineered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel), bolted Glass-Fused-to-Steel (GFS) tanks pair a 30-50 year inert shell with fast, weld-free erection for bulk duty.

What a Bulk Storage Tank Is

A bulk storage tank is a vessel built to hold a large, often continuous inventory of liquid or granular product at one location. Liquids use steel or concrete shells from 1,000 to 150,000 m3; dry bulk uses silos to 20,000 m3. The defining need is volume per dollar and per day of build, so the shell material, coating, and foundation are chosen around throughput rather than appearance.

• Liquid: 1,000-150,000 m3.
• Dry: silos to 20,000 m3.
• Driver: volume per dollar.
• Driver: build days, not looks.

Key Characteristics, Components, and Types

Four families dominate. Bolted GFS tanks fuse enamel at 820-930°C for an inert 30-50 year surface. Welded steel tanks reach 150,000 m3 but need longer site work. Concrete tanks are cast for permanent duty. FRP suits small neat chemical tanks below 5,000 m3. Bolted systems ship flat-packed and erect in weeks, which matters for bulk projects on a schedule.

• GFS: inert, bolted, fast.
• Welded: to 150,000 m3.
• Concrete: permanent civil.
• FRP: small chemical.

Applications and Operating Conditions

Bulk tanks serve water utilities, agriculture, mining, and industry storing water, slurry, grain, chemicals, and process liquids. A plant storing corrosive process water benefits from the GFS enamel; a terminal needing 150,000 m3 chooses welded; a farm stores grain in a sealed silo. The duty's chemistry and volume set the right family, not a generic big tank label.

• Utility: water and slurry.
• Mining: corrosive process water.
• Terminal: very large welded.
• Farm: sealed grain silo.

Technical Considerations

Sizing starts from daily throughput and turnaround, then sets shell plate at 6-40 mm for hydrostatic head and a coating DFT of 0.25-0.45 mm. Every square meter is holiday-tested at 1500 V, joints use 8.8-grade bolts, and the shell is calculated to AWWA D103-09 and ISO 28765. Foundation and seismic or wind loads are confirmed for the installed location before steel is ordered.

• Plate: 6-40 mm head.
• Coat: 0.25-0.45 mm DFT.
• Test: 1500 V per m2.
• Code: AWWA D103-09, ISO 28765.

Advantages and Limitations

Bulk GFS tanks give corrosion resistance and fast erection for 30-50 years at volumes to 60,000 m3. The limitation is that a single bolted shell is not the right choice above roughly 60,000 m3; very large duty splits into multiple tanks or moves to welded steel. Buyers should confirm the volume ceiling against their true peak inventory before specifying.

• Advantage: corrosion-proof, fast.
• Advantage: 30-50 year life.
• Limitation: ceiling ~60,000 m3.
• Boundary: confirm true peak.

Design Parameters

The figures below are the load-bearing values a supplier should quote per bulk tank. They let an engineer confirm the shell, coating, and joint system before steel is ordered for a high-volume storage duty.

Comparison and Selection Guide

Against welded steel, concrete, and fiberglass, a Glass-Fused-to-Steel (GFS) tank wins on corrosion resistance and build speed for the 20-60,000 m3 range. Use the table to match the material to product corrosivity, site logistics, and required life for bulk storage tanks.

Best Practices: How to Choose

Match the family to chemistry and volume, then require the ISO 28765 calculation, a 1500 V holiday-test report, and a coating log. Ask for references from comparable bulk duties. Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) issues drawings, NDE records, and inspection packages so the tank is bankable and permit-ready from day one.

• Match: chemistry and volume.
• Require: ISO 28765 and 1500 V test.
• Ask: comparable reference.
• Get: inspection package.

Bulk storage is a volume, chemistry, and schedule problem. Pick the material that fits all three, demand the coating and code proof, and the tank will deliver 30-50 years of uninterrupted service.

Frequently Asked Questions (FAQ)

What is a bulk storage tank?

A large vessel - 1,000 to 150,000 m3 for liquids and up to 20,000 m3 for dry bulk - built to hold a continuous inventory at one site for water, slurry, grain, or chemicals.

Which material is best for bulk?

GFS fits corrosive or modular duty, welded fits volumes above 60,000 m3, concrete fits permanent civil works, and FRP fits small neat chemical tanks below 5,000 m3.

How large can one tank be?

A single GFS tank reaches 60,000 m3; welded steel reaches 150,000 m3; larger duty splits into multiple tanks or moves to welded construction.

What standards apply?

The bolted shell is designed to AWWA D103-09 and ISO 28765, with plant control under ISO 9001 and ISO 45001; potable duty adds NSF/ANSI 61.

How is quality verified?

Steel is blasted to Sa 2.5, the coating is applied to 0.25-0.45 mm DFT, and the surface is holiday-tested at 1500 V per square meter.

Can bulk tanks be customized?

Yes. Capacity, roof, coating grade, fittings, and insulation are engineered per duty and site, certified with an inspection package.
