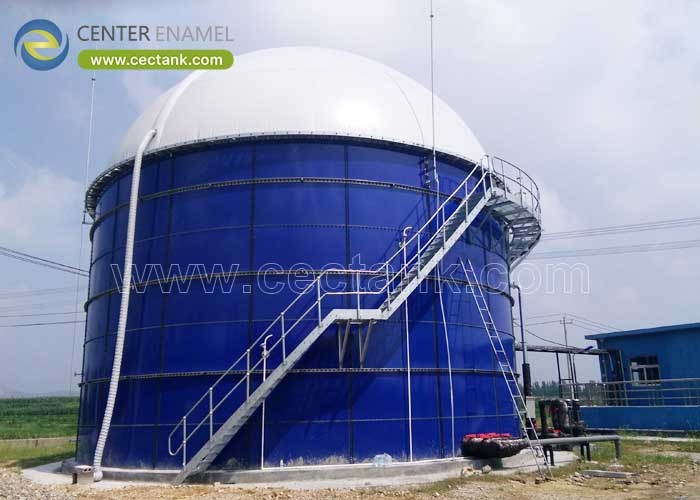

Glass-Fused-to-Steel Biomass Tanks for Bioenergy Storage

A glass fused to steel biomass tank stores organic feedstock and captured biogas in one inert, corrosion-resistant shell rated for 30-50 years. The vitreous enamel is fused at 820-930°C onto steel, resisting the acidic biomass environment better than painted metal. Engineered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel), these bolted tanks are designed to AWWA D103-09 and ISO 28765 for bioenergy, agriculture, and wastewater duties.

What a Glass-Fused-to-Steel Biomass Tank Is

A glass fused to steel biomass tank is a bolted steel vessel whose interior is protected by vitreous enamel fused at 820-930°C to 0.3 mm-plus plates. The result is a Glass-Fused-to-Steel (GFS) non-porous, inert surface that stores biomass, silage leachate, and biogas without blistering. Capacities run from 20 to 60,000 m3 in a single tank, and bolted build avoids on-site welding.

• Surface: enamel fused at 820-930°C.
• Inert: resists acidic biomass.
• Range: 20-60,000 m3 single.
• Build: bolted, no field weld.

Key Characteristics, Components, and Types

Biomass GFS tanks come as digesters with mixers, as gas-tight storage with a double-membrane holder, or as dry-feed silos. The shell carries a 0.25-0.40 mm enamel coat holiday-tested at 1500 V, while roofs range from fixed cones to aluminum geodesic domes. Common pairings are CSTR for slurry and UASB for high-strength wastewater, each engineered to the feed's pH and solids load.

• Digester: with mixers and holder.
• Silo: dry biomass storage.
• Coat: 0.25-0.40 mm, 1500 V test.
• Roof: cone or geodesic dome.

Applications and Operating Conditions

They serve biogas plants, farms, and food processors converting manure, crop residue, and organic waste into energy. Municipal sites use them for sludge and leachate; agro-industry uses them for grain and feed. Because the enamel resists pH 3-11 and 1-14 in special grades, the same tank family covers both wet digestion and dry bulk biomass on one site.

• Biogas: manure and residue.
• Municipal: sludge and leachate.
• Agro: grain and feed.
• pH: 3-11, 1-14 special.

Technical Considerations

Sizing sets hydraulic retention at 20-40 days and temperature at 35-38°C for mesophilic digestion, with biogas at 55-65% methane and 5-30 mbar. The shell is calculated to AWWA D103-09 and ISO 28765, plates blasted to Sa 2.5, and every panel holiday-tested at 1500 V. Mixing uses 5-15 W/m3 to keep solids in suspension and gas yield stable.

• Retention: 20-40 days HRT.
• Temperature: 35-38°C mesophilic.
• Gas: 55-65% methane, 5-30 mbar.
• Mix: 5-15 W/m3.

Advantages and Limitations

The enamel gives a near-inert interior that outlasts painted steel for 30-50 years and speeds erection through bolting. A genuine limitation is that GFS is not suitable for feedstock below pH 5.5 unless a correction step is added; this boundary must be confirmed during process design, not after the tank is in the ground, or the coating warranty is at risk.

• Advantage: inert, 30-50 years.
• Advantage: fast bolted build.
• Limitation: not for pH<5.5 as-is.
• Boundary: confirm pH in design.

Design Parameters

The figures below are the load-bearing values a provider should quote per Glass-Fused-to-Steel (GFS) biomass tank. They let an engineer confirm the shell, coating, and joint system before steel is ordered for a biomass or biogas duty.

Comparison and Selection Guide

Against welded steel, concrete, and fiberglass, a Glass-Fused-to-Steel (GFS) biomass tank wins on corrosion resistance and build speed for the 20-60,000 m3 range. Use the table to match the material to feed corrosivity, site logistics, and required life.

Best Practices: How to Choose a Provider

Specify the enamel DFT of 0.25-0.40 mm, the 1500 V holiday test, and the ISO 28765 calculation up front. Require references from biomass duties of similar volume and feedstock. Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) issues drawings, NDE records, and an inspection package per tank so the design survives audit and financing review.

• Ask for: ISO 28765 calculation.
• Verify: 1500 V test, 0.25-0.40 mm DFT.
• Confirm: biomass reference.
• Package: drawings plus NDE records.

A GFS biomass tank is a coating system, a code calculation, and an inspection record built to last 30-50 years. Choose a provider who shows the enamel proof and the ISO 28765 math rather than one who only promises the lowest price for a bare shell.

Frequently Asked Questions (FAQ)

What is a Glass-Fused-to-Steel biomass tank?

It is a bolted steel tank with a vitreous enamel interior fused at 820-930°C, giving an inert, corrosion-resistant surface in capacities from 20 to 60,000 m3 for biomass and biogas duty.

Which standard applies to a biomass tank?

The bolted shell is designed to AWWA D103-09 and ISO 28765, with materials and welding controlled under ISO 9001 and ISO 45001. Potable-adjacent duty adds NSF/ANSI 61.

How is the enamel coating verified?

Plates are blasted to Sa 2.5, the enamel is fused at 820-930°C, and the finished surface is holiday-tested at 1500 V across every square meter before shipment.

Can it store dry biomass too?

Yes, as a sealed silo for grain and feed with safe moisture of 13-15% and a bolted conical roof for weather sealing.

What capacity can one tank reach?

A single GFS tank spans 20-60,000 m3; larger biogas duty is met with multiple tanks rather than one oversized shell.

Can the tank be customized?

Yes. Roof type, mixers, gas holder, nozzles, and insulation are matched to throughput, climate, and code, with drawings issued per tank.
