Designing a 50,000 m3 Digester Tank for Large Biogas Plants

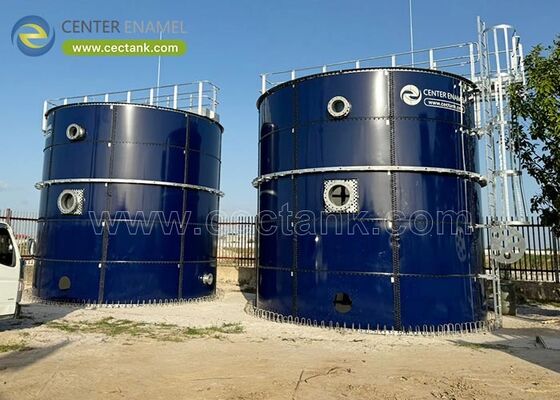

A 50,000 m3 digester tank is a utility-scale anaerobic reactor that treats organic waste and captures biogas of 55-65% methane for grid or process energy. At this size, structural and process margins decide reliability. Engineered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel), a Glass-Fused-to-Steel (GFS) digester of this scale is calculated to AWWA D103-09 and ISO 28765 with a holiday-tested enamel shell.

What a 50,000 m3 Digester Tank Is

A 50,000 m3 digester tank is a sealed anaerobic reactor holding roughly 50,000 cubic meters of feed at 35-38°C while microbes convert organics to biogas. In Glass-Fused-to-Steel (GFS) form, the shell is bolted enamel panels fused at 820-930°C, giving an inert interior that resists the acidic digestate across a 30-50 year life. The volume sets it firmly in utility-scale biogas duty.

• Volume: about 50,000 m3.
• Temp: 35-38°C mesophilic.
• Gas: 55-65% methane.
• Shell: bolted enamel GFS.

Key Characteristics, Components, and Types

At 50,000 m3 the tank is typically a CSTR with full-volume mixing, or a two-stage design separating acidification from methanogenesis. The shell uses a 0.25-0.40 mm enamel holiday-tested at 1500 V, 8.8-grade bolts, and a gas-tight roof with a double-membrane holder. Heaters, mixers, and desulfurization are integrated into the single engineered supply.

• CSTR: full-volume mix.
• Two-stage: acid plus methane.
• Shell: 0.25-0.40 mm, 1500 V.
• Supply: heater, mixer, desulf.

Applications and Operating Conditions

Utility-scale plants, large farms, and municipal waste facilities use 50,000 m3 digesters for sewage sludge, manure, and food waste. They convert continuous high-volume feed into heat, power, or injected biomethane. Because the GFS enamel resists pH 3-11, the same vessel handles aggressive digestate that would corrode painted steel within years.

• Users: utilities, farms, cities.
• Feed: sludge, manure, food.
• Output: heat, power, biomethane.
• pH: enamel resists 3-11.

Technical Considerations

Design fixes hydraulic retention at 20-40 days, temperature at 35-38°C, and biogas at 55-65% methane under 5-30 mbar. Mixing uses 5-15 W/m3 to keep 50,000 m3 of solids uniform. The shell is calculated to AWWA D103-09 and ISO 28765, plates blasted to Sa 2.5 and holiday-tested at 1500 V, with seismic and wind loads confirmed for the installed site.

• Retention: 20-40 days.
• Temp: 35-38°C.
• Mix: 5-15 W/m3.
• Shell: Sa 2.5, 1500 V.

Advantages and Limitations

A 50,000 m3 GFS digester delivers utility-scale biogas with a corrosion-proof shell and fast bolted build. The limitation is that single-tank volumes near 50,000 m3 are at the practical ceiling for bolted GFS; beyond this, multiple tanks or welded steel are used. This boundary is a planning decision, confirmed against true peak feed, not a failure of the material.

• Advantage: utility-scale, corrosion-proof.
• Advantage: fast bolted build.
• Limitation: near bolted GFS ceiling.
• Boundary: plan multiple or welded.

Design Parameters

The figures below are the load-bearing values a provider should quote per 50,000 m3 digester. They let an engineer confirm the shell, coating, mixing, and gas system before steel is ordered for a utility-scale biogas duty.

Comparison and Selection Guide

Against welded steel, concrete, and fiberglass, a Glass-Fused-to-Steel (GFS) digester wins on corrosion resistance and build speed for the 20-60,000 m3 range. Use the table to match the material to feed corrosivity, site logistics, and required life at utility scale.

Best Practices: How to Choose a Provider

Require the ISO 28765 calculation, the 1500 V holiday test, and a full inspection package for a tank this size. Demand references from digesters of comparable volume and feedstock. Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) issues drawings, NDE records, and an inspection package per tank so the asset clears audit and financing.

• Require: ISO 28765 and 1500 V.
• Package: full inspection.
• Reference: comparable volume.
• Audit: drawings plus NDE.

A 50,000 m3 digester is a structural and process commitment, not a bigger tank. Engineer the retention, the corrosion-proof GFS shell, and the inspection proof together, and it produces biogas reliably for 30-50 years.

Frequently Asked Questions (FAQ)

What is a 50,000 m3 digester tank?

A utility-scale anaerobic reactor of about 50,000 m3 that captures biogas of 55-65% methane from sludge, manure, or food waste for energy recovery.

What can one tank reach?

GFS bolted tanks reach about 50,000-60,000 m3; beyond that, plants use multiple tanks or welded steel construction.

Which standard applies?

The shell is designed to AWWA D103-09 and ISO 28765, with plant control under ISO 9001 and ISO 45001.

How is the shell verified?

Plates are blasted to Sa 2.5, the enamel is fused at 820-930°C to 0.25-0.40 mm, and holiday-tested at 1500 V per square meter.

What retention and temperature?

Hydraulic retention of 20-40 days at a mesophilic temperature of 35-38°C gives stable digestion and predictable gas yield.

Can it be customized?

Yes. Mixer, heater, gas holder, insulation, and instrumentation are engineered per feed and climate, with drawings issued per tank.
