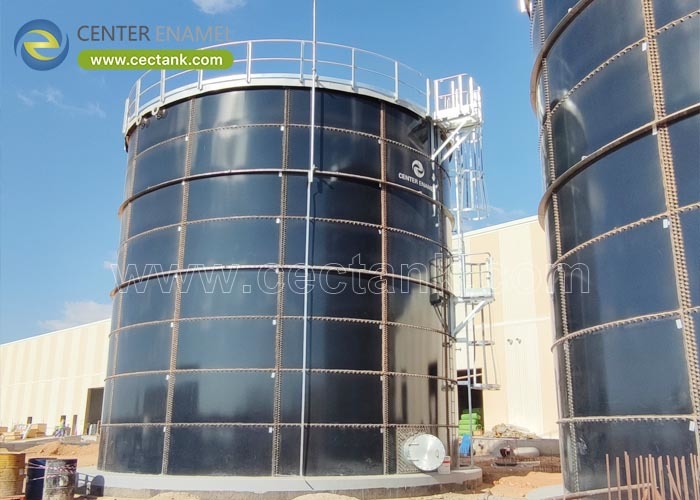

A glass lined steel tank is a bolted steel vessel whose interior is protected by vitreous enamel fused at 820-930°C, giving an inert, non-porous surface that resists corrosion for 30-50 years. The coating is verified at 0.25-0.45 mm and holiday-tested at 1500 V under AWWA D103-09 and ISO 28765. Engineered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel), these tanks serve water, wastewater, and biogas duties worldwide.

What a Glass-Lined Steel Tank Is

A glass lined steel tank is a Glass-Fused-to-Steel (GFS) vessel whose interior is protected by vitreous enamel fused at 820-930°C onto steel to 0.25-0.40 mm. The result is an inert, non-porous surface that stores water, wastewater, and biogas without blistering for 30-50 years. Capacities run from 20 to 60,000 m3 in a single tank, and bolted construction avoids on-site welding.

• Surface: enamel fused at 820-930°C.
• Inert: resists acids and salts.
• Range: 20-60,000 m3 single.
• Build: bolted, no field weld.

Key Characteristics, Components, and Types

Glass-lined tanks come as water tanks, wastewater tanks, and biogas digesters, each with 8.8-grade bolting and a sealed or vented roof. The shell carries a 0.25-0.40 mm enamel coat holiday-tested at 1500 V, while roofs range from fixed cones to aluminum geodesic domes. Because the lining is factory-fused, quality is uniform and the tank ships flat-packed for fast local assembly.

• Types: water, wastewater, biogas.
• Bolts: 8.8-grade joints.
• Coat: 0.25-0.40 mm, 1500 V test.
• Roof: cone or geodesic dome.

Applications and Operating Conditions

They serve potable water, municipal wastewater, fire protection, and agricultural biogas where the chemistry attacks painted steel. Municipal duties need NSF/ANSI 61 certified contact surfaces; industrial streams need pH 3-11 tolerance, with a 1-14 special grade for harsher duty. The inert enamel is the reason the same tank family covers both clean water and corrosive effluent on one site.

• Municipal: NSF/ANSI 61 contact.
• Industrial: pH 3-11, 1-14 special.
• Biogas: acid-resistant interior.
• Fire: reliable reserve.

Technical Considerations

Technically, the steel is blasted to Sa 2.5, the enamel is fused at 820-930°C to 0.25-0.45 mm DFT, and every square meter is holiday-tested at 1500 V. The shell is calculated to AWWA D103-09 and ISO 28765, and an inspection package records each step. Bolts are 8.8-grade, and the design covers 30-50 years with a documented inspection plan.

• Blast: Sa 2.5 for adhesion.
• Fuse: 820-930°C, 0.25-0.45 mm.
• Test: 1500 V holiday check.
• Bolts: 8.8-grade joints.

Advantages and Limitations

The enamel gives a near-inert interior that outlasts painted steel for 30-50 years and speeds erection through bolting. A genuine limitation is that glass-lined steel is not suited to feedstock below pH 5.5 unless a correction step is added; this boundary must be confirmed during process design, not after the tank is in the ground, or the coating warranty is at risk.

• Advantage: inert, 30-50 years.
• Advantage: fast bolted build.
• Limitation: not for pH<5.5 as-is.
• Boundary: confirm pH in design.

Design Parameters

The figures below are the load-bearing values a supplier should quote per glass lined steel tank; capacities reach 60,000 m3 and design life runs 30-50 years. They let an engineer confirm the shell, coating, and joint system before steel is ordered for a corrosive or potable duty.

Comparison and Selection Guide

Against welded steel, concrete, and fiberglass, a Glass-Fused-to-Steel (GFS) tank wins on corrosion resistance and build speed for the 20-60,000 m3 range. Use the table to match the material to product corrosivity, site logistics, and required life when selecting glass lined steel tanks.

Best Practices: How to Specify

Specify the enamel DFT of 0.25-0.40 mm, the 1500 V holiday test, and the ISO 28765 calculation up front. Require references from comparable duties. Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) issues drawings, NDE records, and an inspection package per tank so the design survives audit and financing review.

• Ask for: ISO 28765 calculation.
• Verify: 1500 V test, 0.25-0.40 mm DFT.
• Confirm: comparable reference.
• Package: drawings plus NDE records.

Conclusion

A glass lined steel tank is a coating system, a code calculation, and an inspection record built to last 30-50 years. Choose a provider who shows the enamel proof and the ISO 28765 math rather than one who only promises the lowest price for a bare shell.

Frequently Asked Questions (FAQ)

What is a glass lined steel tank?

It is a bolted steel tank with a vitreous enamel interior fused at 820-930°C, giving an inert, corrosion-resistant surface in capacities from 20 to 60,000 m3.

Which standard applies?

The bolted shell is designed to AWWA D103-09 and ISO 28765, with materials and welding controlled under ISO 9001 and ISO 45001. Potable duty adds NSF/ANSI 61.

How is the enamel verified?

Steel is blasted to Sa 2.5, the enamel is fused at 820-930°C, and the surface is holiday-tested at 1500 V across every square meter before shipment.

What is the design life?

Glass lined steel tanks deliver 30-50 years with inspection; life is shortened only when the lining is wrong for the product chemistry.

Is it good for wastewater?

Yes. The inert enamel resists pH 3-11 and 1-14 in special grades, so it handles the fluctuating chemistry that quickly attacks painted steel.

Can it be customized?

Yes. Capacity (20-60,000 m3), roof type, coating grade, and fittings are engineered per duty and supplied with an inspection package.

Key Takeaways

• Glass lining = enamel fused at 820-930°C for an inert shell.
• Require ISO 28765 plus a 1500 V holiday-test report.
• Coating and code matter more than price for 30-50 year life.
• Confirm product pH during design, not after erection.
