Glass-Fused-to-Steel Biogas Tank: Inert Storage for Anaerobic Duty

A Glass-Fused-to-Steel (GFS) biogas tank stores anaerobic digestion feedstock and biogas in one inert, enamel-lined shell rated for 30-50 years under acidic, methane-rich conditions. The enamel is fused at 820-930°C onto steel to 0.25-0.40 mm and holiday-tested at 1500 V under AWWA D103-09 and ISO 28765. Engineered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel).

What a Glass-Fused-to-Steel Biogas Tank Is

A Glass-Fused-to-Steel (GFS) biogas tank is a bolted steel digester whose interior is protected by vitreous enamel fused at 820-930°C to 0.25-0.40 mm. The inert, non-porous surface stores acidic slurry and biogas without blistering for 30-50 years. Capacities run 500-50,000 m3, and bolted build avoids on-site welding in remote AD plants.

• Surface: enamel fused 820-930°C.
• Inert: resists acidic slurry.
• Range: 500-50,000 m3.
• Build: bolted, no field weld.

Key Characteristics, Components, and Types

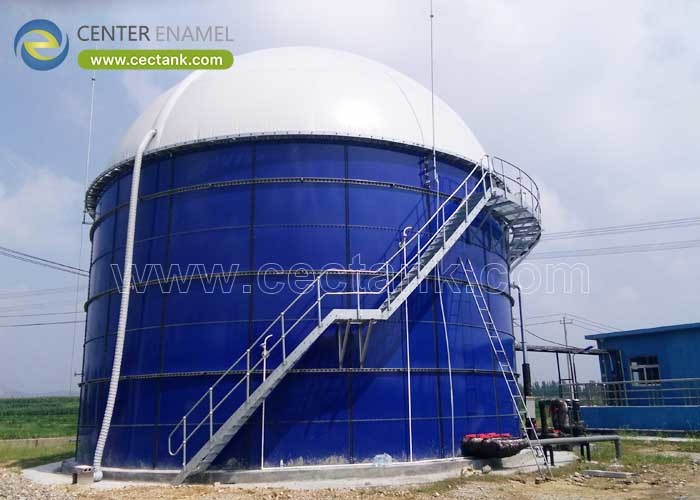

GFS biogas tanks are built as CSTR digesters with mixers or as gas-tight storage with a double-membrane holder. The shell carries a holiday-tested enamel coat, and roofs range from fixed cones to aluminum geodesic domes. The same bolted principle scales from a 500 m3 farm digester to a 50,000 m3 municipal plant.

• CSTR: mixed digester.
• Holder: double membrane.
• Coat: 0.25-0.40 mm, tested.
• Roof: cone or dome.

Applications and Operating Conditions

They serve farms, food processors, and municipalities converting manure, residues, and sludge into energy. Operating at 35-38°C mesophilic temperature with 55-65% methane at 5-30 mbar, the enamel resists pH 3-11 and 1-14 in special grades. Mixing uses 5-15 W/m3 to keep solids suspended and gas yield stable.

• Farms: manure and residue.
• Municipal: sludge digestion.
• Gas: 55-65% methane.
• Mix: 5-15 W/m3.

Technical Considerations

Sizing sets hydraulic retention at 20-40 days and temperature at 35-38°C, with biogas at 55-65% methane and 5-30 mbar. The shell is calculated to AWWA D103-09 and ISO 28765, plates blasted to Sa 2.5 and holiday-tested at 1500 V. The double-membrane holder is designed for the 5-30 mbar gas pressure without leakage.

• Retention: 20-40 days HRT.
• Temperature: 35-38°C.
• Pressure: 5-30 mbar.
• Test: 1500 V per m2.

Advantages and Limitations

The enamel gives a near-inert interior that outlasts painted steel for 30-50 years and speeds erection through bolting. A genuine limitation is that GFS is not suited to feedstock below pH 5.5 unless a correction step is added; this boundary must be confirmed during process design, not after the tank is in the ground, or the coating warranty is at risk.

• Advantage: inert, 30-50 years.
• Advantage: fast bolted build.
• Limitation: not for pH<5.5 as-is.
• Boundary: confirm pH in design.

Design Parameters

The figures below are the load-bearing values a provider should quote per GFS biogas tank; capacities reach 50,000 m3 and design life runs 30-50 years. They let an engineer confirm the shell, coating, and gas system before steel is ordered for an anaerobic duty.

Comparison and Selection Guide

Against welded steel and concrete, a Glass-Fused-to-Steel (GFS) biogas tank wins on corrosion resistance and build speed for the 500-50,000 m3 range. Use the table to match the material to feed corrosivity, site logistics, and required life.

Best Practices: How to Choose

Specify the enamel DFT of 0.25-0.40 mm, the 1500 V holiday test, and the ISO 28765 calculation; require references from biogas duties of similar volume and feedstock. Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) issues drawings, NDE records, and inspection packages per tank.

• Ask for: ISO 28765 calculation.
• Verify: 1500 V test, 0.25-0.40 mm.
• Confirm: biogas reference.
• Package: drawings plus NDE.

Conclusion

A GFS biogas tank is a coating system, a code calculation, and an inspection record built to last 30-50 years under acidic, gas-rich duty. Choose a provider who shows the enamel proof and the ISO 28765 math rather than one who only promises a low price.

Frequently Asked Questions (FAQ)

What is a Glass-Fused-to-Steel biogas tank?

A bolted digester with a vitreous enamel interior fused at 820-930°C, giving an inert surface in capacities from 500 to 50,000 m3.

Which standard applies?

The shell is designed to AWWA D103-09 and ISO 28765, with plant control under ISO 9001 and ISO 45001.

How is the enamel verified?

Plates are blasted to Sa 2.5, fused at 820-930°C, and holiday-tested at 1500 V per square meter.

What gas pressure does it hold?

Biogas is stored at 5-30 mbar, usually in a double-membrane holder on the tank.

What feed pH can it handle?

pH 3-11 typical, with a 1-14 special grade for harsher streams; below pH 5.5 needs a correction step.

Can it be customized?

Yes. Capacity, mixer, roof, holder, and coating grade are engineered per feedstock, with drawings issued per tank.

Key Takeaways

• GFS enamel resists acidic biogas slurry for 30-50 years.
• Run at 35-38°C, 55-65% methane, 5-30 mbar.
• Require ISO 28765 plus a 1500 V holiday test.
• Confirm feed pH during design, not after build.
