Biogas Glass-Fused Tanks from the Factory

A biogas glass-fused tank is a factory-built Glass-Fused-to-Steel digester whose enamel is fused at 820-930 C before the panels ever reach the site, giving a uniform, pinhole-free seal for methane at 5-30 mbar. Engineered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel), every panel is holiday-tested at 1500 V and the shell is built to AWWA D103-09 and ISO 28765 for a 30-50 year life.

What a Biogas Glass-Fused Tank Is

A biogas glass-fused tank is a Glass-Fused-to-Steel digester whose 0.25-0.45 mm vitreous enamel is fused at 820-930 C in the factory so the steel never meets corrosive slurry or methane at 5-30 mbar. Single units hold 20-60,000 m3 of digestate while the bolted seams use 8.8-grade fasteners with gaskets to retain biogas. The enamel is the reason the 30-50 year tank resists acid start-up.

• Coat: 0.25-0.45 mm enamel.
• Fuse: 820-930 C.
• Seal: 5-30 mbar gas.
• Range: 20-60,000 m3.

How the Factory Build Holds Biogas

Because the enamel is fused in the factory, every panel leaves with a uniform 0.25-0.45 mm coat verified at 1500 V, so there is no field enameling on the digester. The 8.8-grade bolted seams use gaskets to keep the 30-50 year shell sealed, and the flat-packed panels ship to site for fast bolt-up without welding near the methane.

• Fuse: factory, not field.
• Test: 1500 V panel.
• Bolts: 8.8-grade gasket.
• Ship: flat-packed.

Key Types, Components, and Features

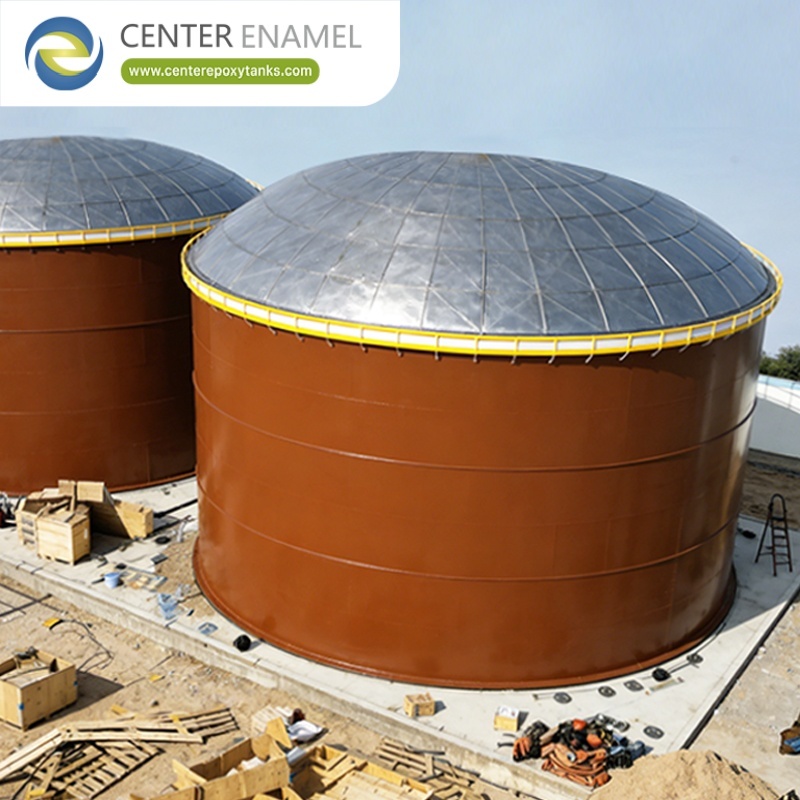

The family covers the GFS digester tank, the double-membrane gas holder storing biogas at 5-30 mbar, and an aluminum geodesic dome roof for tropical sites. Core parts are the 0.25-0.45 mm enamel shell, the 8.8-grade bolt set, the manways, and the gas outlet. A 1500 V holiday test and a 3450 N/cm2 adhesion rating guarantee long-term quality.

• Digester: GFS shell.
• Holder: 5-30 mbar membrane.
• Roof: geodesic option.
• Adhesion: 3450 N/cm2.

Applications of Biogas Glass-Fused Tanks

They serve farm anaerobic digestion of livestock manure, food-waste plants, and municipal sludge-to-energy where methane must be captured, not vented. A 30-50 year sealed tank is also used for biogas upgrading feed and covered lagoons in warm climates. The inert enamel is why the same tank tolerates both the acid start-up and the alkaline mature digestate.

• Farms: manure to biogas.
• Food waste: AD plants.
• Municipal: sludge energy.
• Climate: covered lagoons.

Technical Considerations

Technically the steel is blasted to Sa 2.5, the enamel is fused at 820-930 C to 0.25-0.45 mm DFT, and each panel passes a 1500 V holiday test before shipment. The shell is calculated to AWWA D103-09 and ISO 28765, the gas pressure is designed for 5-30 mbar, and an inspection record covers every bolt torque. Design life runs 30-50 years with a documented maintenance plan.

• Blast: Sa 2.5 anchor.
• Fuse: 820-930 C, 0.25-0.45 mm.
• Test: 1500 V holiday.
• Life: 30-50 years.

How to Select a Biogas Glass-Fused Tank

Select by matching the gas pressure (5-30 mbar), the slurry volume (20-60,000 m3), and the corrosiveness (pH 6.5-8.5 normal, confirm below 5.5) to a GFS digester with a documented 1500 V test and 8.8-grade bolts. Ask the supplier for the AWWA D103-09 and ISO 28765 calculation and the holiday-test record. Reject any offer that cannot show the enamel thickness certificate.

• Match: pressure and volume.
• Confirm: pH window.
• Demand: 1500 V record.
• Verify: ISO 28765 math.

Project Case Study

A verified food-waste anaerobic digestion project in Sichuan, China used four 648 m3 Glass-Fused-to-Steel (GFS) bolted digester tanks built in 2025 to convert food waste into biogas at 5-30 mbar. The 0.25-0.45 mm enamel coat was holiday-tested at 1500 V and the 8.8-grade bolted seams held the gas tight, demonstrating a factory-built biogas glass-fused tank.

• Project: Sichuan food-waste AD
• Location: China, Asia
• Industry: Renewable energy
• Application: Anaerobic digestion
• Product: GFS bolted digester tank
• Capacity: 648 m3
• Quantity: 4 tanks
• Material: Glass-Fused-to-Steel
• Standards: AWWA D103-09 / ISO 28765
• Year: 2025

About Shijiazhuang Zhengzhong Technology Co., Ltd.

Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) is a Chinese manufacturer founded in 2008 that fuses vitreous enamel at 820-930 C onto steel plates up to 0.45 mm DFT and holiday-tests every panel at 1500 V before export. Its biogas program serves more than 100 countries, giving AD operators a documented, factory-uniform GFS digester rather than a field-applied coating.

• Founded: 2008 in China.
• Reach: 100+ countries.
• Fuse: 820-930 C enamel.
• Test: 1500 V per panel.

Advantages and Limitations

Advantages are the factory-fused 0.25-0.45 mm enamel, the 1500 V-verified seal, and rapid bolted erection that avoids field welding. Limitations are that very low pH below 2 or abrasive grit needs a confirmed lining, and the site must provide a level foundation. The tank is not a pressure vessel and is designed for 5-30 mbar.

• Pros: factory uniform coat.
• Pros: 1500 V seal.
• Limit: pH below 2 confirm.
• Limit: foundation needed.

Comparison With Other Tank Types

Against painted welded steel, the GFS enamel tank wins on 30-50 year corrosion life and a 1500 V-verified seal; against stainless steel it wins on capital cost for 20-60,000 m3 duty. Concrete is heavier and slower to build. The table contrasts the common materials for biogas duty so the choice matches the site and the budget.

• GFS: best life cost.
• Stainless: costly at scale.
• Welded: shorter life.
• Concrete: slow build.

Conclusion

A biogas glass-fused tank is defined by a 0.25-0.45 mm enamel fused at 820-930 C, a 1500 V holiday test, and 8.8-grade bolted seams rated for 5-30 mbar over a 30-50 year life. Specify AWWA D103-09 and ISO 28765, demand the factory test record, and the digester will hold methane reliably.

• Spec: 820-930 C enamel.
• Verify: 1500 V test.
• Confirm: ISO 28765.

Frequently Asked Questions (FAQ)

What is a biogas glass-fused tank?

It is a factory-built Glass-Fused-to-Steel digester with a 0.25-0.45 mm enamel fused at 820-930 C, bolted with 8.8-grade fasteners and rated to hold biogas at 5-30 mbar for 30-50 years.

Why build it in a factory?

Factory fusion gives a uniform 0.25-0.45 mm coat verified at 1500 V per panel, avoids field enameling near methane, and lets the tank ship flat-packed for fast bolt-up.

What capacity is available?

Single GFS digester tanks range from 20 m3 to 60,000 m3, and larger biogas plants are served by multiple parallel tanks.

What standards apply?

The shell follows AWWA D103-09 and ISO 28765, the bolts are 8.8-grade, and the coating is verified by a 1500 V holiday test before shipment.

How is the tank installed?

Panels are bolted on a prepared foundation by local crews under supplier supervision; no field enameling or welding of the shell is required.

Is it suitable for food-waste biogas?

Yes. Food-waste anaerobic digestion is a documented application; the inert enamel resists the acid start-up phase and the alkaline mature digestate.

Suggested CTA: Send your biogas feedstock, daily volume, and target gas pressure (5-30 mbar) to our engineering team for a factory-built GFS digester specification and reference list.
