Robust Epoxy Containment Tanks for Industry

A robust epoxy containment tank is a bolted steel vessel whose Fusion Bonded Epoxy lining resists aggressive chemicals, and it is the workhorse for petroleum and industrial effluent. Engineered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel), the 250-450 um FBE coat is cured at 180-220 C, verified at 1500 V per panel, and built to AWWA D103-09 and ISO 28765 for a 30-50 year life.

What a Robust Epoxy Containment Tank Is

A robust epoxy containment tank is a bolted steel vessel with a 250-450 um Fusion Bonded Epoxy lining cured at 180-220 C so the chemical never contacts bare metal. Capacities reach 20-60,000 m3, the lining tolerates pH 1-14, and 8.8-grade bolts carry the hydrostatic head for a 30-50 year containment life under AWWA D103-09.

• Coat: 250-450 um epoxy.
• Cure: 180-220 C.
• pH: 1-14 range.
• Range: 20-60,000 m3.

How the Epoxy Lining Contains Chemicals

The FBE layer is a continuous barrier fused to the steel at the panel stage, so there are no field welds inside the tank and no bare-metal paths for corrosion. Because the lining is inert across pH 1-14 and verified at 1500 V per panel, the 30-50 year shell keeps its tightness while the aggressive stream attacks painted steel. The gasketed 8.8-grade bolts seal the structure.

• Barrier: seamless FBE.
• No weld: inside the shell.
• Test: 1500 V panel.
• pH: 1-14 tolerant.

Key Types, Components, and Features

The family covers the FBE containment tank, the FBE process tank, and the FBE equalization tank, each with 8.8-grade bolting and a fixed or membrane roof. Core parts are the 250-450 um epoxy panels, the manways, the chemical nozzles, and the level instruments. An ASTM D4541 adhesion pull-off and a 1500 V holiday test are the features that qualify the tank for containment.

• Tank: FBE lined.
• Roof: fixed or membrane.
• Bolts: 8.8-grade.
• Adhesion: ASTM D4541.

Applications of Epoxy Containment Tanks

They serve petroleum wastewater, chemical plants, and industrial effluent where the stream attacks painted steel and concrete. A 30-50 year FBE tank is also used for leachate and for aggressive process buffers on the same site. The pH 1-14 lining is why the same tank family covers both acidic and alkaline chemicals.

• Petroleum: oil wastewater.
• Chemical: process effluent.
• Leachate: aggressive too.
• pH: 1-14 tolerant.

Technical Considerations

Technically the steel is blasted and the 250-450 um FBE is applied and cured at 180-220 C, then each panel is inspected at 1500 V before bolting. The shell is calculated to AWWA D103-09, the adhesion is verified by ASTM D4541, and the bolt torque is recorded. Design life runs 30-50 years with routine gasket checks and a documented repair plan.

• Coat: 250-450 um cured.
• Cure: 180-220 C.
• Test: 1500 V + ASTM D4541.
• Life: 30-50 years.

How to Select a Robust Epoxy Tank

Select by matching the chemical pH (confirm below 2), the storage volume (20-60,000 m3), and the lining to an FBE tank with a documented 1500 V test and ASTM D4541 adhesion. Ask the supplier for the AWWA D103-09 and ISO 28765 calculation, the lining thickness record, and the reference plants. Reject any offer that cannot show the epoxy cure and holiday-test record.

• Confirm: pH below 2.
• Match: volume and lining.
• Demand: 1500 V + ASTM D4541.
• Verify: ISO 28765 math.

Project Case Study

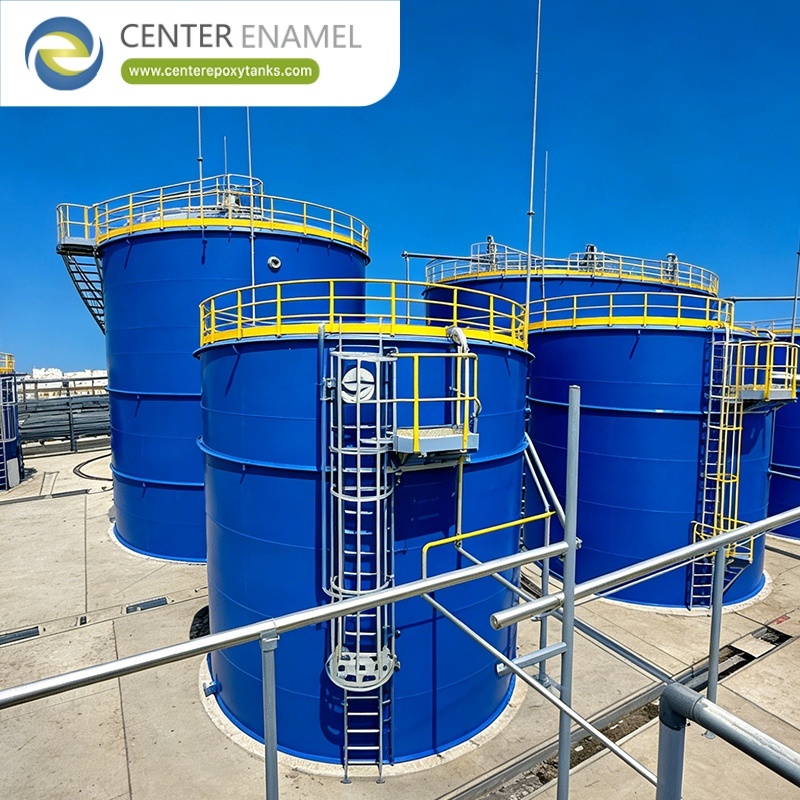

A verified petroleum wastewater project in Liaoning, China used three 2,752 m3 Fusion Bonded Epoxy (FBE) bolted tanks built in 2024 to contain oily and chemical effluent. The 250-450 um epoxy lining was cured at 180-220 C and inspected at 1500 V, demonstrating a robust epoxy containment tank on a real industrial site.

• Project: Liaoning petroleum wastewater
• Location: China, Asia
• Industry: Petroleum / chemical
• Application: Wastewater containment
• Product: FBE / epoxy-coated bolted tank
• Capacity: 2,752 m3
• Quantity: 3 tanks
• Material: Fusion Bonded Epoxy steel
• Standards: AWWA D103-09 / ISO 28765
• Year: 2024

About Shijiazhuang Zhengzhong Technology Co., Ltd.

Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) operates Fusion Bonded Epoxy coating lines alongside its Glass-Fused-to-Steel program, founded in 2008 and exporting to more than 100 countries. Its FBE tanks are cured at 180-220 C, verified at 1500 V per panel, and documented under ISO 9001, giving chemical operators a traceable pH 1-14 lining certificate.

• Founded: 2008 in China.
• Coatings: FBE and GFS.
• Cure: 180-220 C.
• Test: 1500 V per panel.

Advantages and Limitations

Advantages are the seamless pH 1-14 lining, the absence of interior field welds, and a 30-50 year corrosion-free life at lower cost than stainless. Limitations are that the epoxy must be confirmed for the exact chemistry and temperature, and the site must provide a level foundation and secondary containment. The tank is not for bulk fuel.

• Pros: pH 1-14 lining.
• Pros: no weld inside.
• Limit: confirm chemistry.
• Limit: secondary bund.

Comparison With Other Tank Types

Against GFS, FBE is the choice when a specific epoxy approval or pH window is mandated; against welded painted steel it wins on a 30-50 year lining life; against stainless it wins on capital cost for 20-60,000 m3. The table contrasts the common materials for containment duty so the choice matches the chemical and the budget.

• FBE: pH 1-14.
• GFS: glass enamel.
• Welded: shorter life.
• Stainless: higher cost.

Conclusion

A robust epoxy containment tank is defined by a 250-450 um FBE lining cured at 180-220 C, verified at 1500 V and ASTM D4541, and bolted with 8.8-grade fasteners for a 30-50 year AWWA D103-09 life. Specify the lining, demand the holiday-test record, and the tank will contain aggressive chemicals reliably.

• Spec: 180-220 C FBE.
• Verify: 1500 V + ASTM D4541.
• Confirm: AWWA D103-09.

Frequently Asked Questions (FAQ)

What is a robust epoxy containment tank?

It is a bolted steel tank whose interior carries a 250-450 um Fusion Bonded Epoxy lining cured at 180-220 C, verified at 1500 V and ASTM D4541 for pH 1-14 containment over a 30-50 year life.

What pH can the FBE lining handle?

The Fusion Bonded Epoxy lining tolerates pH 1-14; always confirm the exact chemical and temperature, especially when the pH falls below 2.

What capacity is available?

Single FBE bolted tanks range from 20 m3 to 60,000 m3, and larger containment systems use multiple parallel tanks.

What standards apply?

The shell follows AWWA D103-09 and ISO 28765, the lining is verified at 1500 V and ASTM D4541, and the program is documented under ISO 9001.

How is it installed?

Panels are bolted on a prepared foundation by local crews under supplier supervision; no interior field welding protects the epoxy lining.

Is it suitable for petroleum wastewater?

Yes. Petroleum and chemical wastewater is a documented application; the pH 1-14 FBE lining resists the oily, aggressive stream.
