Coated Steel Wastewater Tanks

A coated steel wastewater tank is a bolted vessel whose interior lining resists the corrosive, sulfide-rich effluent that destroys painted steel, and the proven coatings are Glass-Fused-to-Steel and Fusion Bonded Epoxy. Engineered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel), each panel is holiday-tested at 1500 V and the shell is built to AWWA D103-09 and ISO 28765 for a 30-50 year life.

What a Coated Steel Wastewater Tank Is

A coated steel wastewater tank is a bolted vessel built to AWWA D103-09 whose interior carries a Glass-Fused-to-Steel enamel (0.25-0.45 mm) or a Fusion Bonded Epoxy coat (250-450 um) that resists pH 1-14 wastewater. Capacities reach 20-60,000 m3, the inert lining stops the sulfide cycle, and 8.8-grade bolts carry the head for a 30-50 year duty.

• Code: AWWA D103-09.
• pH: 1-14 range.
• Coat: enamel or FBE.
• Range: 20-60,000 m3.

How the Coating Protects Wastewater

The seal relies on a pinhole-free lining verified at 1500 V per panel and 8.8-grade bolts with gaskets that keep the corrosive wastewater away from bare steel. Because the enamel is inert at 6.0 Mohs and the FBE resists pH 1-14, the 30-50 year shell keeps its tightness while the sulfide and chloride attack painted steel. The factory test record is the proof.

• Test: 1500 V panel.
• Bolts: 8.8-grade gasket.
• pH: 1-14 tolerant.
• Hardness: 6.0 Mohs.

Key Types, Components, and Features

The family covers the GFS wastewater tank and the FBE wastewater tank, each with 8.8-grade bolting and a fixed or membrane roof. Core parts are the coated panels, the manways, the wastewater nozzles, and the mixer supports. A documented AWWA D103-09 and ISO 28765 calculation and a 1500 V holiday test are the features that qualify the tank for wastewater duty.

• GFS: enamel lining.
• FBE: epoxy lining.
• Bolts: 8.8-grade.
• Test: 1500 V holiday.

Applications of Coated Wastewater Tanks

They serve municipal sewage, industrial effluent, and chemical wastewater where the stream attacks painted steel and concrete. A 30-50 year GFS or FBE tank is also used for equalization and treatment buffer on the same site. The inert lining is why the same tank family covers both municipal and industrial waste.

• Municipal: sewage duty.
• Industrial: process waste.
• Chemical: effluent.
• Buffer: treatment feed.

Technical Considerations

Technically the steel is blasted to Sa 2.5, the lining is fused or cured to 0.25-0.45 mm enamel or 250-450 um epoxy, and each panel passes a 1500 V holiday test before shipment. The shell is calculated to AWWA D103-09 and ISO 28765, the bolt torque is recorded, and an inspection package covers every step. Design life runs 30-50 years with routine gasket checks.

• Blast: Sa 2.5 anchor.
• Coat: 0.25-0.45 mm / 250-450 um.
• Test: 1500 V holiday.
• Life: 30-50 years.

How to Select a Coated Wastewater Tank

Select by matching the waste pH (confirm below 2), the storage volume (20-60,000 m3), and the lining to a GFS or FBE tank with a documented 1500 V test and 8.8-grade bolts. Ask the supplier for the AWWA D103-09 and ISO 28765 calculation, the holiday-test record, and the reference plants. Reject any offer that cannot show the lining thickness certificate.

• Confirm: pH below 2.
• Match: volume and lining.
• Demand: 1500 V record.
• Verify: ISO 28765 math.

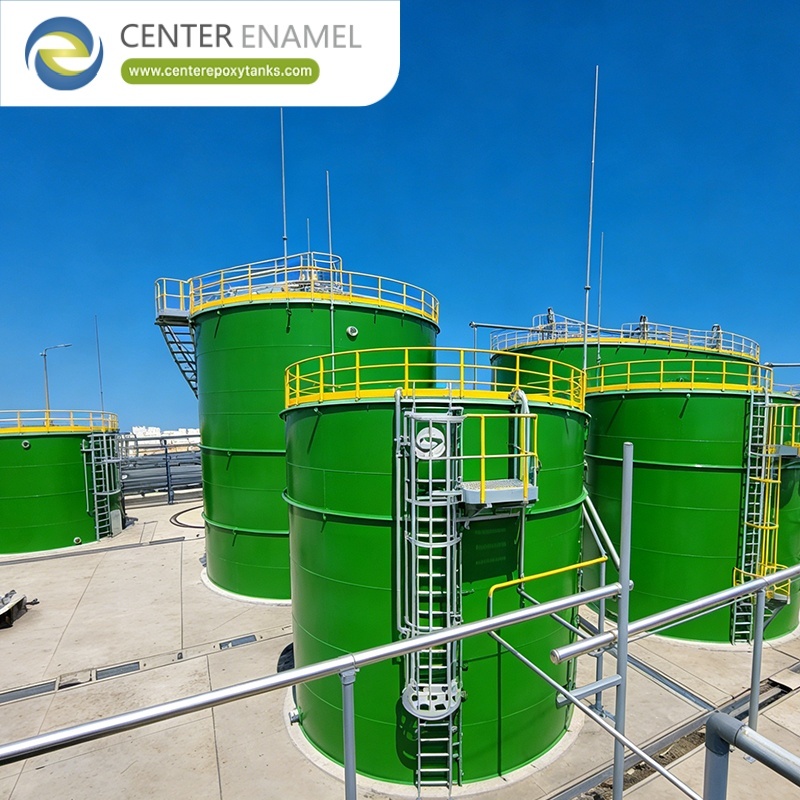

Project Case Study

A verified chemical wastewater project in Guangxi, China used eleven 4,771 m3 Fusion Bonded Epoxy (FBE) bolted tanks built in 2025 to contain and treat aggressive industrial effluent. The 250-450 um epoxy lining was cured at 180-220 C and inspected at 1500 V, demonstrating a coated steel wastewater tank on a real chemical site.

• Project: Guangxi chemical wastewater
• Location: China, Asia
• Industry: Chemical / industrial
• Application: Wastewater containment
• Product: FBE / epoxy-coated bolted tank
• Capacity: 4,771 m3
• Quantity: 11 tanks
• Material: Fusion Bonded Epoxy steel
• Standards: AWWA D103-09 / ISO 28765
• Year: 2025

About Shijiazhuang Zhengzhong Technology Co., Ltd.

Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) operates coating lines for both Glass-Fused-to-Steel and Fusion Bonded Epoxy panels, founded in 2008 and exporting to more than 100 countries. Its wastewater program is documented under ISO 9001 and verified at 1500 V per panel, giving operators a traceable lining certificate for pH 1-14 effluent duty.

• Founded: 2008 in China.
• Coatings: GFS and FBE.
• QC: ISO 9001.
• Test: 1500 V per panel.

Advantages and Limitations

Advantages are the 1500 V-verified lining, the pH 1-14 tolerance, and rapid bolted erection that avoids field welding. Limitations are that the exact waste chemistry should be confirmed and the site must provide a level foundation and secondary containment. The tank is not for bulk hydrocarbons.

• Pros: pH 1-14.
• Pros: 1500 V seal.
• Limit: confirm chemistry.
• Limit: secondary bund.

Comparison of Coated Linings

Against painted welded steel, the GFS or FBE lining wins on 30-50 year corrosion life and a 1500 V-verified seal; against concrete it wins on speed and weight. The table contrasts the common materials for wastewater duty so the choice matches the pH and the budget.

• GFS: enamel lining.
• FBE: epoxy lining.
• Welded: shorter life.
• Concrete: slow build.

Conclusion

A coated steel wastewater tank is defined by a lining verified at 1500 V, an AWWA D103-09 shell, and a 30-50 year life for pH 1-14 wastewater. Specify the lining, demand the holiday-test record, and the tank will hold corrosive effluent without coating loss.

• Spec: AWWA D103-09.
• Verify: 1500 V test.
• Confirm: pH range.

Frequently Asked Questions (FAQ)

What is a coated steel wastewater tank?

It is a bolted steel tank built to AWWA D103-09 with a Glass-Fused-to-Steel or Fusion Bonded Epoxy lining that resists corrosive wastewater at pH 1-14 for a 30-50 year life.

Which coating is better, GFS or FBE?

Both resist pH 1-14; GFS is the glass enamel, FBE is the epoxy. The choice follows the project specification and the exact chemical, and both are verified at 1500 V.

What capacity is available?

Single bolted tanks range from 20 m3 to 60,000 m3, and larger wastewater systems use multiple parallel tanks.

What standards apply?

The shell follows AWWA D103-09 and ISO 28765, the lining is verified at 1500 V, and the program is documented under ISO 9001.

How is it installed?

Panels are bolted on a prepared foundation by local crews under supplier supervision; no interior field welding protects the lining.

Is it suitable for chemical wastewater?

Yes. Chemical and industrial effluent is a documented application; the pH 1-14 lining resists the aggressive, sulfide-rich stream.

Suggested CTA: Send your wastewater pH, volume, and site plan to our engineering team for a GFS or FBE wastewater tank specification and reference list.
