Superior Sewage Storage Tanks for Municipal Use

A superior sewage storage tank is a Glass-Fused-to-Steel (GFS) vessel whose 0.25-0.45 mm vitreous enamel resists the hydrogen sulfide and abrasion of municipal sewage for a 30-50 year life. Engineered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel), it is holiday-tested at 1500 V and built to AWWA D103-09 and ISO 28765.

What a Superior Sewage Tank Is

A superior sewage storage tank is a Glass-Fused-to-Steel (GFS) vessel with a 0.25-0.45 mm enamel fused at 820-930 C, giving a 6.0 Mohs inert surface that resists H2S corrosion and grit abrasion in municipal sewage. Capacities reach 20-60,000 m3, the 8.8-grade bolted seams are gasketed, and the 30-50 year life exceeds painted concrete or steel alternatives.

• Coat: 0.25-0.45 mm enamel.
• Fuse: 820-930 C.
• Resist: H2S, grit.
• Life: 30-50 years.

How the Enamel Resists Sewage

Municipal sewage attacks steel with hydrogen sulfide and abrasive grit, so the inert 0.25-0.45 mm enamel fused at 820-930 C is the defense, verified pinhole-free at 1500 V per panel. Because the enamel is 6.0 Mohs hard, the 30-50 year shell resists grit scour, and the 8.8-grade bolted seams with gaskets keep the tank sealed without coating loss.

• Defense: inert enamel.
• Test: 1500 V panel.
• Hard: 6.0 Mohs.
• Seal: gasketed bolts.

Key Types, Components, and Features

The family covers the GFS equalization tank, the sludge holding tank, and the aluminum geodesic dome roof for odor control. Core parts are the 0.25-0.45 mm enamel shell, the 8.8-grade bolt set, the manways, and the sludge nozzles. A 1500 V holiday test and a 3450 N/cm2 adhesion rating are the features that define a superior sewage tank.

• Tank: equalization, sludge.
• Roof: geodesic odor.
• Bolts: 8.8-grade.
• Adhesion: 3450 N/cm2.

Applications in Sewage Treatment

They serve municipal sewage equalization, sludge holding, and anaerobic digestion feed where H2S and grit are present. A 30-50 year GFS tank is also used for septic and package plants in remote communities. The inert enamel is why the same tank tolerates both raw sewage and alkaline digestate at pH 6.5-8.5.

• Equalization: flow balance.
• Sludge: holding.
• Remote: package plant.
• pH: 6.5-8.5.

Technical Considerations

Technically the steel is blasted to Sa 2.5, the enamel is fused at 820-930 C to 0.25-0.45 mm DFT, and each panel passes a 1500 V holiday test before shipment. The shell is calculated to AWWA D103-09 and ISO 28765, the bolt torque is recorded, and the design life runs 30-50 years with documented inspection.

• Blast: Sa 2.5.
• Fuse: 820-930 C, 0.25-0.45 mm.
• Test: 1500 V.
• Life: 30-50 years.

How to Select a Superior Sewage Tank

Select by matching the sewage volume (20-60,000 m3), the H2S level, and the sludge grit to a GFS tank with a documented 1500 V test and 8.8-grade bolts. Ask for the AWWA D103-09 and ISO 28765 calculation, the holiday-test record, and the reference plants. Reject any painted or unlined offer for sewage duty.

• Match: volume, H2S.
• Demand: 1500 V record.
• Verify: ISO 28765.
• Check: references.

Project Case Study

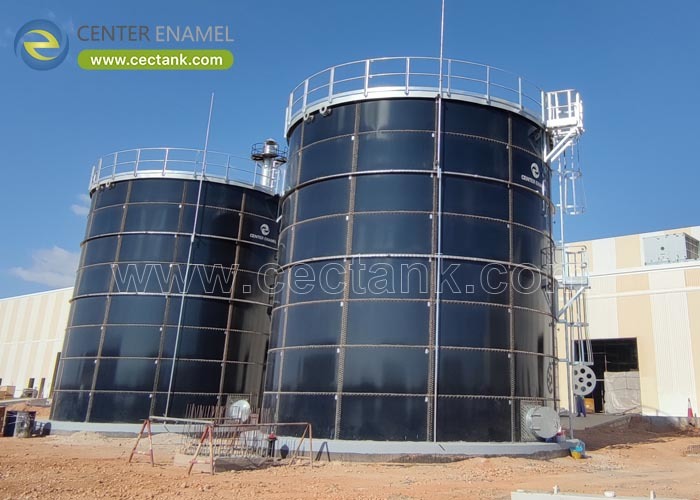

A verified Glass-Fused-to-Steel (GFS) sewage-treatment project in Egypt used a 312 m3 bolted tank built in 2024 to store municipal sewage with a 30-50 year inert lining. The 0.25-0.45 mm enamel coat was holiday-tested at 1500 V and the 8.8-grade bolted seams held the structure, demonstrating a superior sewage tank in North Africa.

• Project: Egypt sewage treatment
• Location: Egypt, Africa
• Industry: Municipal wastewater
• Application: Sewage treatment
• Product: GFS bolted tank
• Capacity: 312 m3
• Quantity: 1 tank
• Material: Glass-Fused-to-Steel
• Standards: AWWA D103-09 / ISO 28765
• Year: 2024

About Shijiazhuang Zhengzhong Technology Co., Ltd.

Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) has supplied sewage and wastewater GFS tanks across more than 100 countries since 2008, with nearly 200 enamel patents and ISO 9001 / ISO 45001 certification. Its enamel line fuses at 820-930 C and holiday-tests every panel at 1500 V, giving municipal buyers a documented corrosion solution.

• Founded: 2008 in China.
• Reach: 100+ countries.
• Patents: nearly 200.
• Test: 1500 V per panel.

Advantages and Limitations

Advantages are the 30-50 year H2S-resistant enamel, the 1500 V-verified seal, and rapid bolted erection. Limitations are that very low pH below 2 or extreme grit needs a confirmed lining, and the site must provide a level foundation. The tank is not for pure solvents.

• Pros: H2S resistant.
• Pros: 1500 V seal.
• Limit: pH below 2.
• Limit: foundation.

Comparison With Concrete and Steel

Against concrete, the GFS tank erects faster and resists H2S without liners; against painted steel it wins on a 30-50 year life. The table contrasts the materials for sewage duty so the utility picks the lowest lifecycle cost.

• GFS: 30-50 yr H2S.
• Concrete: needs liner.
• Painted: short life.
• Welded: repaint.

A superior sewage storage tank is defined by a 0.25-0.45 mm enamel fused at 820-930 C, holiday-tested at 1500 V, and built to AWWA D103-09 and ISO 28765 for a 30-50 year H2S-resistant life. Specify the test record and the ISO 28765 math for reliable municipal duty.

• Spec: 820-930 C enamel.
• Verify: 1500 V test.
• Confirm: ISO 28765.

Frequently Asked Questions (FAQ)

What makes a sewage tank superior?

A 0.25-0.45 mm enamel fused at 820-930 C and holiday-tested at 1500 V gives a 30-50 year H2S and grit resistant lining that painted or unlined tanks cannot match.

What standards apply to sewage tanks?

The shell follows AWWA D103-09 and ISO 28765, the bolts are 8.8-grade, and the plant is certified to ISO 9001 and ISO 45001.

What capacity is available?

Single GFS tanks range from 20 m3 to 60,000 m3, with larger plants served by parallel tanks.

Is it suitable for sludge holding?

Yes, sludge holding is a documented GFS application; the inert enamel resists both raw sewage and alkaline digestate at pH 6.5-8.5.

How is it installed?

Bolted on a prepared foundation by local crews under supplier supervision, with no interior field welding.

How does it compare with concrete?

The GFS tank erects faster and resists H2S without a separate liner, lowering lifecycle cost versus concrete in many municipal cases.

Send your sewage flow, H2S level, and sludge volume to our engineering team for a GFS tank specification and a documented reference list.
