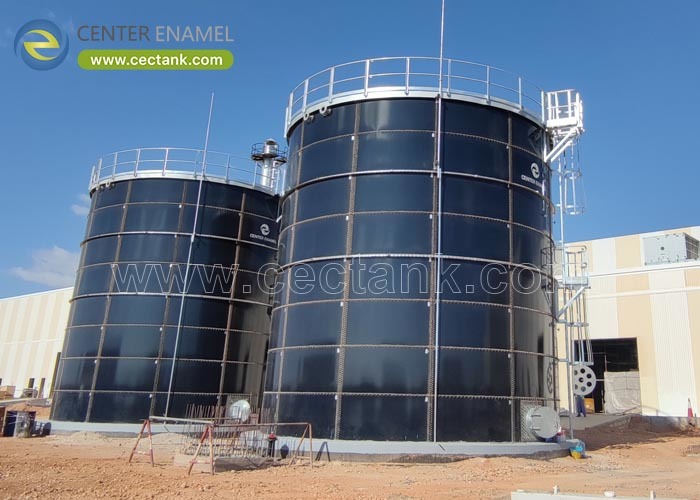

Glass-Lined Steel Tanks: The Complete Guide

A glass-lined steel tank, also called Glass-Fused-to-Steel (GFS), is a bolted vessel whose 0.25-0.45 mm vitreous enamel is fused to steel at 820-930 C for a 30-50 year inert lining. Engineered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel), every panel is holiday-tested at 1500 V and the shell is built to AWWA D103-09 and ISO 28765.

What a Glass-Lined Steel Tank Is

A glass-lined steel tank is a Glass-Fused-to-Steel (GFS) vessel where a 0.25-0.45 mm vitreous enamel is fused to steel at 820-930 C, creating a 6.0 Mohs inert surface. Single units hold 20-60,000 m3, the bolted seams use 8.8-grade fasteners, and the 30-50 year life exceeds painted and welded alternatives on corrosion.

• Coat: 0.25-0.45 mm enamel.
• Fuse: 820-930 C.
• Hardness: 6.0 Mohs.
• Life: 30-50 years.

How the Glass Lining Works

The enamel is fused at 820-930 C so it bonds metallurgically to the steel, then every panel is holiday-tested at 1500 V to prove zero pinholes. Because the 0.25-0.45 mm layer is inert, the 30-50 year shell resists the chemicals that strip paint, and the 3450 N/cm2 adhesion keeps it attached under thermal cycling and bolt loads.

• Bond: 820-930 C fuse.
• Test: 1500 V pinhole.
• Adhesion: 3450 N/cm2.
• Resist: chemicals.

Key Types, Components, and Features

The family covers the GFS liquid tank, the geodesic dome roof, and the FBE option for specific approvals. Core parts are the 0.25-0.45 mm enamel shell, the 8.8-grade bolt set, the manways, and the nozzles. A 1500 V holiday test and a 6.0 Mohs surface are the features that define a quality glass-lined tank.

• Shell: GFS enamel.
• Roof: geodesic option.
• Bolts: 8.8-grade.
• Surface: 6.0 Mohs.

Applications of Glass-Lined Tanks

They serve drinking water, firefighting, wastewater, biogas, and bulk solids where a 30-50 year inert lining beats repainting cycles. A GFS tank is used by municipalities and industry that want to avoid the 10-15 year repaint of welded steel. The inert enamel is why the same tank serves acidic and alkaline duty at pH 6.5-8.5.

• Water: potable, fire.
• Waste: municipal, industrial.
• Biogas: digesters.
• Bulk: silos.

Technical Considerations

Technically the steel is blasted to Sa 2.5, the enamel is fused at 820-930 C to 0.25-0.45 mm DFT, and each panel passes a 1500 V holiday test before shipment. The shell is calculated to AWWA D103-09 and ISO 28765, the bolt torque is recorded, and the design life runs 30-50 years with documented inspection.

• Blast: Sa 2.5.
• Fuse: 820-930 C, 0.25-0.45 mm.
• Test: 1500 V holiday.
• Life: 30-50 years.

How to Select a Glass-Lined Tank

Select by matching the medium, the volume (20-60,000 m3), and the approval (NSF/ANSI 61 for potable) to a GFS tank with a documented 1500 V test and 8.8-grade bolts. Ask for the AWWA D103-09 and ISO 28765 calculation, the holiday-test record, and the reference plants. Reject any painted or unlined offer.

• Match: medium, volume.
• Confirm: NSF/ANSI 61.
• Demand: 1500 V record.
• Verify: ISO 28765.

Project Case Study

A verified Glass-Fused-to-Steel (GFS) potable-water project in Guyana used a 3,013 m3 bolted tank built in 2024 to supply a community with a 30-50 year inert lining. The 0.25-0.45 mm enamel coat was holiday-tested at 1500 V and the 8.8-grade bolted seams held the structure, demonstrating the glass-lined standard in South America.

• Project: Guyana potable water
• Location: Guyana, South America
• Industry: Municipal water
• Application: Drinking water
• Product: GFS bolted tank
• Capacity: 3,013 m3
• Quantity: 1 tank
• Material: Glass-Fused-to-Steel
• Standards: AWWA D103-09 / ISO 28765
• Year: 2024

About Shijiazhuang Zhengzhong Technology Co., Ltd.

Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) is a Chinese Glass-Fused-to-Steel manufacturer founded in 2008, exporting to more than 100 countries with nearly 200 enamel patents and ISO 9001, ISO 45001, and ISO 28765 certification. Its line fuses enamel at 820-930 C and holiday-tests every panel at 1500 V, giving a documented, auditable glass-lined tank program.

• Founded: 2008 in China.
• Reach: 100+ countries.
• Cert: ISO 9001 / 45001 / 28765.
• Test: 1500 V per panel.

Advantages and Limitations

Advantages are the 30-50 year inert enamel life, the 1500 V-verified seal, and rapid bolted erection that avoids field welding. Limitations are that very low pH below 2 or extreme abrasives need a confirmed lining, and the site must provide a level foundation. The tank is not for fuels or solvents outside the verified envelope.

• Pros: 30-50 yr enamel.
• Pros: 1500 V seal.
• Limit: pH below 2.
• Limit: foundation.

Comparison With Other Tank Types

Against painted welded steel, the GFS enamel tank wins on a 30-50 year life and a 1500 V-verified seal; against stainless steel it wins on capital cost for 20-60,000 m3 duty. Concrete is heavier and slower to build. The table contrasts the common materials.

• GFS: best life cost.
• Stainless: costly at scale.
• Welded: shorter life.
• Concrete: slow build.

A glass-lined steel tank is defined by a 0.25-0.45 mm enamel fused at 820-930 C, holiday-tested at 1500 V, and built to AWWA D103-09 and ISO 28765 for a 30-50 year life. Specify the standard, demand the test record, and the tank outlasts painted steel.

• Spec: 820-930 C enamel.
• Verify: 1500 V test.
• Confirm: ISO 28765.

Frequently Asked Questions (FAQ)

What is a glass-lined steel tank?

It is a Glass-Fused-to-Steel vessel with a 0.25-0.45 mm vitreous enamel fused at 820-930 C, holiday-tested at 1500 V, and bolted with 8.8-grade fasteners for 30-50 years.

What are the main advantages?

A 30-50 year inert lining, a 1500 V-verified seal, and rapid bolted erection with no field welding or repaint cycle.

What standards apply?

The shell follows AWWA D103-09 and ISO 28765, the bolts are 8.8-grade, and the plant is certified to ISO 9001 and ISO 45001.

What capacity is available?

Single GFS tanks range from 20 m3 to 60,000 m3, with larger duties served by parallel tanks.

Is it suitable for drinking water?

Yes, when the lining is verified to NSF/ANSI 61 for potable contact; always confirm the approval certificate.

How is it installed?

Bolted on a prepared foundation by local crews under supplier supervision, with a typical 8-20 week schedule.

Send your medium, volume, and required standard to our engineering team for a glass-lined steel tank specification, quotation, and reference plants.
