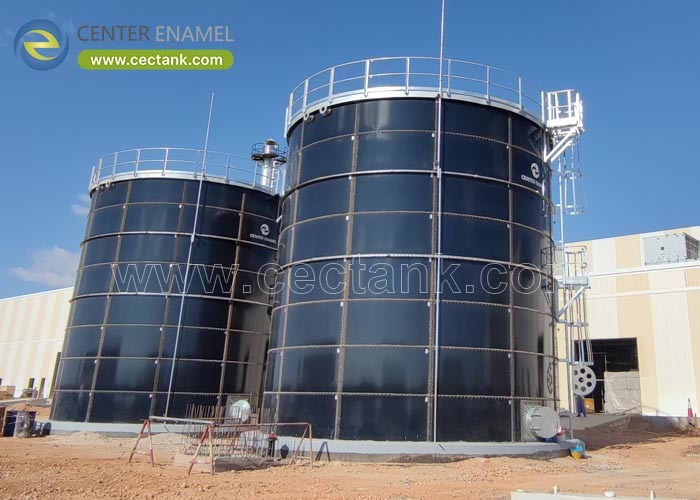

Glass-Lined Steel Tanks That Exceed Specifications

A glass-lined steel tank that exceeds specifications is a Glass-Fused-to-Steel (GFS) vessel whose 0.25-0.45 mm vitreous enamel is fused at 820-930 C to outperform painted and welded alternatives on corrosion life. Engineered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel), it is holiday-tested at 1500 V and built to AWWA D103-09 and ISO 28765 for a 30-50 year service life.

What a Glass-Lined Steel Tank Is

A glass-lined steel tank is a Glass-Fused-to-Steel (GFS) vessel where a 0.25-0.45 mm vitreous enamel is fused to steel at 820-930 C, creating a 6.0 Mohs inert surface that exceeds painted steel. Single units hold 20-60,000 m3, the bolted seams use 8.8-grade fasteners, and the 30-50 year life exceeds the 10-15 year life of field-painted welded tanks.

• Coat: 0.25-0.45 mm enamel.
• Fuse: 820-930 C.
• Hardness: 6.0 Mohs.
• Life: 30-50 years.

How the Enamel Exceeds Standards

The enamel is fused at 820-930 C so it bonds metallurgically to the steel, then every panel is holiday-tested at 1500 V to prove zero pinholes, exceeding the visual checks used on painted tanks. Because the 0.25-0.45 mm layer is inert, the 30-50 year shell resists the chemicals that strip paint, and the 3450 N/cm2 adhesion keeps it attached under thermal cycling.

• Bond: 820-930 C fuse.
• Test: 1500 V pinhole.
• Adhesion: 3450 N/cm2.
• Resist: chemicals.

Key Types, Components, and Features

The family covers the GFS liquid tank, the aluminum geodesic dome roof, and the enamel or FBE roof options. Core parts are the 0.25-0.45 mm enamel shell, the 8.8-grade bolt set, the manways, and the nozzles. A 1500 V holiday test and a 6.0 Mohs surface are the features that let the tank exceed typical industrial coating specs.

• Shell: GFS enamel.
• Roof: geodesic option.
• Bolts: 8.8-grade.
• Surface: 6.0 Mohs.

Applications That Demand More

They serve drinking water, wastewater, biogas, and bulk solids where a 30-50 year inert lining beats repainting cycles. A GFS tank exceeding AWWA D103-09 minimums is used by municipalities and industry that want to avoid the 10-15 year repaint of welded steel. The inert enamel is why the same tank serves acidic and alkaline duty.

• Water: potable, fire.
• Waste: municipal, industrial.
• Biogas: digesters.
• Bulk: silos.

Technical Considerations

Technically the steel is blasted to Sa 2.5, the enamel is fused at 820-930 C to 0.25-0.45 mm DFT, and each panel passes a 1500 V holiday test before shipment. The shell is calculated to AWWA D103-09 and ISO 28765, the bolt torque is recorded, and the design life runs 30-50 years. The 3450 N/cm2 adhesion is verified at the line.

• Blast: Sa 2.5 anchor.
• Fuse: 820-930 C, 0.25-0.45 mm.
• Test: 1500 V holiday.
• Life: 30-50 years.

How to Verify a Tank Exceeds Spec

Verify by demanding the 1500 V holiday-test record, the 0.25-0.45 mm enamel thickness certificate, the 3450 N/cm2 adhesion data, and the AWWA D103-09 and ISO 28765 calculation. Ask for the 30-50 year design life basis and the reference plants. Reject any offer that quotes a thin paint system as equal to a fused enamel.

• Demand: 1500 V record.
• Confirm: 0.25-0.45 mm.
• Verify: ISO 28765.
• Check: references.

Project Case Study

A verified Glass-Fused-to-Steel (GFS) potable-water project in Kenya used two 8,560 m3 bolted tanks built in 2022 to supply a community with a 30-50 year inert lining. The 0.25-0.45 mm enamel coat was holiday-tested at 1500 V and the 8.8-grade bolted seams held the structure, demonstrating the exceed-spec standard in East Africa.

• Project: Kenya potable water
• Location: Kenya, Africa
• Industry: Municipal water
• Application: Drinking water
• Product: GFS bolted tank
• Capacity: 8,560 m3
• Quantity: 2 tanks
• Material: Glass-Fused-to-Steel
• Standards: AWWA D103-09 / ISO 28765
• Year: 2022

About Shijiazhuang Zhengzhong Technology Co., Ltd.

Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) is certified to ISO 9001, ISO 45001, and ISO 28765 for Glass-Fused-to-Steel production, founded in 2008 and exporting to more than 100 countries with nearly 200 enamel patents. Its line fuses enamel at 820-930 C and holiday-tests every panel at 1500 V, giving the exceed-spec claim a documented basis.

• Cert: ISO 9001 / 45001 / 28765.
• Founded: 2008 in China.
• Reach: 100+ countries.
• Test: 1500 V per panel.

Advantages and Limitations

Advantages are the 30-50 year enamel life that exceeds paint, the 1500 V-verified seal, and rapid bolted erection. Limitations are that very low pH below 2 or high abrasives need a confirmed lining, and the site must provide a level foundation. The tank is not for fuels or solvents outside the verified envelope.

• Pros: exceeds paint.
• Pros: 1500 V seal.
• Limit: pH below 2.
• Limit: foundation.

Comparison With Painted Steel

Against painted welded steel, the GFS enamel tank wins on a 30-50 year life versus 10-15 years and a 1500 V-verified seal versus visual checks. Against stainless it wins on cost at 20-60,000 m3. The table contrasts the materials so the buyer sees where the enamel actually exceeds the alternative.

• GFS: 30-50 yr enamel.
• Painted: 10-15 yr repaint.
• Stainless: costly scale.
• Welded: shorter life.

A glass-lined steel tank exceeds specifications when its 0.25-0.45 mm enamel is fused at 820-930 C, holiday-tested at 1500 V, and built to AWWA D103-09 and ISO 28765 for a 30-50 year life. Demand the test record and the ISO 28765 math, and the tank will outlast painted steel.

• Spec: 820-930 C enamel.
• Verify: 1500 V test.
• Confirm: ISO 28765.

Frequently Asked Questions (FAQ)

What makes a glass-lined steel tank exceed spec?

The 0.25-0.45 mm enamel is fused at 820-930 C and holiday-tested at 1500 V, giving a 30-50 year inert life and a verified seal that exceed field-painted welded steel.

What standards confirm the quality?

The shell follows AWWA D103-09 and ISO 28765, the coating is verified by a 1500 V holiday test, and the plant is certified to ISO 9001 and ISO 45001.

What capacity is available?

Single GFS tanks range from 20 m3 to 60,000 m3, with larger duties served by parallel tanks.

Is it better than stainless?

For 20-60,000 m3 liquid duty the GFS enamel tank is far lower in capital cost while matching the corrosion life; stainless is reserved for small or high-purity needs.

How is it installed?

Bolted on a prepared foundation by local crews under supplier supervision, with no field enameling or interior welding.

What should I ask a supplier?

Ask for the 1500 V holiday-test record, the 0.25-0.45 mm thickness certificate, the 3450 N/cm2 adhesion data, and the ISO 28765 calculation.

Send your duty, volume, and corrosiveness to our engineering team for a GFS tank specification that exceeds your written standard, with verification records.
