Aluminum Dome Roof: Self-Supporting Covers for Storage Tanks

Municipal utilities and industrial operators across water, wastewater, and bulk-storage terminals face the same pressure: cover tanks reliably, control emissions, and avoid a roof that needs constant repainting. A cover that leaks at the seam or relies on a fragile coating turns a sealed asset back into a maintenance sink.

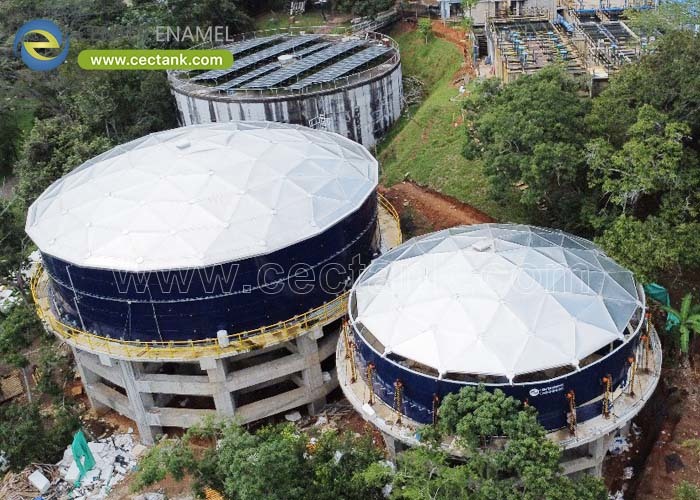

Engineered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel), an aluminum geodesic dome roof is a self-supporting, coating-free cover that spans a storage tank without internal columns, sealing the liquid from rain, snow, and vapor while removing the conventional roof and its upkeep from the maintenance budget.

1. What an Aluminum Geodesic Dome Roof Delivers

An aluminum geodesic dome roof is a self-supporting space-frame cover that spans a storage tank without internal columns, sealing the liquid from rain, snow, and vapor while removing the need for a conventional roof and its maintenance. Because the triangulated aluminum grid carries load on its own geometry, a single dome can cover diameters from 10 m to 120 m and survive wind speeds up to 200 km/h when rated for the site.

• Span: Self-supporting geometry covers 10-120 m diameters with no internal columns to obstruct access or mixing.
• Load path: The triangulated aluminum space frame carries snow, wind, and equipment loads through its own geometry.
• Sealing: Gasketed aluminum panels close the tank against weather and reduce breathing and vapor loss.
• Weight: At 15-40 kg/m2 the dome adds little dead load to the existing shell and foundation.
• Why it matters: A dome turns an open or weakly covered tank into a sealed, low-maintenance asset.

2. Structure, Span, and Loads

The dome is built from factory-fabricated aluminum struts and nodes bolted into a geodesic pattern, so site welding is minimal and the structure arrives as a kit. Loads are verified against ASCE 7 for snow and wind and against the tank's own shell and ring girder, because a dome that is under-designed for local climate will deflect, leak at the seam, or overload the tank it covers. Aluminum 6061-T6 resists corrosion without paint, which is why these roofs last 40-60 years with near-zero upkeep.

• Fabrication: Struts and nodes are cut and drilled in the shop, then bolted on site with no field welding of the dome.
• Loads: Snow 0.5-3.0 kPa and wind up to 200 km/h are checked per ASCE 7 for the actual location.
• Shell check: The tank roof ring and shell must accept the dome reaction; we verify this before supply.
• Alloy: 6061-T6 aluminum needs no coating and shrugs off atmospheric and vapor corrosion.
• Why it matters: Correct load verification is what keeps the dome and the tank beneath it safe for decades.

3. Coating-Free Aluminum and Lifecycle

Unlike a steel cone roof that must be blasted and repainted on a cycle, an aluminum geodesic dome is coating-free and therefore free of the repaint, touch-up, and containment headaches that dominate roof maintenance budgets. The sealed envelope also cuts product loss and odor, which matters at terminals under emission limits. A written warranty backs the structure, and the bolted aluminum kit means a damaged panel can be swapped without closing the whole tank, delivering a 40-60 year design life.

• Maintenance: No painting and no cathodic system; inspection is visual and infrequent.
• Product loss: The closed dome reduces breathing and standing losses versus an open or weakly sealed top.
• Warranty: A documented warranty backs the structure and the panel kit for the operator.
• Repair: A single bolted panel is swapped without draining or shutting the tank for long.
• Why it matters: Low lifecycle cost is the reason terminals choose aluminum domes over steel roofs.

Engineering Assurance and Project Support

Every structure delivered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) is engineered against EN 1090 and AWWA D103-09 with finite element verification of shell, roof and nozzle loads, fabricated under ISO 9001 and ISO 45001 control, inspected across one hundred percent of critical joints, and assembled with Grade 8.8 bolts and manufacturer-certified sealant.

An aluminum geodesic dome is not an accessory; it is the roof that makes a storage tank sealed, safe, and cheap to keep for 40 years or more.

Frequently Asked Questions (FAQ)

What is an aluminum geodesic dome roof used for?

It covers water, wastewater, and bulk-storage tanks to seal them from weather and vapor, spanning 10-120 m without internal columns.

Which standard governs an aluminum dome roof?

The dome structure is verified to ASCE 7 for snow and wind and to AWWA D103-09 for the tank it covers; local codes then confirm the choice.

How long does an aluminum dome roof last?

With coating-free 6061-T6 aluminum the design life is 40-60 years and maintenance is near-zero, limited to occasional panel inspection.

Can an aluminum dome roof be customized for my site?

Yes. Span, vent, and access details are matched to the tank, and a written warranty backs the structure. Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) issues drawings and the inspection package per project.
