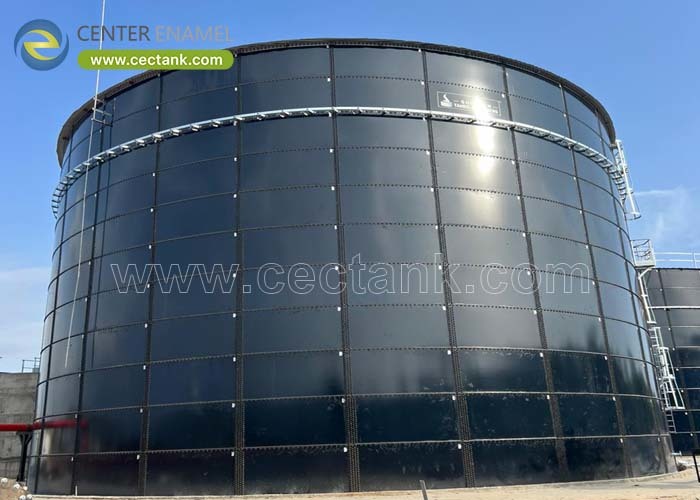

Steel Fire Protection Water Tank: NFPA 22 and GFS Options

Municipal utilities and industrial operators across industrial and commercial sites face the same pressure: store fire-protection water safely, satisfy tightening environmental and safety rules, and keep the asset in service for decades. A liner that blisters, a seam that weeps, or a coating that quits turns a storage asset into a compliance liability and a maintenance sink.

Engineered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel), a bolted GFS tank pairs code-based structure with a Glass-Fused-to-Steel (GFS) enamel coating built for reliable fire-water reserves. The result meets NFPA 22 and AWWA D103-09 and holds its margin through thermal cycles, fill-and-draw, and corrosive service.

1. What a GFS fire-protection water Tank Is Built to Deliver

A GFS tank stores fire-protection water under conditions where the wrong material or joint fails silently. The specification must answer corrosion, contamination, and structural load before a plate is cut, because fire-protection water duty leaves no margin for a coating that quits or a seam that weeps, and a documented 30-50 year service life depends on choices made at the drawing stage.

· Service fit: Stores fire-protection water where reliable fire-water reserves drives the whole specification, from shell plate to roof and fittings.

· Structural basis: bolted with the shell sized by the one-foot method where welded, or by course rating where bolted, then checked for wind and seismic load.

· Capacity: Single tanks span 50-15,000 m3, so one vessel can carry a plant's daily throughput without a second shell.

· Lifecycle: A 30-50 year design life is realistic only with a documented inspection and recoating plan from day one.

· Why it matters: The tank is the buffer between a volatile inventory and the environment; its margin is the plant's margin.

2. Material, Coating, and Code

Material choice decides how the tank resists the product and the environment. GFS is selected for reliable fire-water reserves, then protected by surface preparation and a vitreous enamel fused at 820-930°C to 0.25-0.40 mm DFT that resists abrasion and chemical attack. Grade and thickness follow the corrosivity of the service, the local climate, and the target design life, because once the shell is erected the metal that carries the load cannot be re-specified without a costly rebuild.

· Material: GFS is the baseline; grade and thickness follow the corrosivity of fire-protection water and the local climate.

· Surface prep: Plate is shot-blasted to Sa 2.5 before the enamel is fused so the film bonds instead of sitting on mill scale.

· Standards: Built to NFPA 22 and AWWA D103-09, with weld procedures and NDE matched to the code.

· Corrosion defense: A vitreous-enamel coating plus cathodic protection where soil or product demands it keeps the shell at its design thickness.

· Why it matters: Once in service you cannot easily re-specify the material; the choice made here sets the maintenance curve for decades.

3. Sizing, Joints, and Inspection

A GFS tank earns its rating at the joint and the hydrotest, not on the sales drawing. Bolted seams are gasketed and torqued to spec, the enamel is holiday tested at 1500 V across one hundred percent of the surface, the shell is proven under water to 1.25x the design head, and the mill certificates, NDE reports, and coating-thickness logs travel with the tank into its operating life. Inspection is what turns a fabricated shell into an asset a regulator will permit and an insurer will cover.

· Joints: Bolted seams are gasketed and torqued so hidden defects do not become leaks under hydrostatic head.

· Hydrotest: The shell is hydrostatically tested to 1.25x the design head or to code, proving every course before backfill.

· Fit-up: 8.8-grade bolts and controlled field fit-up keep an erected tank true to its calculated geometry.

· QA package: Mill certificates, NDE reports, and coating-thickness logs are compiled per tank and handed to the operator.

· Why it matters: Inspection is what turns a fabricated shell into a tank you can insure and permit.

Engineering Assurance and Project Support

Every tank delivered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) is engineered against AWWA D103-09 and EN 1090 with finite element verification of shell, roof and nozzle loads, fused at 820-930°C under ISO 9001 and ISO 45001 control, holiday tested at 1500 V across one hundred percent of the surface, and assembled with Grade 8.8 bolts and manufacturer-certified sealant.  Coating-thickness logs, holiday-test reports, and hydrotest records travel with every fire-protection water project so the design story survives audit against NFPA 22.

A fire-protection water tank is not a commodity shell; it is a structural calculation, a Glass-Fused-to-Steel (GFS) coating system, and an inspection record that has to hold for 30 years or more.

Frequently Asked Questions (FAQ)

What is a GFS fire-protection water tank used for?

It stores fire-protection water under controlled conditions, protecting the product from contamination and the site from release while meeting NFPA 22 for structure and inspection.

Which standard governs a bolted fire-protection water tank?

The primary basis is NFPA 22, supported by AWWA D103-09 for materials, welding, and corrosion protection; local codes and permits then confirm the choice.

How is corrosion controlled on a fire-protection water tank?

GFS is specified for the service, plate is blasted to Sa 2.5 and enamel-fused, and cathodic protection is added where soil or product demands it. The coating-thickness log is verified before shipment.

Can a fire-protection water tank be customized for my site?

Yes. Shell height, roof type, nozzles, mixers, and instrumentation are matched to throughput, climate, and code. Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) issues drawings and an inspection package per tank.

·
