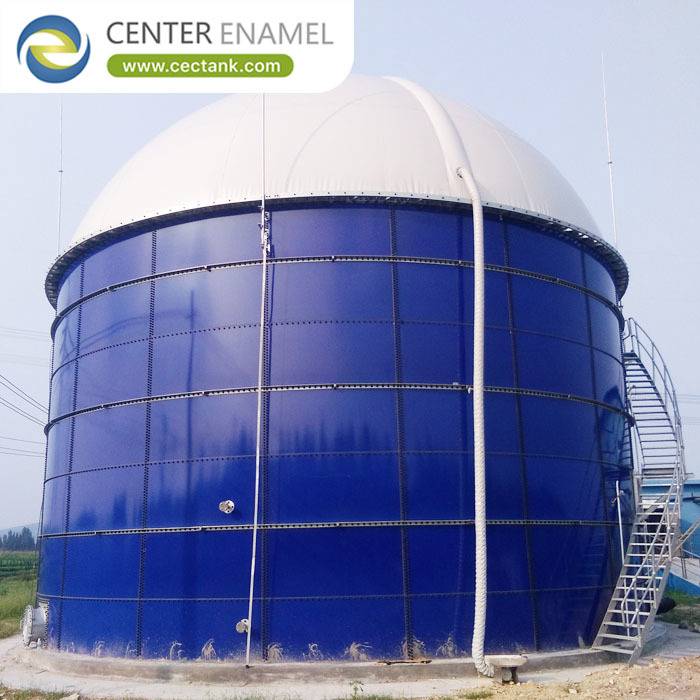

Biogas Storage Tank: GFS Digesters for Anaerobic Treatment

Biogas and anaerobic-digestion plants across wastewater and agri-waste plants face the same pressure: store biogas safely, capture gas for energy, and keep the asset in service for decades. A liner that blisters, a seam that weeps, or a coating that quits turns a storage asset into a compliance liability and a maintenance sink.

Engineered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel), a bolted GFS tank pairs code-based structure with a Glass-Fused-to-Steel (GFS) enamel coating built for anaerobic digester gas and slurry. The result meets AWWA D103-09 and ISO 28765 and holds its margin through thermal cycles, fill-and-draw, and corrosive service.

A GFS tank stores biogas under conditions where the wrong material or joint fails silently. The specification must answer corrosion, contamination, and structural load before a plate is cut, because biogas duty leaves no margin for a coating that quits or a seam that weeps, and a documented 30-50 year service life depends on choices made at the drawing stage.

• Service fit: Stores biogas where anaerobic digester gas and slurry drives the whole specification, from shell plate to roof and fittings.
• Structural basis: bolted with the shell sized by the one-foot method where welded, or by course rating where bolted, then checked for wind and seismic load.
• Capacity: Single tanks span 100-20,000 m3, so one vessel can carry a plant's daily throughput without a second shell.
• Lifecycle: A 30-50 year design life is realistic only with a documented inspection and recoating plan from day one.
• Why it matters: The tank is the buffer between a volatile inventory and the environment; its margin is the plant's margin.

Material choice decides how the tank resists the product and the environment. GFS is selected for anaerobic digester gas and slurry, then protected by surface preparation and a vitreous enamel fused at 820-930°C to 0.25-0.40 mm DFT that resists abrasion and chemical attack. Grade and thickness follow the corrosivity of the service, the local climate, and the target design life, because once the shell is erected the metal that carries the load cannot be re-specified without a costly rebuild.

• Material: GFS is the baseline; grade and thickness follow the corrosivity of biogas and the local climate.
• Surface prep: Plate is shot-blasted to Sa 2.5 before the enamel is fused so the film bonds instead of sitting on mill scale.
• Standards: Built to AWWA D103-09 and ISO 28765, with weld procedures and NDE matched to the code.
• Corrosion defense: A vitreous-enamel coating plus cathodic protection where soil or product demands it keeps the shell at its design thickness.
• Why it matters: Once in service you cannot easily re-specify the material; the choice made here sets the maintenance curve for decades.

A GFS tank earns its rating at the joint and the hydrotest, not on the sales drawing. Bolted seams are gasketed and torqued to spec, the enamel is holiday tested at 1500 V across one hundred percent of the surface, the shell is proven under water to 1.25x the design head, and the mill certificates, NDE reports, and coating-thickness logs travel with the tank into its operating life. Inspection is what turns a fabricated shell into an asset a regulator will permit and an insurer will cover.

• Joints: Bolted seams are gasketed and torqued so hidden defects do not become leaks under hydrostatic head.
• Hydrotest: The shell is hydrostatically tested to 1.25x the design head or to code, proving every course before backfill.
• Fit-up: 8.8-grade bolts and controlled field fit-up keep an erected tank true to its calculated geometry.
• QA package: Mill certificates, NDE reports, and coating-thickness logs are compiled per tank and handed to the operator.
• Why it matters: Inspection is what turns a fabricated shell into a tank you can insure and permit.

Every tank delivered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) is engineered against AWWA D103-09 and EN 1090 with finite element verification of shell, roof and nozzle loads, fused at 820-930°C under ISO 9001 and ISO 45001 control, holiday tested at 1500 V across one hundred percent of the surface, and assembled with Grade 8.8 bolts and manufacturer-certified sealant. Coating-thickness logs, holiday-test reports, and hydrotest records travel with every biogas project so the design story survives audit against AWWA D103-09.

A biogas tank is not a commodity shell; it is a structural calculation, a Glass-Fused-to-Steel (GFS) coating system, and an inspection record that has to hold for 30 years or more.

It stores biogas under controlled conditions, protecting the product from contamination and the site from release while meeting AWWA D103-09 for structure and inspection.

The primary basis is AWWA D103-09, supported by ISO 28765 for materials, welding, and corrosion protection; local codes and permits then confirm the choice.

GFS is specified for the service, plate is blasted to Sa 2.5 and enamel-fused, and cathodic protection is added where soil or product demands it. The coating-thickness log is verified before shipment.

Yes. Shell height, roof type, nozzles, mixers, and instrumentation are matched to throughput, climate, and code. Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) issues drawings and an inspection package per tank.
