Myanmar Pennisetum Purpureum Biogas Project Powered by GFS Tanks and CSTR Process

Myanmar, with its tropical climate and abundant agricultural resources, is ideally positioned to develop renewable bioenergy from Pennisetum Purpureum. This fast-growing perennial grass, commonly known as Napier grass, thrives across the country and offers exceptional potential as a biogas feedstock. This article examines the technical aspects of converting this biomass into renewable energy, showcasing how advanced biogas solutions from a professional provider can transform agricultural by-products into a reliable power source for Myanmar's growing energy needs.

Pennisetum Purpureum cultivation is expanding rapidly across Myanmar, favored by the country's tropical climate, abundant rainfall, and year-round sunlight. Characterized by low maintenance requirements and high tolerance to diverse soil conditions, it serves as an ideal crop for agricultural developments. Beyond its traditional application as high-protein livestock forage, Pennisetum Purpureum is increasingly utilized as a high-value industrial feedstock. Its massive lignocellulosic content makes it an exceptional candidate for decentralized waste-to-energy projects. The crop offers a favorable carbon-to-nitrogen ratio that promotes stable and productive microbial activity during anaerobic digestion, resulting in high methane conversion rates and reliable energy outputs.

Understanding the conversion of restaurant food waste to biogas provides valuable insights into the anaerobic digestion process that also applies to Pennisetum Purpureum. Food waste, like Napier grass, undergoes a multi-stage biological pathway in an oxygen-free environment. The process begins with collection and pre-treatment, where organic waste is shredded and homogenized to create a consistent slurry. This is followed by hydrolysis, where complex organic polymers and fibers are broken down by extracellular bacterial enzymes into soluble monomers and then converted into volatile fatty acids. Specialized microorganisms then catabolize these intermediate fatty acids into acetic acid, carbon dioxide, and hydrogen. Finally, highly sensitive methanogenic archaea consume these final chemical compounds to generate valuable bio-methane, producing a stable supply of renewable biogas. This sequential process mirrors the biological conversion of grass biomass.

At the heart of high-efficiency biogas facilities is the CSTR (Continuous Stirred-Tank Reactor) process. This advanced anaerobic treatment technology serves as the core processing unit that converts organic waste like Pennisetum Purpureum into biogas and digestate. The CSTR process involves feeding the prepared organic feedstock continuously or semi-continuously into a sealed reactor. The reactor is equipped with a mechanical stirring device that ensures fermentation raw materials and anaerobic microorganisms are in a state of complete and thorough mixing. This constant agitation is crucial for maintaining a uniform temperature and preventing the settling of solids, which allows for the efficient degradation of high-concentration organic matter. Research has confirmed that CSTR technology can achieve stable biogas production even when processing challenging, high-solid feedstocks.

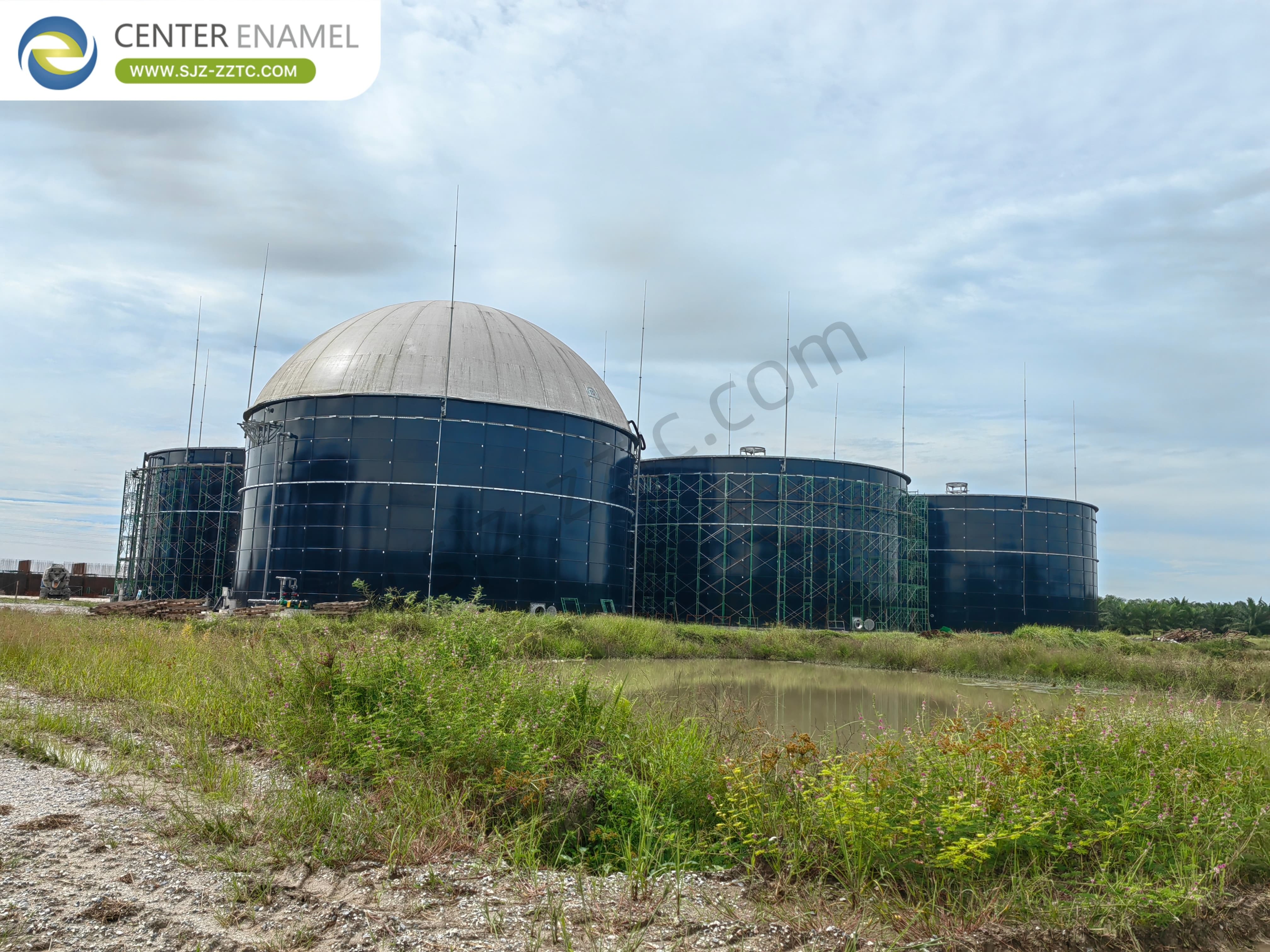

For the demanding environment of anaerobic digestion, storage infrastructure must offer exceptional durability and corrosion resistance. Glass-Fused-to-Steel (GFS) tanks are the premium choice, created by firing glass onto steel at high temperatures to form an inert, durable bond. This technology provides the strength and flexibility of steel combined with the outstanding corrosion resistance of glass, making GFS tanks ideal for withstanding the corrosive organic acids and hydrogen sulfide produced during digestion. When paired with a Double Membrane Roof, the system achieves optimal airtightness for biogas collection and odor control. These systems feature pneumatic air-buffering technology maintaining 99.9% methane containment with a 15-20+ year service life. This combination of structural strength and membrane flexibility is a cost-effective solution that reduces construction costs while maximizing site space efficiency.

A professional Biogas Solution Provider offers a diverse range of storage tank cover solutions to meet various project requirements and environmental conditions:

• Aluminum Geodesic Dome Roof: Offers advanced corrosion resistance, expansive clear span capability, and cost-effective construction with minimal maintenance.
• Glass-Fused-to-Steel Roof: Provides excellent air-tightness for pressurized structures and demanding applications requiring odor control.
• Single Membrane Roof: A viable option for anaerobic digestion and biogas applications, offering airtightness for biogas collection.
• Aluminum Alloy Trough Deck Roof: An economical option for water and wastewater storage without requiring extreme airtightness.
• Stainless Steel Roof: Delivers superior anti-corrosion performance and a long service life for harsh environments.
• FRP Roof: A lightweight, versatile choice suitable for applications where extreme airtightness is not required.

A fully functional biogas plant requires reliable auxiliary equipment beyond the digester and storage tank. Essential components include:

• Gas Holder: Provides safe, flexible storage for the produced biogas.
• Solid-Liquid Separator: Divides digestate into solid waste and liquid fertilizer, creating valuable agricultural by-products.
• Dehydration and Desulfurization Tank: Purifies raw biogas by removing moisture and corrosive hydrogen sulfide to protect downstream equipment.
• Lifting Pump: Ensures reliable transfer of slurry between different processing units.
• Screw Sludge Dewatering Machine: Reduces the volume of final sludge, lowering disposal costs.

For Myanmar's biogas projects, partnering with a professional EPC contractor offers distinct advantages:

• Tailored Anaerobic Solutions: Expertise in selecting the right technology (CSTR, UASB, USR, IC) for specific waste characteristics and local conditions.
• Local Experience: Deep understanding of Myanmar's tropical climate, environmental regulations, and construction norms.
• High-Quality Manufacturing: Asia's largest GFS tank production base with over 200 patented enamel formulas, ensuring premium product quality.
• International Quality Standards: Compliance with ISO 28765, AWWA D103, NSF/ANSI 61, and CE standards, ensuring bankable project quality.
• Rapid Installation: Bolted tank designs for fast on-site assembly, reducing construction time and accelerating return on investment.
• Complete After-Sales Support: Dedicated teams for maintenance, technical guidance, and operational optimization.

Myanmar's journey towards renewable energy independence is significantly bolstered by the conversion of Pennisetum Purpureum into biogas. By utilizing advanced anaerobic technologies like the CSTR process and robust storage solutions such as GFS Tanks, the country can efficiently manage agricultural waste and generate clean power. With the support of a leading Biogas Solution Provider, Myanmar can successfully implement large-scale projects that not only meet energy demands but also promote environmental sustainability and agricultural resilience across the nation. This approach reduces reliance on fossil fuels, mitigates greenhouse gas emissions, and aligns with Myanmar's renewable energy goals.
