Nepal Silage Straw into Biogas: GFS Tanks and Relaible Biogas Project Contractor

Nepal's agricultural sector generates substantial crop residues, presenting both a waste management challenge and a renewable energy opportunity. This article explores how advanced anaerobic digestion technologies, featuring Glass-Fused-to-Steel (GFS) tanks and professional CBG Plant EPC Solutions, can transform silage straw into clean energy across Nepal, addressing agricultural waste issues and contributing to the nation's energy security.

Nepal's diverse agricultural sector produces millions of tons of crop residues annually, with silage straw emerging as a particularly valuable biomass resource. The Terai region, in particular, generates substantial agricultural crop residues, while livestock and municipal waste also contribute to the nation's waste biomass potential. Research indicates that Nepal could produce an estimated 129-387 million cubic meters of biogas annually from available waste biomass, alongside 0.6-1.9 million tons of fertilizer. Traditional management practices for this crop residue often involve open burning, particularly in the Terai region, contributing to air pollution, soil degradation, and loss of valuable organic matter. This conventional approach not only harms the environment but represents a missed opportunity for energy generation. The growing recognition of these challenges has catalyzed a shift toward advanced biomass utilization strategies, positioning silage straw as a prime candidate for commercial-scale bioenergy production.

The conversion of silage straw into methane-rich biogas follows a sophisticated four-stage biological pathway known as anaerobic digestion. Silage straw, preserved through controlled anaerobic ensiling, retains soluble sugars and organic matter, making it exceptionally suitable for bioenergy conversion. The process begins with hydrolysis, where complex cellulose fibers and lignocellulosic structures are enzymatically broken down into simple sugars. Acid-producing microorganisms then ferment these compounds into volatile fatty acids and alcohols during the acidogenesis stage. Specialized acetogenic bacteria subsequently convert these intermediates into acetic acid, hydrogen, and carbon dioxide. The final methanogenesis stage sees methanogenic archaea metabolize these precursors, producing biogas typically containing 55-70% methane. This biological sequence delivers multiple benefits for Nepal, including mitigation of crop burning, production of clean energy for rural communities, and generation of nutrient-rich organic fertilizer that can replace expensive synthetic alternatives.

The Continuous Stirred-Tank Reactor (CSTR) represents the optimal anaerobic process for managing the high-solid fractions typical of silage straw feedstocks. Equipped with mechanical stirring devices, the CSTR system ensures complete mixing of fermentation raw materials and microorganisms within a closed tank. By feeding continuously or semi-continuously at a constant temperature (typically mesophilic conditions of 30-38°C), the CSTR maintains a uniform biological environment that effectively suppresses surface scum formation and prevents sedimentation. Research has demonstrated that CSTR systems achieve over 75% volatile solids removal with biogas production reaching up to 613 mL per gram of volatile solids when co-digesting silage straw with other organic wastes. The technology has proven particularly effective for silage straw due to its pre-fermented structure, enabling faster microbial reaction and higher biogas production efficiency compared to dry straw. This makes CSTR the preferred choice for medium- and large-scale biogas projects across Nepal's agricultural regions.

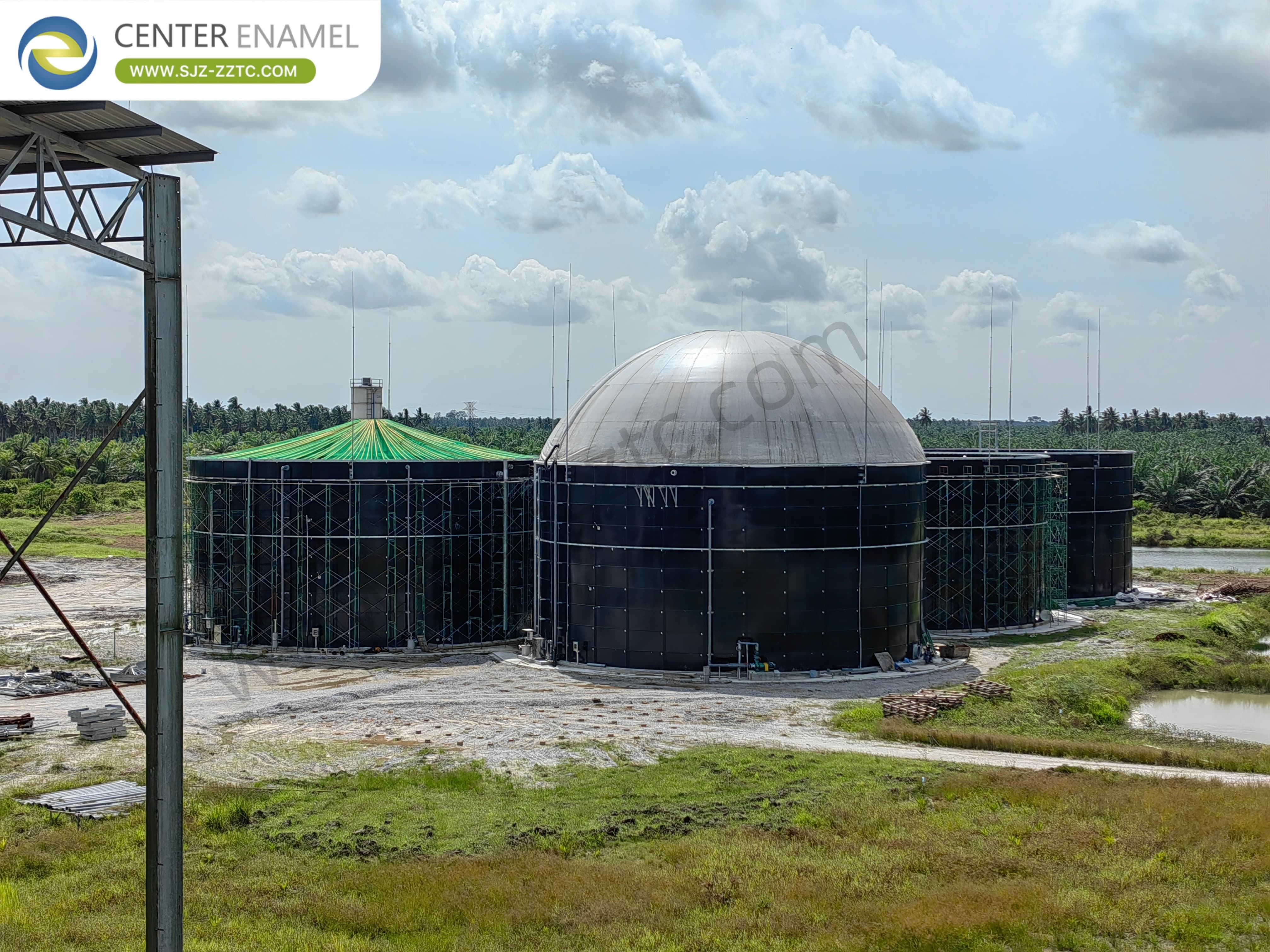

Glass-Fused-to-Steel (GFS) tanks provide premium containment infrastructure for Nepal's silage straw biogas projects. The technology fuses high-strength steel plates with a protective glass coating at approximately 820°C-930°C, creating an inert and inorganic bond that combines steel's structural strength with glass's outstanding corrosion resistance. This double coating layer structure (2C2F) forms an impenetrable barrier against the aggressive organic acids and corrosive hydrogen sulfide generated during anaerobic degradation. The double membrane roof system represents the preferred covering solution for these tanks, offering cost optimization and space efficiency. This integrated system consists of an outer membrane that maintains a constant shape via a support air fan and an inner membrane that adjusts to the volume of stored biogas, providing superior air-tightness essential for biogas collection and odour control.

Center Enamel offers a full range of tank and cover configurations to suit diverse project needs:

• Galvanized Steel Tanks: Provide a tough, wear-resistant coating for superior corrosion resistance.
• Fusion Bonded Epoxy Tanks: Developed with AkzoNobel for high-performance coating in demanding applications.
• Stainless Steel Tanks: Available in AISI 304/316 grades for high-purity or harsh environment storage.

• Aluminum Geodesic Dome Roofs: Offer excellent corrosion resistance and clear span capability.
• Glass-Fused-to-Steel Roofs: Ensure airtightness for pressurized structures and odor control.
• Single/Double Membrane Roofs: Optimized for anaerobic digestion and biogas collection.
• Aluminum Alloy Trough Deck Roofs: An economical option for water and wastewater storage.
• Stainless Steel Roofs: Deliver superior anti-corrosion performance and long service life.
• FRP Roofs: Suitable for applications without airtightness requirements.

A complete biogas system requires comprehensive auxiliary equipment to ensure efficient operation:

• Gas Holders: Provide secure biogas storage and pressure maintenance for consistent utilization.
• Black Membranes: Serve as secondary containment or lagoon covers for additional biogas collection.
• Solid-Liquid Separators: Process digestate into liquid fertilizer and solid fractions suitable for composting or animal bedding.
• Torch Systems: Ensure safe combustion of excess biogas during maintenance or system upsets, preventing methane emissions.
• Lifting Pumps: Manage feedstock transfer and digestate recirculation throughout the system.
• Dehydration & Desulfurization Tanks: Remove moisture and hydrogen sulfide to protect downstream equipment and ensure biogas quality.
• Screw Sludge Dewatering Machines: Efficiently reduce digestate volume for easier handling and transport.

Center Enamel delivers comprehensive turnkey solutions for Nepalese silage straw biogas projects as a professional EPC Contractor providing CBG Plant EPC Solutions. The company's comprehensive service scope encompasses full EPC services, process packages, and equipment supply. Key advantages include:

• A 150,000㎡ R&D and production base with manufacturing capacity of 250,000 tank sheets annually.
• Over 500 employees supporting 100+ countries worldwide.
• Full certification compliance including CE/EN1090, ISO9001, NSF61, WRAS, and EN28765.
• Design standards meeting AWWA D103, OSHA, EN28765, and EuroCode requirements.
• Multiple mature anaerobic processes: CSTR for high-solid raw materials; UASB for liquid-phase treatment; USR for high-suspended-solids waste; and IC for high-capacity industrial facilities.
• As Asia's leading GFS tank manufacturer, Center Enamel offers unmatched technical expertise in anaerobic solutions for agricultural residues.

The transformation of silage straw into renewable biogas represents a significant opportunity for Nepal to address agricultural waste challenges, reduce emissions, and enhance rural energy security. With advanced GFS tanks providing exceptional corrosion resistance and double membrane roofs optimizing costs and space efficiency, modern biogas projects can deliver reliable performance across Nepal's diverse environments. As a professional EPC Contractor providing comprehensive CBG Plant EPC Solutions, Center Enamel offers the expertise and premium equipment required to convert agricultural residues into clean energy, supporting Nepal's renewable energy and circular economy goals while creating sustainable value for farming communities.
