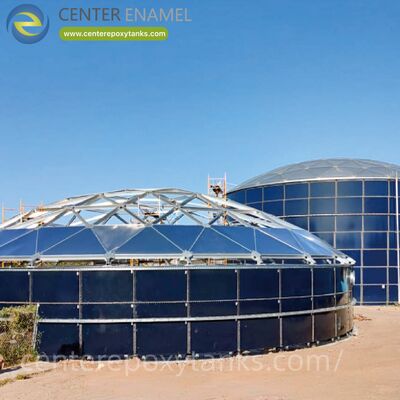

Bolted Steel Tanks as Mineral Storage Tanks: Engineered with heavy-duty panels to handle high-density mineral ores and dust.

Bolted Steel Tanks as Mineral Storage Tanks: Engineered with heavy-duty panels to handle high-density mineral ores and dust.

The mining and mineral processing industry operates under some of the most grueling structural conditions in the world. Storing mineral ores, concentrates, lime, or coal requires a vessel that can withstand extreme density, high abrasive friction, and the potential for chemical aggression. Unlike standard agricultural grains, mineral solids possess a high specific gravity, exerting immense lateral and vertical pressures that can cause structural deformation in conventional tanks. Furthermore, the sharp, jagged nature of crushed ores creates a constant "scouring" effect during filling and discharge. For a mining operation or smelting facility, a mineral storage tank must be a high-performance structural fortress designed to prevent mechanical failure while ensuring the purity and dry state of the resource.

Traditional containment, such as concrete silos or field-welded steel bins, often succumbs to surface erosion or hairline structural cracking under the weight of heavy minerals. To provide a high-strength, economical alternative, the industry has standardized on Glass-Fused-to-Steel Tanks (GFS Tanks). These structures offer a factory-certified, corrosion-free environment that combines the immense tensile strength of steel with the unmatched hardness of a glass-fused surface.

Product Application: Heavy-Duty Mineral Management

Our GFS Mineral Storage Tanks are engineered for the most demanding sectors of the extractive industry:

Metal Ore Storage: Containment for high-density copper, iron, gold, and nickel concentrates.

Industrial Minerals: Secure silos for lime, gypsum, bentonite, and silica sand.

Energy Resources: Large-scale storage for bulk coal and fly ash at power generation sites.

Raw Material Buffers: Surge tanks for crushing and grinding circuits in mineral processing plants.

Product Advantages: Engineered for Extreme Wear

The primary advantage of utilizing Glass-Fused-to-Steel Tanks for mineral assets lies in the physical properties of the fused bond:

Superior Hardness and Abrasion Resistance: The glass coating is fused at temperatures exceeding 800°C, creating a surface that is harder than the minerals themselves. This prevents the interior walls from being "scoured" by abrasive particles during material movement.

Corrosion-Free Longevity: Mineral ores often contain trace elements that can become acidic when exposed to moisture. The inert glass barrier protects the steel substrate from chemical attack and atmospheric rust.

Low-Friction Flow Surface: The smooth, "glass-like" finish reduces wall friction, facilitating consistent "mass flow" and minimizing the risk of material "hanging up" on the walls.

Structural Durability: Our tanks utilize high-tensile steel panels with precision-calculated thicknesses to manage the massive hydrostatic-like pressures of heavy minerals with high safety factors.

Customization: Design Resilience and Aluminum Dome Roofs

Every mineral project is tailored to the specific gravity and flow characteristics of the stored material:

Aluminum Dome Roofs

To ensure a weather-tight envelope and structural integrity, we integrate Aluminum Dome Roofs as a strategic standard. These roofs are vital for:

Dust Control and Environmental Compliance: The dome provides a secure, airtight seal that prevents fine mineral dust from escaping into the environment.

Thermal Regulation: High reflectivity minimizes heat buildup in the silo headspace, preventing the internal moisture migration that causes minerals to clump or harden.

Maintenance-Free Protection: Naturally resistant to industrial emissions and rural humidity, providing a maintenance-free cover that outlasts traditional steel roofs.

Structural Strength: The geodesic design provides immense strength without internal supports, allowing for the installation of heavy top-mounted feeding equipment.

Specialized Discharge Configurations

Depending on the density and particle size, our tanks can be equipped with steep-angle conical bottoms or reinforced flat-bottom designs with vibratory discharge aids to ensure 100% material recovery.

Performance Parameters and Industry Standards

Our Glass-Fused-to-Steel Tanks are designed to meet and exceed the highest international engineering benchmarks:

Rigorous Standards: Compliance with AWWA D103, ISO 28765, and OSHA safety guidelines for industrial silos.

Quality Verification: Every panel undergoes high-voltage "holiday testing" to ensure zero coating defects, providing a perfect barrier against the elements.

Structural Safety Factors: Engineered for high seismic zones and extreme wind loads, ensuring the stability of the vertical column under the weight of high-density ores.

Product Installation and Maintenance

Rapid Modular Installation

The bolt-together nature of GFS panels allows for rapid on-site assembly without the need for field welding or coating. Using a "top-down" jacking system, the tank is constructed at ground level and lifted ring-by-ring, which significantly reduces the construction schedule and enhances site safety.

Maintenance and Operational Continuity

The glass-fused surface is permanent and does not require periodic repainting. This results in an economical lifecycle with virtually no operational interruptions. Unlike traditional coatings, the GFS surface will not flake or peel, maintaining the purity of the stored minerals for decades.

Project Cases: Proven Performance in Industrial Infrastructure

The following non-fictitious projects highlight the reliability of our technology in handling massive material loads:

Sichuan Chengdu Wastewater Treatment Plant Project: This project utilized 16 units of tanks to manage massive volumes of materials, demonstrating the structural stability and modular efficiency required for large-scale vertical containment.

Saudi Municipal Sewage and Industrial Waste Project: Located in an environment of extreme heat and environmental stress, 5 units of these tanks provide a secure and corrosion-free solution.

Hebei Municipal Water and Sewage Infrastructure Project: This project utilized 1 unit of a high-integrity bolted tank to support critical regional utility service, showcasing the reliability of the bolted system.

Company Advantages: Our Core Competency

Our company’s core competitiveness lies in our ability to provide integrated, factory-controlled engineering solutions. We combine the unmatched surface hardness of Glass-Fused-to-Steel with the structural efficiency of Aluminum Dome Roofs. By managing the entire process from design and risk assessment to installation, we ensure that your mineral assets are protected by a system that is built to withstand the most abrasive and high-pressure environments in the world.
