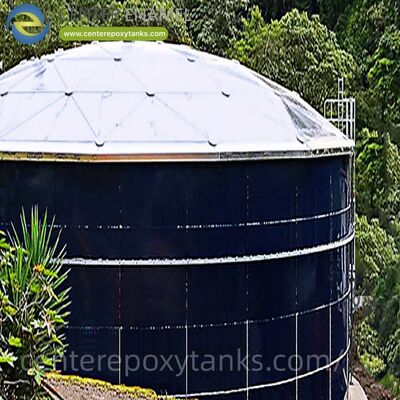

Bolted Steel Tanks as Biomethane Storage Tanks: Ensures secure containment for refined biogas during the energy recovery process.

Bolted Steel Tanks as Biomethane Storage Tanks: Ensures secure containment for refined biogas during the energy recovery process.

As the global transition toward carbon neutrality accelerates, the upgrading of raw biogas into high-purity biomethane has become a critical process. Biomethane, which typically contains over 95% methane, is a direct substitute for fossil-based natural gas and can be injected into the grid or used as vehicle fuel. However, storing this refined gas requires infrastructure that can handle the unique chemical and physical demands of high-purity methane. A biomethane storage tank must provide an absolute gas-tight seal, resist any residual moisture or trace contaminants, and maintain structural integrity under fluctuating pressures. For a renewable energy refinery, the storage unit is the final safeguard before the product enters the commercial market.

To meet these high-integrity requirements, Glass-Fused-to-Steel Tanks (GFS Tanks) are utilized as the primary structural shell for biomethane containment systems. These tanks offer a high-performance, economical solution that far surpasses traditional carbon steel or concrete alternatives. By fusing the structural resilience of steel with the chemical inertness of glass, they provide a corrosion-free containment system designed for the long-term reliability of green energy infrastructure.

Product Application: Infrastructure for the Gas-to-Grid Value Chain

Our GFS Biomethane Storage Tanks are engineered to support the final stages of the gas upgrading process:

Refined Gas Buffering: Serving as a surge tank between the upgrading unit (such as membrane separation or water scrubbing) and the grid injection point.

Virtual Pipeline Hubs: Secure containment for biomethane prior to compression and transport via tube trailers.

Industrial Fuel Reservoirs: Providing on-site storage for facilities that utilize biomethane for thermal energy or high-efficiency cogeneration.

Agricultural Energy Hubs: Storing refined fuel for farm-based vehicle fleets and machinery.

Product Advantages: Gas-Tightness and Inert Protection

The primary advantage of selecting Glass-Fused-to-Steel Tanks for biomethane storage lies in the superior properties of the glass-steel bond:

Absolute Gas Integrity: Refined biomethane is a valuable asset; leakage is both an economic loss and a safety risk. Our bolted tanks utilize specialized, high-elasticity industrial sealants and precision-engineered gaskets to ensure a gas-tight environment.

Resistance to Residual Contaminants: Even refined gas may contain trace amounts of moisture or oxygen. The inert glass surface provides a permanent shield against internal oxidation, ensuring the tank remains corrosion-free.

Ultra-Smooth Interior: The non-porous finish prevents the accumulation of any micro-particulates, ensuring that the high-purity gas remains free from contamination before it reaches the end-user.

Structural Safety Factors: Designed to handle the dynamic pressures associated with gas buffering, the high-tensile steel panels offer a robust safety margin against physical deformation.

Customization: Integrated Solutions and Aluminum Dome Roofs

Biomethane storage requires a highly specialized configuration to ensure environmental safety and process efficiency:

Aluminum Dome Roofs

To provide a total weather-tight seal and protect the sensitive gas-handling equipment, we integrate Aluminum Dome Roofs as a strategic standard. These roofs are critical for:

Prevention of External Contamination: The geodesic dome provides a secure seal against rain, dust, and pests, ensuring that the external environment does not interfere with the gas storage process.

Support for Gas Management Equipment: The high strength-to-weight ratio of the aluminum dome allows it to support top-mounted pressure relief valves, vacuum breakers, and monitoring sensors without internal columns.

Reflectivity and Temperature Stability: High reflectivity helps minimize solar heat gain in the tank, reducing pressure fluctuations caused by gas expansion and contraction.

Specialized Fittings and Nozzles

We provide custom-designed stainless steel nozzles and manways specifically for gas service, ensuring that every entry point into the tank maintains the same level of integrity as the GFS shell itself.

Performance Parameters and Industry Standards

Our Glass-Fused-to-Steel Tanks are engineered to exceed the world’s most stringent technical benchmarks:

Global Compliance: Meeting AWWA D103, ISO 28765, and OSHA safety guidelines for industrial gas storage.

Quality Verification: Every panel undergoes high-voltage "holiday testing" to ensure zero coating defects, providing a perfect barrier against the elements.

Risk Assessment: Precision-calculated for dynamic loads, seismic requirements, and extreme wind speeds, ensuring the stability of the system in all operating conditions.

Product Installation and Maintenance

Rapid Modular Installation

The prefabricated nature of GFS panels allows for rapid on-site assembly without the need for field welding or painting. Using a "top-down" jacking system, the tank is constructed at ground level and lifted ring-by-ring. This method significantly reduces construction timelines and minimizes operational downtime during facility upgrades.

Minimal Maintenance and Operational Continuity

The glass-fused surface is permanent and does not require periodic repainting. This results in an economical lifecycle with virtually no operational interruptions. Maintenance is largely limited to external seal inspections, ensuring that your gas refining operation remains constant.

Project Cases: Proven Performance in Global Infrastructure

The reliability of our technology in managing critical energy loads is demonstrated in these non-fictitious projects:

Sichuan Chengdu Wastewater Treatment Plant Project: This project utilized 16 units of tanks to manage massive volumes of materials, proving the structural stability required for large-scale vertical containment.

Saudi Municipal Sewage and Industrial Waste Project: In a region of extreme heat and environmental stress, 5 units of these tanks were installed to provide a durable, corrosion-free solution.

Hebei Municipal Water and Sewage Infrastructure Project: This project utilized 1 unit of a high-integrity bolted tank to support critical regional utility service, showcasing the reliability of the bolted system.

Company Advantages: Our Core Competency

Our company’s core competitiveness lies in our ability to deliver high-integrity containment solutions for the advanced energy sector. We combine the chemical durability of Glass-Fused-to-Steel with the structural efficiency of Aluminum Dome Roofs. By providing an integrated solution—from initial gas-flow modeling and risk assessment to final installation—we ensure that your biomethane assets are protected by a system built to maximize recovery and ensure long-term operational safety.
