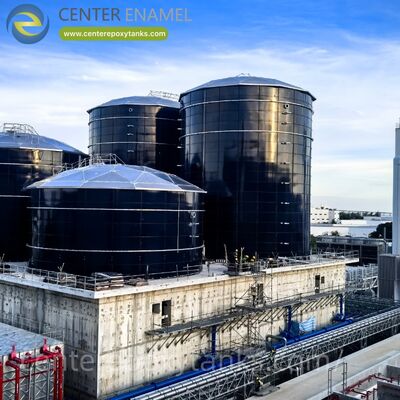

Bolted Steel Tanks as Powder Silos: Features smooth internal surfaces and steep hopper bottoms for efficient powder discharge.

Bolted Steel Tanks as Powder Silos: Features smooth internal surfaces and steep hopper bottoms for efficient powder discharge.

In industrial manufacturing, the storage and handling of fine powders—such as starch, flour, chemical additives, and pharmaceutical precursors—require a vessel that addresses the unique physics of cohesive materials. Powders are notorious for flow challenges; they are prone to "bridging" (where material forms an arch over the outlet) and "rat-holing" (where only the center column of material discharges). These issues are often exacerbated by internal surface roughness or moisture ingress, which increases the cohesiveness of the powder. A powder silo must be a precision-engineered unit that guarantees a sterile environment, absolute moisture exclusion, and a high-slip internal surface to ensure 100% material recovery.

Traditional concrete silos or painted steel bins often fail due to surface friction and the risk of coating flakes contaminating the product. To provide a superior and economical solution, the industry has standardized on Glass-Fused-to-Steel Tanks (GFS Tanks). These silos offer a factory-certified, corrosion-free environment with a glass-like finish that is specifically designed to facilitate the flow of difficult, fine-particle solids.

Product Application: Precision Storage for Fine Particles

Our GFS Powder Silos are engineered for sectors where material purity and flow consistency are non-negotiable:

Food and Beverage: Storage for flour, sugar, cocoa powder, and starch.

Chemical and Specialty Manufacturing: Containment for pigments, plastic resins, and chemical catalysts.

Pharmaceuticals: Hygienic silos for bulk active ingredients and excipients.

Construction Chemicals: Storage for fine additives used in dry-mix mortar and specialized coatings.

Product Advantages: Frictionless Flow and Purity

The primary advantage of selecting Glass-Fused-to-Steel Tanks for powders lies in the physical properties of the glass-steel bond:

Ultra-Smooth, Low-Friction Surface: The glass coating provides a "frictionless" internal finish. This is critical for powders, as it minimizes the mechanical interlocking of particles against the silo wall, significantly reducing the risk of bridging.

Total Moisture and Vapor Barrier: Fine powders are highly sensitive to humidity. The inorganic glass surface and specialized industrial sealants create a hermetic seal, preventing atmospheric moisture from causing powders to clump or hydrate.

Contamination-Free Environment: The glass surface is chemically inert and harder than the powders it stores. It will not peel, flake, or leach, ensuring the final product remains 100% pure—essential for food and pharmaceutical applications.

Corrosion-Free Longevity: The glass barrier is permanent and immune to chemical powders, ensuring the tank remains corrosion-free without the need for periodic repainting.

Customization: Steep Hoppers and Aluminum Dome Roofs

Powder storage requires a specialized structural configuration to ensure total discharge and environmental stability:

Steep-Angle Hopper Bottoms

Unlike flat-bottom tanks, our powder silos are customized with precision-engineered steep-angle conical bottoms. These hopper bottoms are designed based on the specific "angle of repose" of the powder, ensuring gravity-assisted flow and eliminating stagnant zones at the base of the silo.

Aluminum Dome Roofs

To ensure a total climate seal and support critical air-handling equipment, we integrate Aluminum Dome Roofs as a strategic standard. These roofs are critical for:

Condensation Control: High reflectivity minimizes solar heat gain in the headspace, reducing the "sweating" that causes powders to stick to the upper walls.

Equipment Support: The geodesic design provides immense strength to support top-mounted dust collectors, pressure relief valves, and explosion-venting panels without internal columns.

Maintenance-Free Protection: Naturally resistant to industrial dust and moisture, providing a maintenance-free cover for the life of the silo.

Performance Parameters and Industry Standards

Our Glass-Fused-to-Steel Tanks are engineered to meet the world’s most stringent technical benchmarks:

Quality Compliance: Meeting AWWA D103, ISO 28765, and OSHA safety guidelines.

Food and Pharma Grade: The internal glass coating is certified to international food-grade standards, ensuring zero chemical interaction with human-consumption products.

Structural Safety: Precision-calculated for dynamic powder loads and seismic requirements, utilizing high-tensile steel to manage the intense pressures of vertical powder columns.

Product Installation and Maintenance

Rapid Modular Installation

The prefabricated nature of GFS panels allows for rapid on-site assembly without the need for field welding or painting. Using a "top-down" jacking system, the silo is constructed at ground level and lifted ring-by-ring. This method significantly reduces construction timelines and allows for clean, dust-free installation within existing factory footprints.

Maintenance and Operational Continuity

The glass-fused surface is permanent and does not require periodic repainting. This results in an economical lifecycle with virtually no operational interruptions. Maintenance is limited to external inspections and seal checks, ensuring that the processing line remains operational 24/7.

Project Cases: Proven Performance in Industrial Infrastructure

The reliability of our technology in managing complex material loads is demonstrated in these non-fictitious projects:

Sichuan Chengdu Wastewater Treatment Plant Project: This project utilized 16 units of tanks, proving the structural stability and modular efficiency required for large-scale material containment and processing.

Saudi Municipal Sewage and Industrial Waste Project: In a region of extreme heat and environmental stress, 5 units of these tanks were installed to provide a durable, corrosion-free solution.

Hebei Municipal Water and Sewage Infrastructure Project: This project utilized 1 unit of a high-integrity bolted tank to support critical regional utility service, showcasing the reliability of the bolted system.

Company Advantages: Our Core Competency

Our company’s core competitiveness lies in our ability to solve the "flow and purity" dilemma of industrial powders. We combine the unmatched surface smoothness of Glass-Fused-to-Steel with the environmental protection of Aluminum Dome Roofs. By providing an integrated solution that includes steep-angle hopper design and rigorous risk assessment, we ensure that your powder assets are stored in a system that maximizes discharge efficiency and guarantees product integrity.
