Biogas Storage Tank With Double Membrane Gas Holder: A Reliable Solution for Renewable Energy

As global investments shift decisively toward green energy and circular economies, biogas has emerged as a cornerstone renewable fuel source derived from agricultural waste, municipal wastewater treatment, industrial food processing, and landfill sites. However, because biological gas production fluctuates continuously based on feedstock variations and digester temperatures, maintaining a stable, safe, and pressurized gas supply requires advanced containment infrastructure.

The Biogas Storage Tank with Double Membrane Gas Holder represents the pinnacle of modern gas containment engineering. Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) combines decades of specialized manufacturing expertise with high-frequency membrane welding technology to deliver world-class, durable, and highly efficient double membrane gas storage systems tailored to global renewable energy projects.

Unlike rigid fixed-volume steel or concrete gasometers, a double membrane gas holder utilizes a dynamic, multi-layer flexible architecture designed to adapt seamlessly to shifting gas volumes:

1. Bottom Membrane: Seals the lower foundation or tank floor, establishing a secure baseline containment barrier.

2. Inner Membrane: Directly confines the raw biogas. It expands and contracts dynamically depending on the volume of gas generated by the anaerobic digester.

3. Outer Membrane: Maintained constantly under controlled air pressure by an automated blower system, the outer shell acts as an impenetrable weather shield protecting the system against wind loads, heavy snow, and ultraviolet (UV) radiation.

4. Inter-Membrane Air Chamber: The space between the inner and outer membranes functions as a pressure regulation zone. A constant-pressure control cabinet automatically adjusts inflation or exhaustion to maintain steady, reliable delivery pressure for downstream combined heat and power (CHP) engines or upgrading units.

The flexible membrane design effortlessly accommodates large volume fluctuations, acting as an optimal buffer between continuous anaerobic digestion and intermittent gas consumption.

Center Enamel constructs its gas holder membranes using high-strength, specialized PVC-coated polyester fabrics treated with advanced additives.

• H₂S and Methane Defense: Engineered with low methane permeability and exceptional resistance against hydrogen sulfide ($H_2S$) and moisture condensation commonly present in raw biogas.

• Weather and UV Proofing: The outer shell features high-grade UV stabilizers and flame-retardant properties (B1 rating), ensuring a long operating lifespan across extreme environmental temperatures ranging from $-40^\circ\text{C}$ to $+70^\circ\text{C}$.

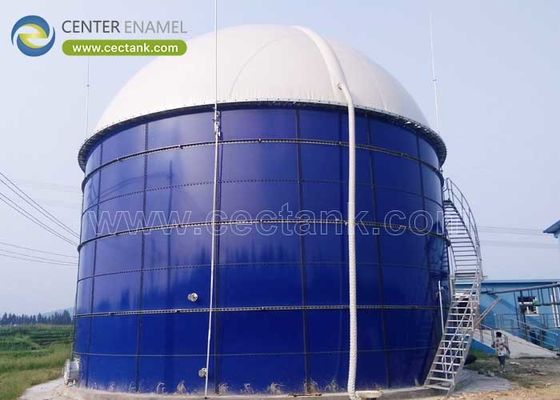

Double membrane gas holders can be mounted directly onto existing concrete foundations, ground-level floor rings, or integrated seamlessly atop industrial bolted steel tanks (such as Glass-Fused-to-Steel or fusion-bonded epoxy tanks). Their lightweight, foldable configuration allows high-density packing into standard shipping containers, drastically cutting international freight expenses.

Engineering Note: To ensure complete operational safety, Center Enamel equips every double membrane storage system with integrated over-pressure/under-pressure protection devices, precise ultrasonic or laser liquid/volume level indicators, and automated safety valves.

A: The system utilizes a continuous air blower and a constant-pressure control cabinet to regulate the air pressure inside the inter-membrane chamber. This pressure presses down uniformly on the inner gas storage membrane, ensuring a consistent and stable delivery pressure to downstream utilization equipment regardless of storage volume.

A: Yes. Double membrane gas holders offer exceptional versatility and can be mounted directly onto concrete structures, ground ring foundations, or installed as specialized roofs on top of industrial bolted steel liquid tanks (such as GFS or epoxy-coated anaerobic digesters).

A: The membranes are crafted from heavy-duty, high-tensile polyester fabrics coated with specialized polymers (such as PVC/PELD/FPP) that feature high tear resistance, low gas permeability, and robust resistance against hydrogen sulfide ($H_2S$), moisture, and microbial degradation.

A: Designed for long-term industrial deployment, these systems feature a robust service life backed by high-frequency welded seams and durable protective coatings. Maintenance is minimal, primarily involving routine inspections of the blower units, control valves, pressure relief systems, and electronic monitoring sensors.
